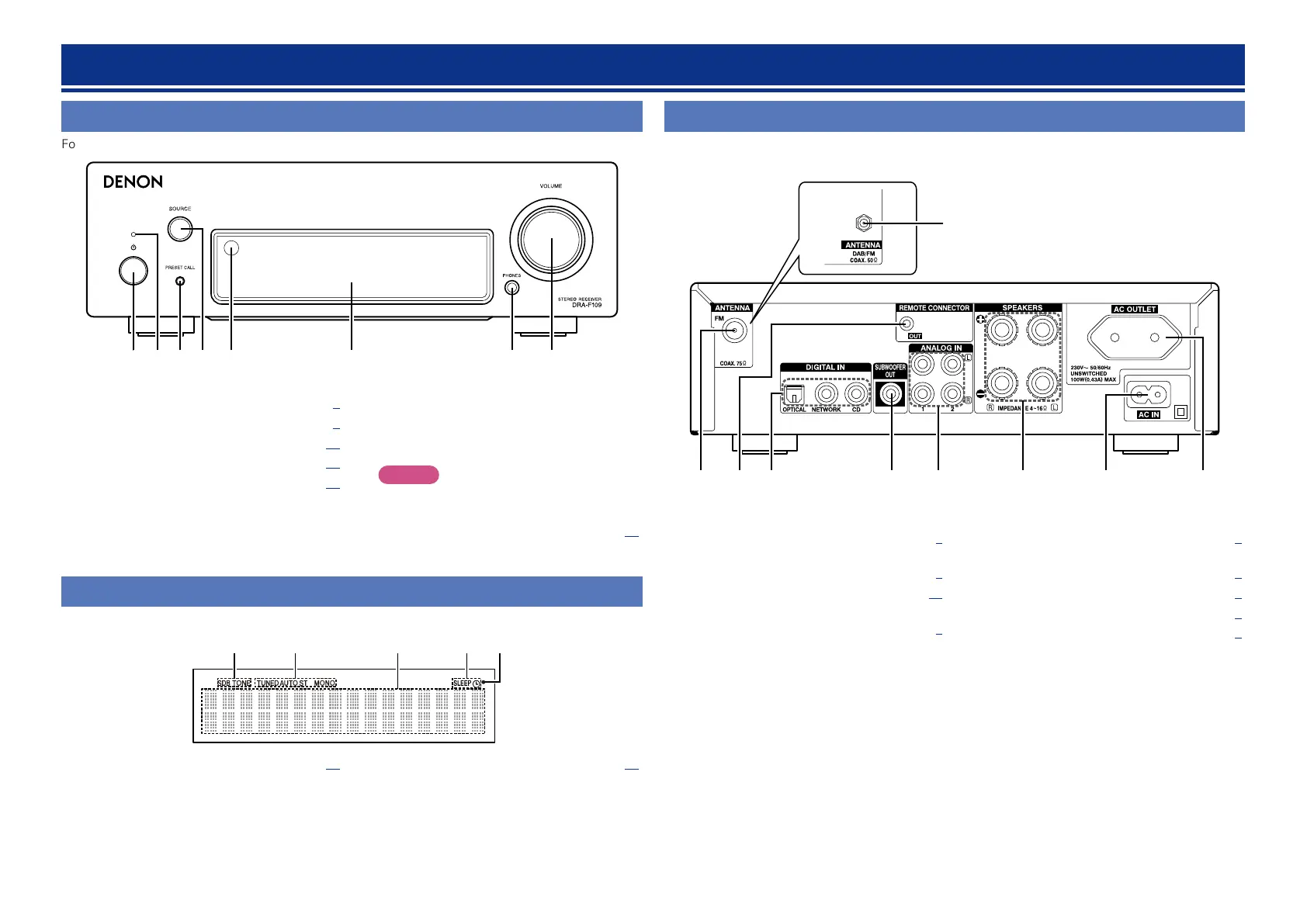

Part names and functions
Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
w rq e yt u i
q Power operation button (X) ························ (9)
w Power indicator ············································ (9)
e PRESET CALL button ································· (13)
r SOURCE knob ············································· (11)
t Remote control sensor ······························ (26)
y Display
u Headphones jack (PHONES)
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
i VOLUME knob ············································ (11)
Display
For buttons not explained here, see the page indicated in parentheses ( ).
q w re t
q Tone indicators ··········································· (11)
SDB: Lights when the super dynamic bass
function is set to “ON”.
TONE: Lights when the tone (bass/treble) is
being adjusted.
w Tuner reception mode indicators ············· (12)
e Information display
Various information is displayed here.
r Timer operation indicator
t Remote control signal reception indicator
Rear panel
For buttons not explained here, see the page indicated in parentheses ( ).
te u iyrwq
For UK model only
q
For UK model only
q FM antenna terminal (ANTENNA)
(for continental model only) ···························· (6)
DAB/FM antenna terminal (ANTENNA)
(for UK model only) ········································· (6)
w REMOTE CONNECTOR jack ······················· (21)
e Digital audio connectors
(DIGITAL IN) ·················································· (5)
r Subwoofer connector
(SUBWOOFER OUT) ····································· (4)
t Analog audio connectors
(ANALOG IN) ················································· (5)
y Speaker terminals (SPEAKERS) ·················· (4)
u AC inlet (AC IN) ············································· (7)
i AC outlet (AC OUTLET) ································ (7)
