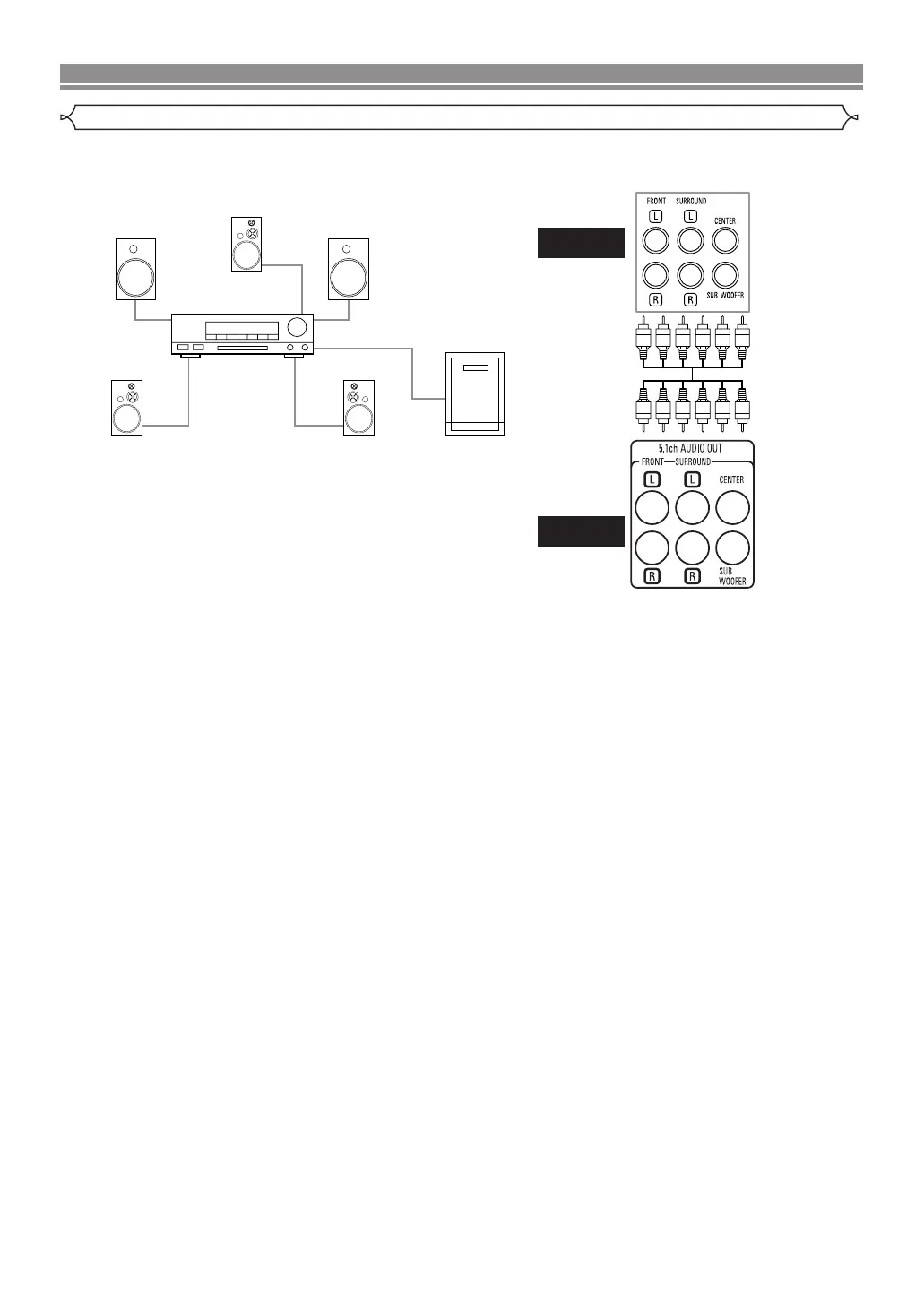

Connection to 5.1-channel Surround Sound System
Analog 5.1-channel audio signals can be output from the DVD player.
The multichannel audio signals recorded in packed PCM and the multichannel Super Audio CD can be played
back when an AV amplifier equipped with analog 5.1-channel audio inputs is connected.
AUDIO
DVD
To 5.1-channel
Audio Input
Jacks
AV amplifier
with
5.1-channel
audio input jacks
5.1ch
AUDIO OUT
Front speaker
(left)
Surround
speaker
(left)
Center speaker
Subwoofer
Surround
speaker
(right)
Front speaker
(right)
Speaker
Cable
(commercially
available)
NOTES:
• For 5.1-channel connections, set ANALOG AUDIO to MULTI CHANNEL in the setup mode and adjust Speaker Configuration,
DELAY TIME and CHANNEL LEVEL settings (refer to pages 29-31).
• You can enjoy high-quality analog sound by cutting off the video signal. Press the PURE DIRECT button on the front panel.
CONNECTIONS
E61E2/E3ED_EN.qx3 05.7.7 17:03 Page 14

Denon DVD-1920 Specifications

Audio Outputs

analog output	1 set (L/R)
multi channel output	1 set (Front L/R, Center, Surround L/R, Subwoofer)
optical digital output	1
coaxial digital output	1
HDMI output	1

CD Audio Specifications

frequency response	4 Hz - 20 kHz
signal-to-noise ratio	115 dB
dynamic range	98 dB
total harmonic distortion	0.004%

Video Outputs

composite video output	1.0 Vp-p (with 75 ohms load)
S-Video output Y	1.0 Vp-p (with 75 ohms load)
S-Video output C	0.286 Vp-p
component video output Y	1.0 Vp-p (with 75 ohms load)
component video output Pb/Cb	0.648 Vp-p (with 75 ohms load)
component video output Pr/Cr	0.648 Vp-p (with 75 ohms load)
HDMI output version	1.1

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	20 W
standby power consumption	1 W
dimensions (W x H x D)	435 x 75 x 310 mm
dimensions (W x H x D) inches	17-3/32 x 2-61/64 x 12-13/32 inches
weight	2.6 kg
weight in pounds	5.72 lbs
