• Method 1 DVD Player + TV with Video Input Jack
• Method 2 DVD Player + TV with S-Video Input Jack
• Method 3 DVD Player + TV with AV1 Jack (21-pin Scart jack) or Component Video Jacks
NOTES:
• Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due
to the copy protection system.
• S-Video output connector
The video signals are divided into colour (C) and brightness (Y) signals, achieving a clearer picture.
If the TV is equipped with an S-Video input connector, we recommend connecting it to this unit’s S-Video output connector
using a commercially available S-Video connection cord.
HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS
Even if your TV does not have RCA type audio and video input jacks, it is still possible to connect this DVD
player to your TV’s 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator (not includ-
ed). Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and
then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial antenna termi-
nal on your TV. Follow the instruction supplied with the RF Modulator for more details.
If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that
cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator
(usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.
NOTE:
• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s antenna terminal
through an RF Modulator.

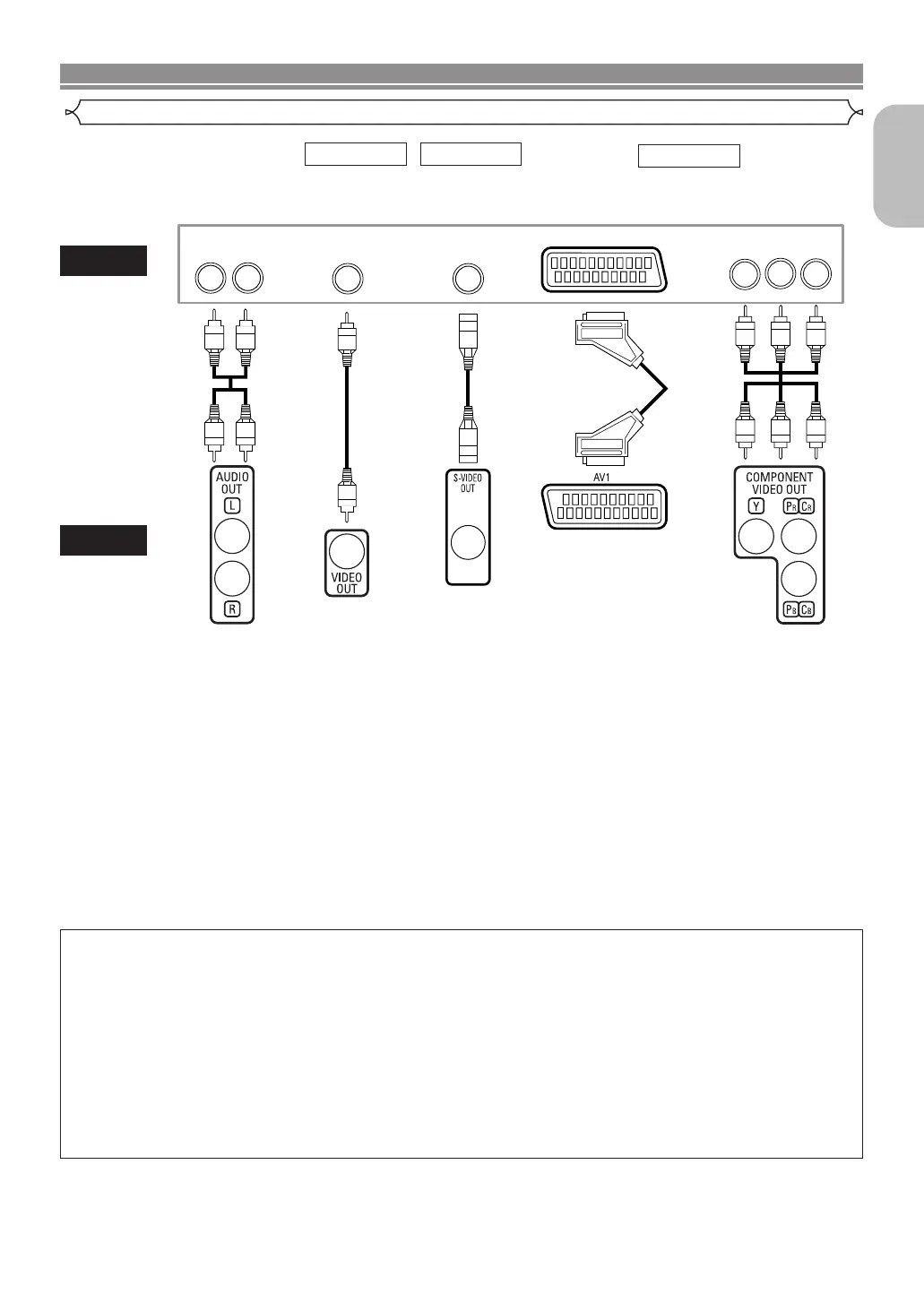

Connection to a TV (for video)
CONNECTIONS
DVD
S-VIDEO IN
21-pin Scart jack
VIDEO IN
LR
CB/PBYCR/PR
COMPONENT
VIDEO IN
TV
Good
Basic
Audio
Better
Best picture
Video Cable
(supplied)
S-Video Cable
(commercially
available)
Euro
Audio/Video Cable
(commercially
available)
Method 1 Method 2
Method 3
Component
Video Cable
(commercially
available)
AUDIO OUT
(analog)
VIDEO OUT
S-VIDEO OUT AV1 OUT
COMPONENT
VIDEO OUT
Audio Cable
(supplied)
or
E61E2/E3ED_EN.qx3 05.7.7 17:03 Page 15

Denon DVD-1920 Specifications

Audio Outputs

analog output	1 set (L/R)
multi channel output	1 set (Front L/R, Center, Surround L/R, Subwoofer)
optical digital output	1
coaxial digital output	1
HDMI output	1

CD Audio Specifications

frequency response	4 Hz - 20 kHz
signal-to-noise ratio	115 dB
dynamic range	98 dB
total harmonic distortion	0.004%

Video Outputs

composite video output	1.0 Vp-p (with 75 ohms load)
S-Video output Y	1.0 Vp-p (with 75 ohms load)
S-Video output C	0.286 Vp-p
component video output Y	1.0 Vp-p (with 75 ohms load)
component video output Pb/Cb	0.648 Vp-p (with 75 ohms load)
component video output Pr/Cr	0.648 Vp-p (with 75 ohms load)
HDMI output version	1.1

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	20 W
standby power consumption	1 W
dimensions (W x H x D)	435 x 75 x 310 mm
dimensions (W x H x D) inches	17-3/32 x 2-61/64 x 12-13/32 inches
weight	2.6 kg
weight in pounds	5.72 lbs
