Denon RCD-N8 Service Manual

13
NOTE HANDLING AND REPLACEMENT OF THE LASER PICK-UP
1. Protection of the LD
Short a part of the LD circuit by soldering. After connection to a circuit, remove the short solder.
2. Precautions when handling the laser CD mechanism
• Handle the laser pick-up so that it is not exposed to dust.
• Do not leave the laser pick-up bare. Be sure to cover it.
• If dust adheres on lens of the pick-up, blow it off with a blower brush.
• Do not shock the laser pick-up.
• Do not watch the light of the laser pick-up.
3. Cautions on assembling and adjustment
• Be sure that to the bench, jig, head of soldering iron (with ceramic) and measuring instruments are well grounded.
• Workers who handle the laser pick-up must be grounded.
• The nished mechanism (prior to anchoring in the set) should be protected against static electricity and dust.
The mechanism must be stored that damaging outside forces are not received.
• When carrying the nished mechanism, hold it by the chassis body
• For proper operation, storage and operating environment should not contain corrosive gases. For example H2S, SO2,
NO2, CI2 etc. In addition storage environment should not have materials that emit corrosive gases especially from
silicic, cyanic, formalin and phenol group. I the mechanism or the set, existence of corrosive gases may cause no
rotation in motor.
4. Determining whether the laser pick-up is defective
• Check the Iop(Laser drive current). Check lop in "SPECIAL MODE". (Refer to 23 page.)
• If the present Iop (current) value becomes more than 50mA, replace the Traverse unit with a new one.
• No mechanical adjustment is necessary after the replacement.

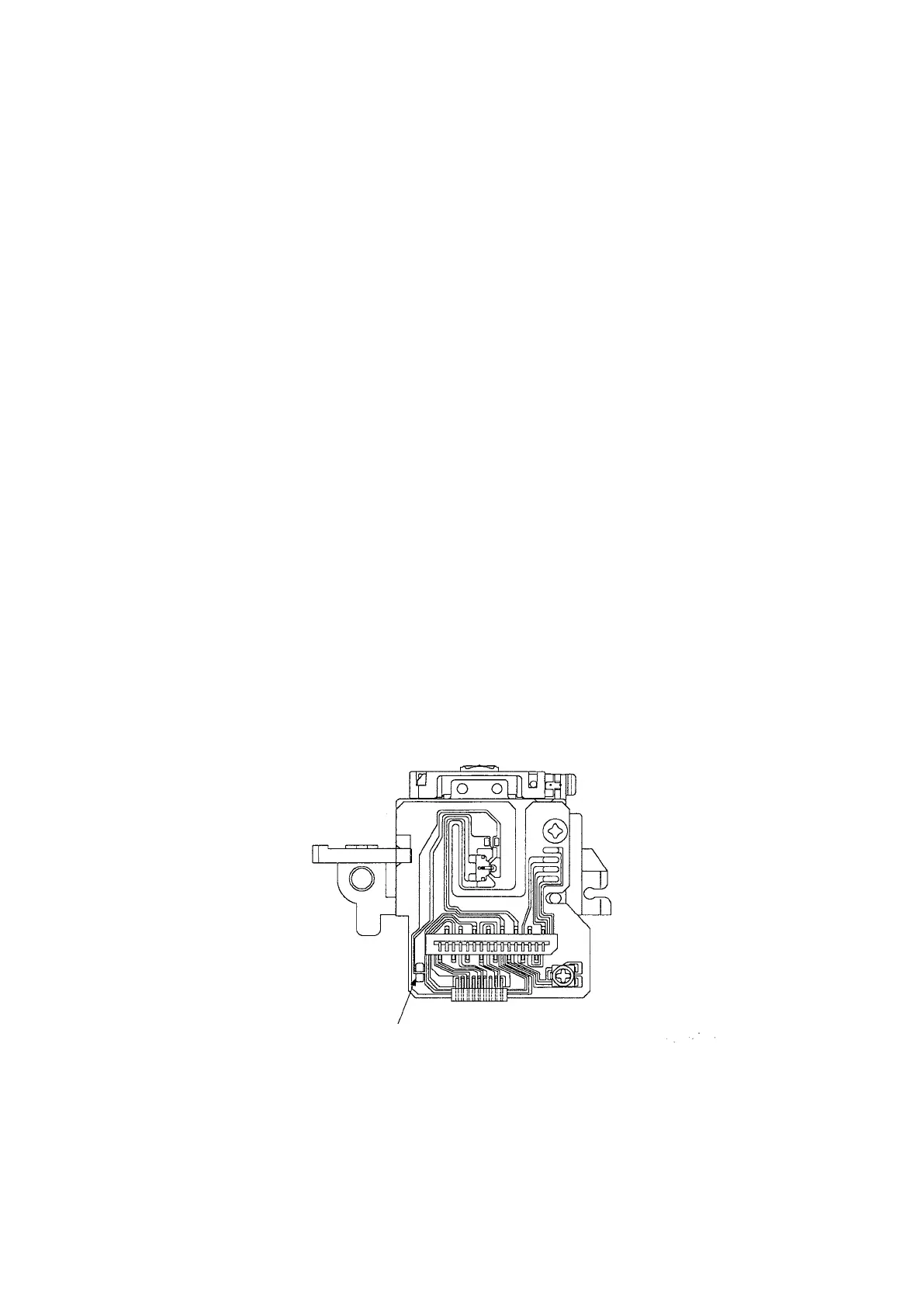

Protective soldering place for laser diode.

Denon RCD-N8 Specifications

General

Remotely operated	Yes
Security algorithms	WPS
Supported radio bands	FM, VHF
Built-in storage media	No
Audio formats supported	MP3
Internet radio services supported	iDevice, iTunes
Network streaming services supported	-
Product color	White
RMS rated power	130 W
Wi-Fi standards	802.11b, 802.11g
Digital audio optical out	1
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	50 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4000 g
