Denon RCD-N8 Service Manual

67

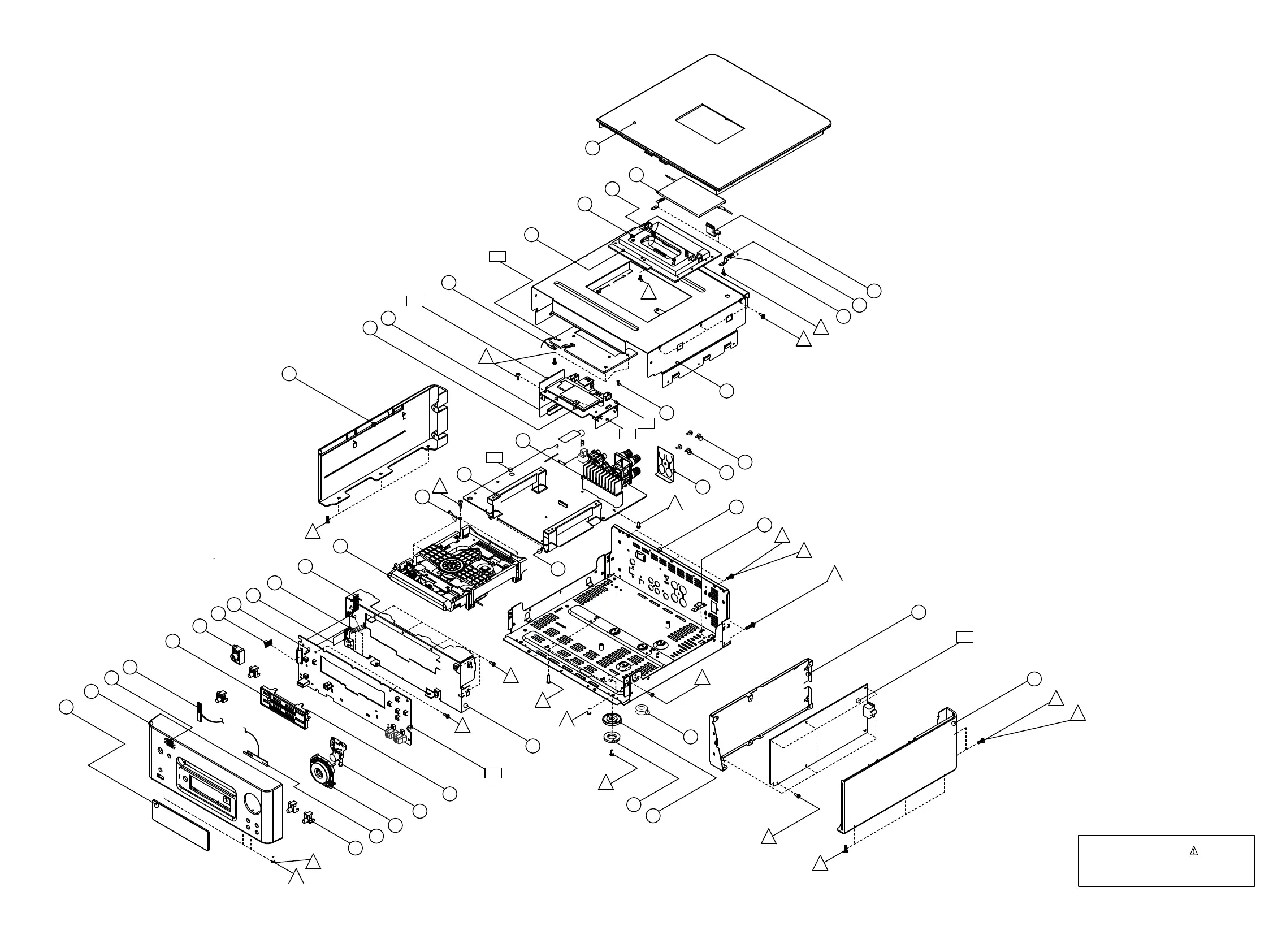

EXPLODED VIEW
1
2
3
4
6
7
P1
9
42
10
12
13
40
38
37
36
35
31
32
P7
30
29
28
27
26
11
17
18
P4
16
15
14
20
19
25
P5
P6
P3
21
24
23
22
34
33
P2
39
8
S1 *4
S3 *4
S2 *3
S1 *8
S1 *6
S2 *3
S1 *7
S1 *3
S3 *4
41
S1 *6
S4 *3
S1 *2
S5 *12
16
43
S1 *4(for WH)
S1 *2
S6 *4(for BK)
S1 *3(for WH model)
S6 *3(for BK model)
S1 *4(for WH model)
S6 *4(for BK model)
S2 *8
S1 *8
44
45
46
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。

Denon RCD-N8 Specifications

General

Remotely operated	Yes
Security algorithms	WPS
Supported radio bands	FM, VHF
Built-in storage media	No
Audio formats supported	MP3
Internet radio services supported	iDevice, iTunes
Network streaming services supported	-
Product color	White
RMS rated power	130 W
Wi-Fi standards	802.11b, 802.11g
Digital audio optical out	1
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	50 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4000 g
