106
Disassembling
Completely loosen the tension of rubber tracks.
Lift the machine body by working device.

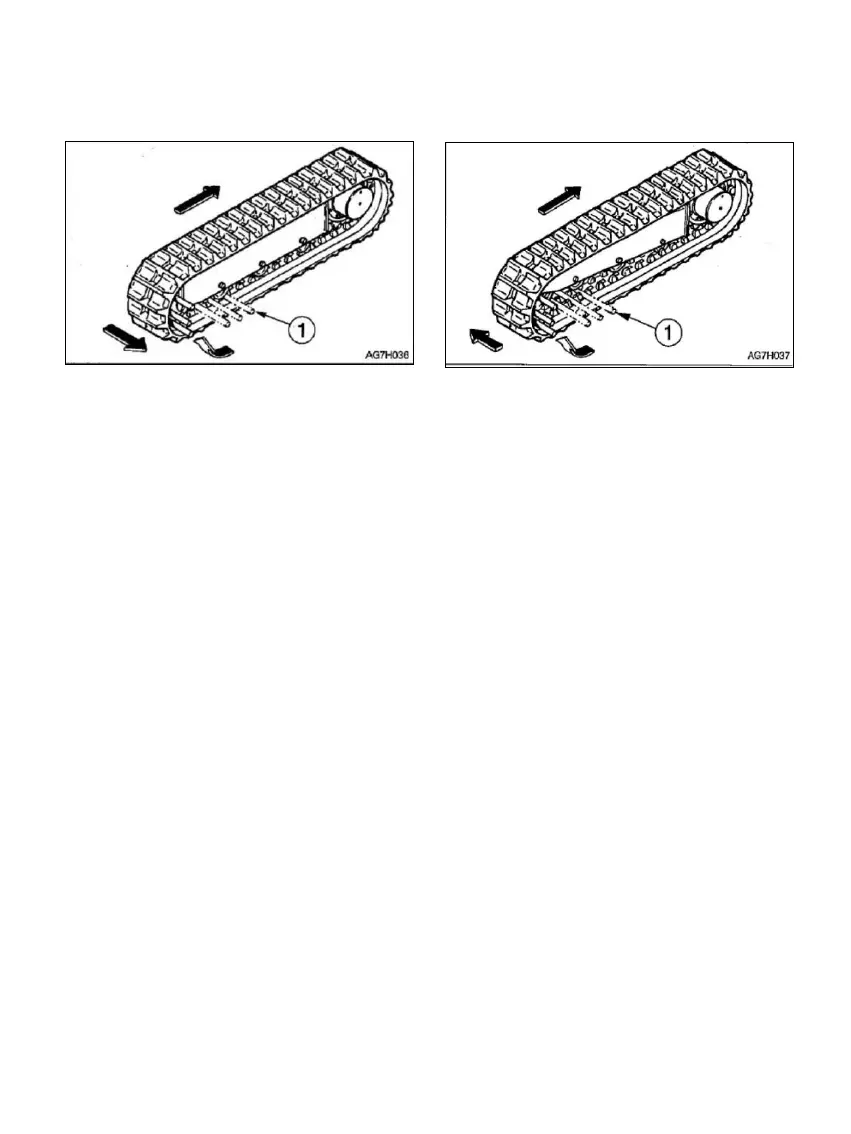

Place a steel tube (1) in the rubber track and rotate the sprocket slowly towards opposite
direction.
Rotate the sprocket till the steel tube (1) closes to the tensioner and the rubber track is lifted off
the tensioner and then stop the rotation of sprocket.
Laterally slide the rubber track to take out it from track frame. Take out the other rubber track by
same procedure.
Installation
Lift the machine body by working device.
Place rubber track on the sprocket.
Place a steel tube (1) in the rubber track and rotate the sprocket slowly towards opposite
direction.
Rotate the sprocket till the steel tube (1) closes to the tensioner and the rubber track is lifted off
the tensioner and then stop the rotation of sprocket.
Slide inward the rubber track to install it onto the tensioner and then pull out the steel tube.
Check rubber track for secure installation on sprocket and tensioner.
Tension the rubber track to standard tension.
Install the other rubber track by same procedure.
Maintenances during Long-Time Parking
If it’s necessary to park the machine for ≥30 days, please park the machine indoors. If it’s
necessary to park outdoors, please park the machine on a wood-paved level ground and cover
the machine by water-proof cap to keep dry.
Clean the machine.
