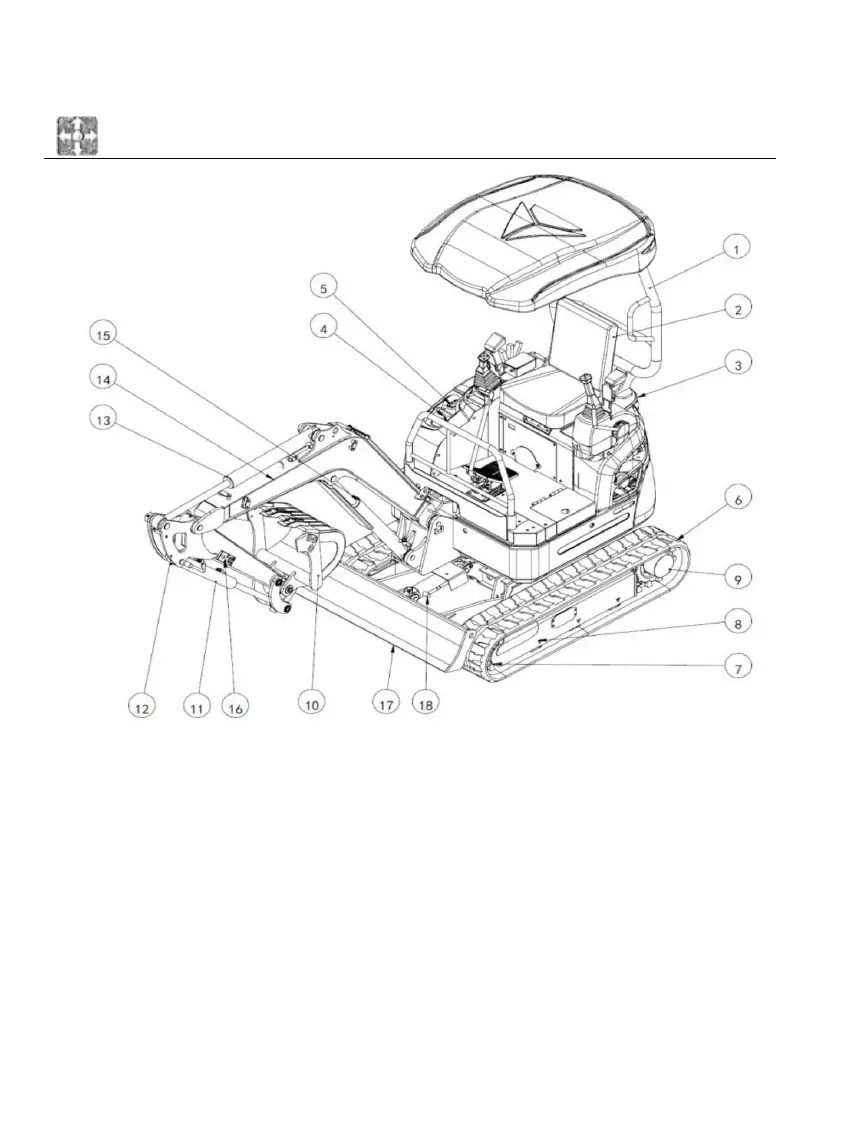

Controls
1.
Top cover
6.
Tracks
Bucket cylinder
2.
Seat
7.
Drive wheel
Bucket arm
3.
Engine hood
8.
Track roller
Bucket arm cylinder
4.
Fuel tank
9.
Traveling motor
Boom
5.
Hydraulic oil tank
10.
Bucket
Boom cylinder
Auxiliary hydraulic
pipeline
Bulldozing blade
Bulldozing blade
cylinder
