Step 6: External Camera Installation
Overview
There are 6 External Camera Package options for the DVM-800. Choose the instruction
that matches the camera option you have purchased.
Option 1: 12XC Camera & Backseat Camera - with 2 Cables

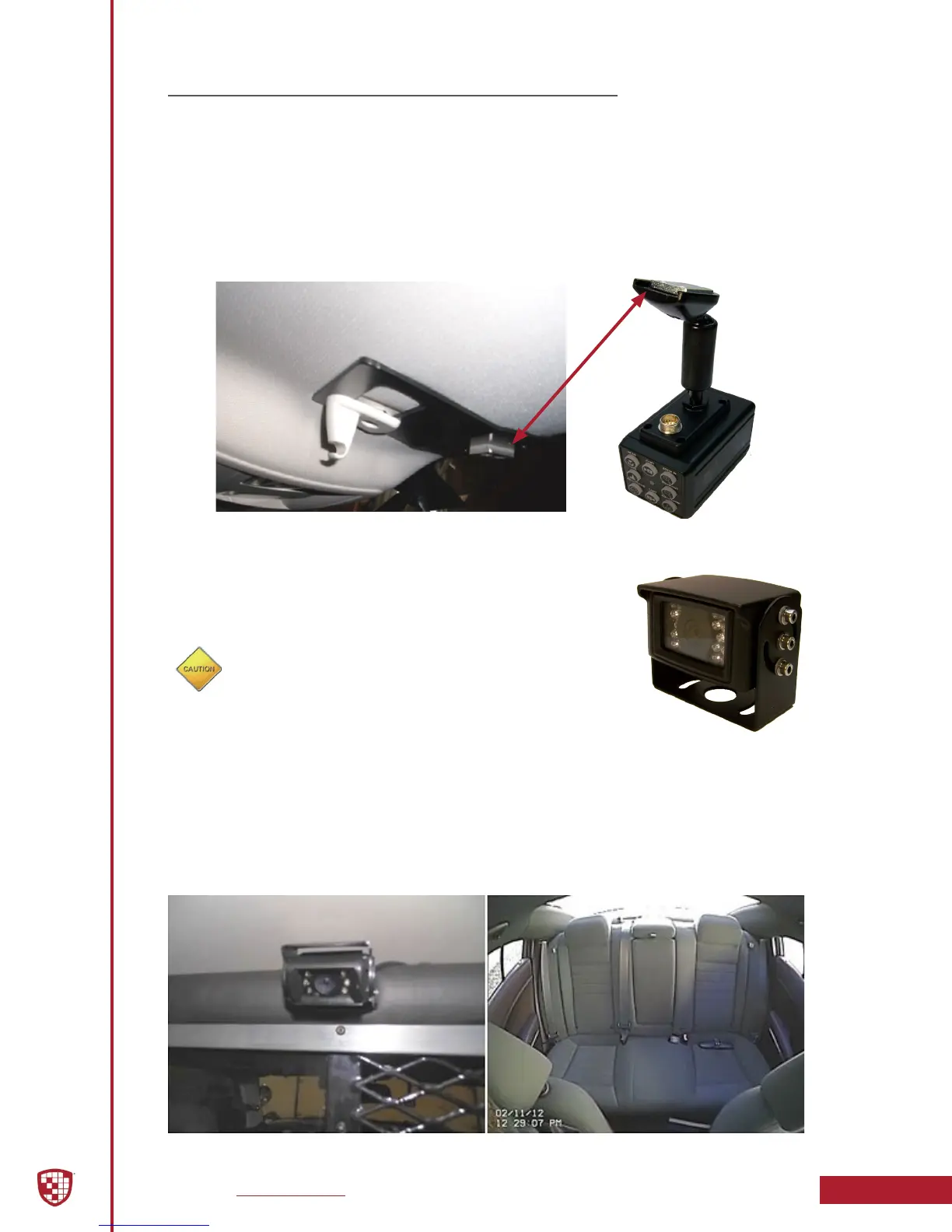

1. Attach the visor mount through the visor clip and attach front camera
to the mounting plate as shown below. Connect the 12XC camera cable
(008-01442-00) to the DVM-800 CAM1 input.
2. Determine a mounting location for the backseat camera.
The example below has the camera mounted in
the center of the cage. This gives a wide angle view of
the entire back seat. Secure the camera using the
supplied hardware.
DO NOT install the backseat camera behind
plexiglass (or glass); The infrared lights will reect back
into the camera lens and completely obscure any video.
3. If the camera is to be mounted facing the rear of the
vehicle, adjust the image switch on the back of the
camera to the Reverse position.
4. Attach the backseat camera cable (008-01390-00) to the DVM-800
CAM 2 input. Secure extra cable in the headliner away from any other
existing cabling and/or airbags. Leave slack in the cable as a service
loop and for DVM adjustment; then begin routing the cable to the
backseat area. To conceal the cable it may be necessary to loosen
interior trim and other components within the vehicle.
