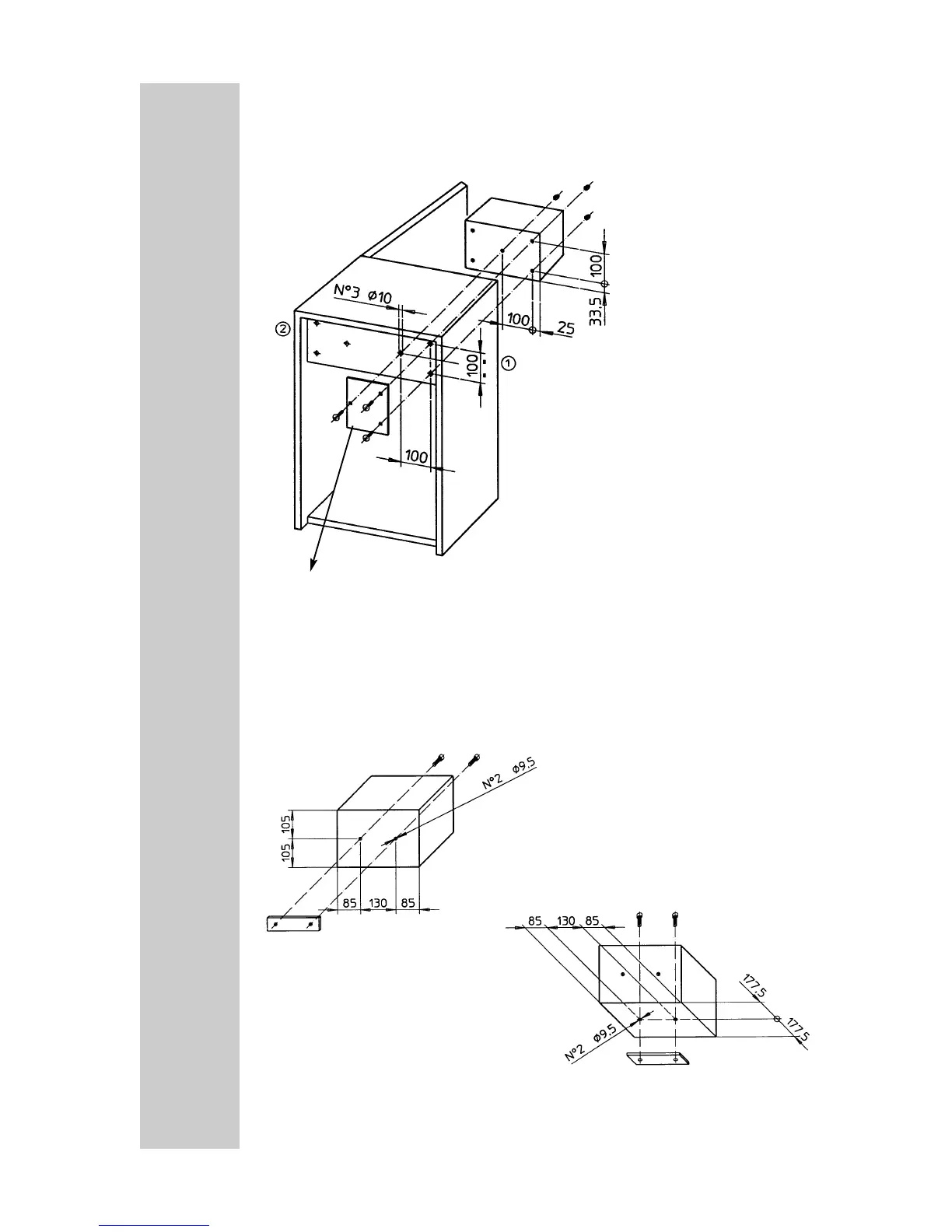

Mounting a miniSafe in RH355LD/ RH455LD
SKE160
SKE 180
18
Drawing picture for right
hand hinge (1).
By left hand hinge, 10mm
drilling on the opposite
(2).
3 cap nuts M8
3 mushroom head square neck bolt
12.0
Fixing underside
Fixing rear side
