Lighting (ca. 7,6V) and Infrared sensors

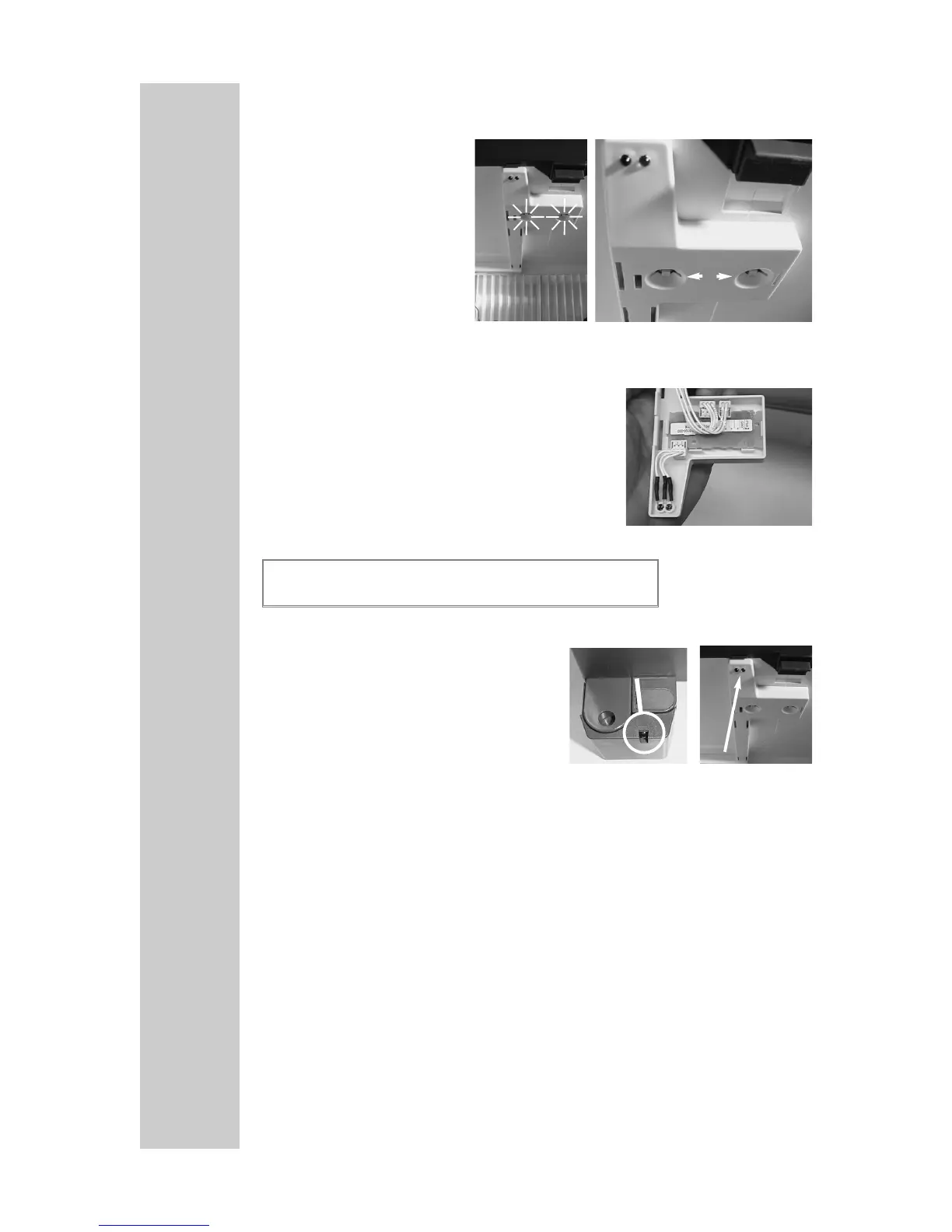

Two LEDs (A) light the
cooling compartment whilst
the door is opened.
Two sensors (B) control the
LEDs as well as the
(optional) door control.
Change of lighting / Infrared sensors
The complete lighting is fastened into the
inner housing with a clip and can be pulled off
very easily. Detach the plug connections and
change the lighting. Same is applicable for the
infrared sensors. All plugs are encoded.
Automatic Door Control
The electronic contains an infra-red reflecting light barrier for recognition
fridge door was opened.
For resetting the REDDOT-indicator
use the remote control.
The reflecting light barrier is checked
every 200 ms.
Operation intervention
The electronic uses the infra-red reflecting light barrier also for changing the
fixed temperature and for resetting the check-Cooling unit.
Action Reaction
reset Red- Dot Red- Dot switches off
fixed temperature 3°C 3 x flashing
fixed temperature 5°C 5 x flashing
reset leak leak-flash stops
30
20.0
B
A
21.0
A
Infrarot - Sensor
The LED (A) placed at the bottom edge of the minibar
indicates whether the miniBar door has been opened.
22.0
