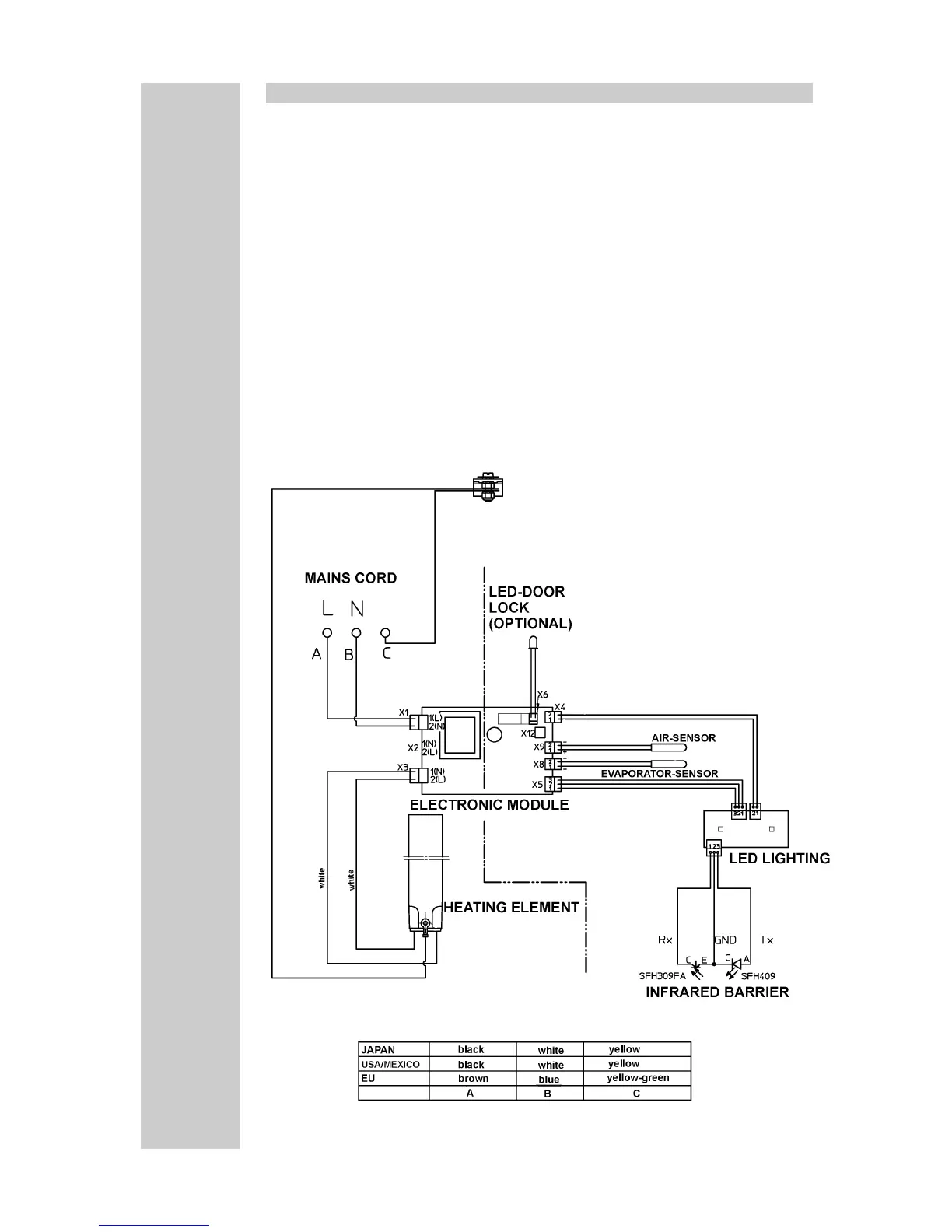

Wiring Diagram/ Occupancy electronics
33
Model HiPro 6000 with cooling unit cover + feet
Casing Plastic
Gross Volume ( litres) 51
cooled / uncooled 51 / -
Dimensions (mm)
(H x W xD) 568 x 490 x 474,5 610 x 490 x 494,6
Electrical Rating (W) 80
Power Consumption
kWh / 24h* 0,9
Net Weight (kg) 17 18
Assembly x
freestanding xx
* Power consumption measured at an average ambient temperature of 25°C as an average
annual value and at a cooling compartment temperature of 7°C according to EN 153.
We reserve the right to make technical changes and modifications without notice!
29.0
Connections electronics:
X1 Main Voltage (110V oder 230V
X2 -
X3 Heating shell
X4 Interior light
X5 Infrared senors (reflecting light barrier)
X6 RedDot LED
X7 Potentiometer (not used in HiPro)
X8 Evaporator Sensor
X9 Air Sensor
X10 Serial interface
X11 -
X12 Automatic Door Control
