Troubleshooting - DC545 HCEX

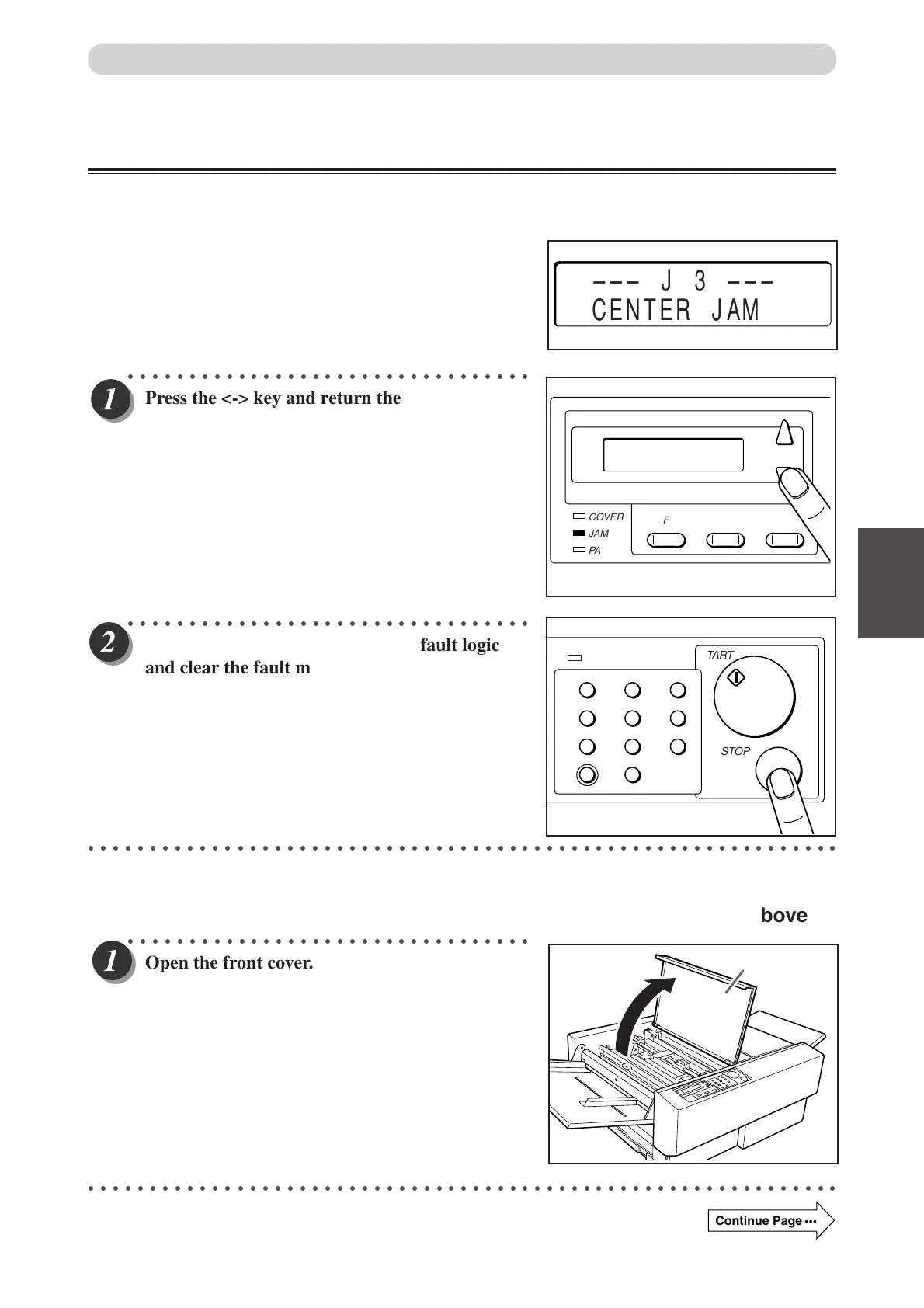

When “CENTER JAM” is Displayed
If a paper jam has occurred in the machine (front), “CENTER JAM” is displayed on the LCD panel and the
JAM lamp blinks.
Remove the jammed document with the following procedure.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <-> key and return the jammed
document to the feed tray side.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <STOP> key to reset the fault logic
and clear the fault message.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
■ If the document cannot be removed with the procedure mentioned above
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Open the front cover.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
––– J 3 –––
CENTER JAM
COVER
JAM
F
PAPER
MODE SET
+
–
Front cover
When a Paper Jam Has Occurred
1
4
7
C
2
5
8
0
3
6
9
POWER
START
STOP
Continue Page •••
