Specifications of Reg. Mark and Bar Code
1.Reg. Mark Details (Vertical/Horizontal)
Length: 5mm or more
Width: 0.4mm or more
2.Bar code
Bar code : CODE-39
Start/stop code : Required
Check digit : Optional
Minimum resolving power : 0.254mm
Fine line : Thick line : 1:2.5
Bar height : 4mm or more
Under the requirements listed above, the bar code width will be about 15mm.
Printing Position : See P.62 to P.64 for details.

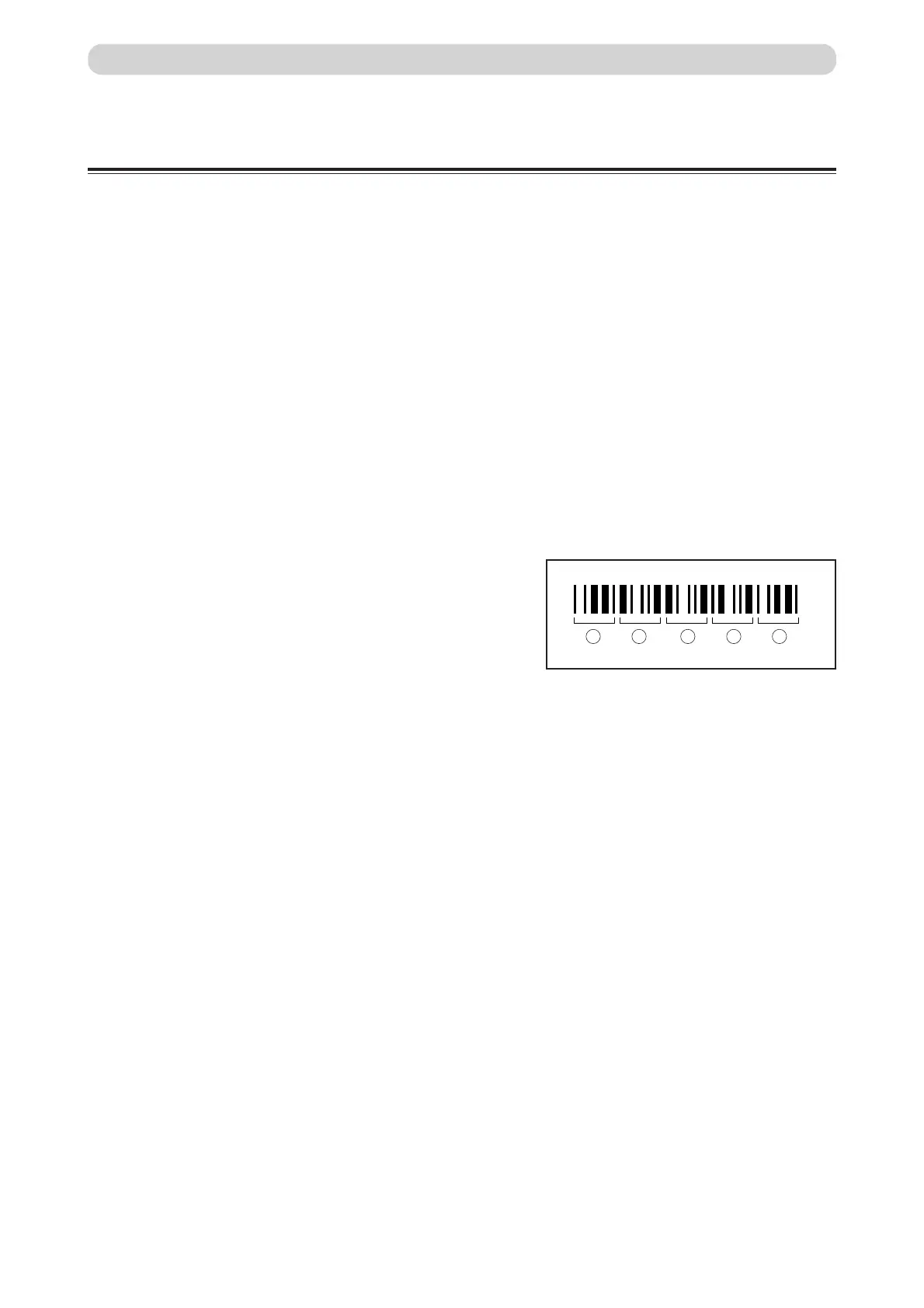

Print the bar code data in the following sequence:
q is the start code designator for CODE-39.
w is the 10’s digit data of the program number.
(Example: When the program number is 11 , the data is "1".)
e is the 1’s digit data of the program number.
(Example: When the program number is 11 , the data is "1".)
r is the check digit.
t is stop code of CODE-39.
These figures indicate program number, with which the machine recognizes a stored setting for certain Jobs. (start from
00)
1
2
3
4
5
Specifications
