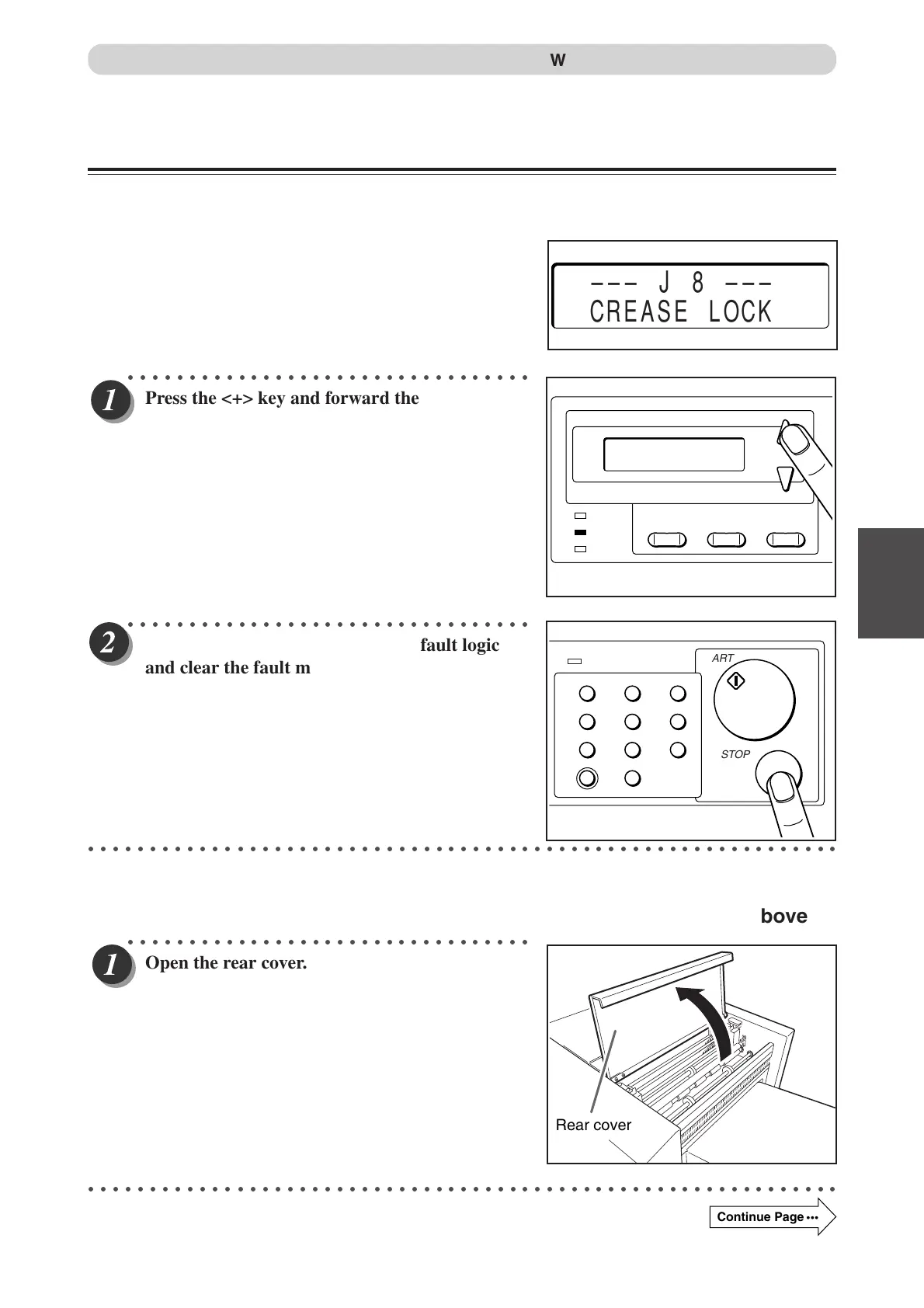

Troubleshooting - DC545 HCEX
When “CREASE LOCK” is Displayed
If a paper jam has occurred in the creasing unit, “CREASE LOCK” is displayed on the LCD panel and the
JAM lamp blinks.
Remove the jammed document with the following procedure.
Check that the paper stock is within specifications.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <+> key and forward the jammed
document to the paper tray side.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <STOP> key to reset the fault logic
and clear the fault message.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
■ If the document cannot be removed with the procedure mentioned above
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Open the rear cover.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Rear cover
––– J 8 –––
CREASE LOCK
When a Paper Jam Has Occurred
COVER
JAM
F
PAPER
MODE SET
+
–
1
4
7
C
2
5
8
0
3
6
9
POWER
START
STOP
Continue Page
•••
Docu Cutter(HCEX) 4_30-52 03.12.8, 3:10 PM51
To Next Page
