Duplo DF-755 User Manual

1-6
Chapter 1 BEFORE OPERATION
Bearing support lever
Non-operator’s side
5
Turn the bearing support lever on the
non-operator's side in the direction
of the arrow.
The bearing will be locked.
Because the bearing support lever
presses down the rubber roll, if it is not
locked, thick paper may not be folded
properly.
6
Close the top cover.

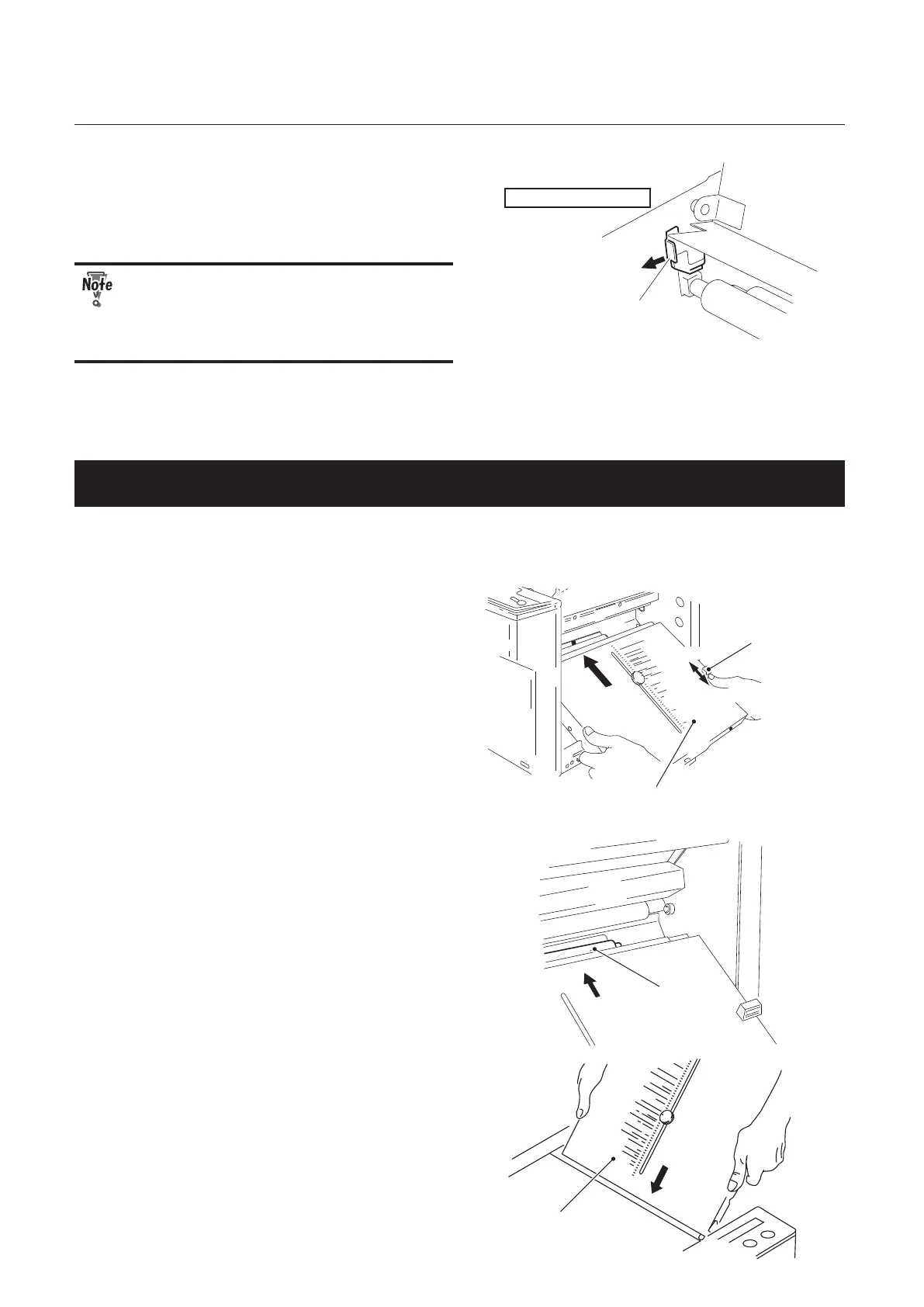

2-4. Attaching the Parts
1
Attach the second folding plate.
Second folding plate
Lock lever
UNLOCK
LOCK
1) Move the lock lever of the second folding
plate to the position of "UNLOCK."
Slider
2) Insert the folding plate to the machine
along the slider.
3) Move the lock lever to the position of
"LOCK."
First folding plate
2
Attach the rst folding plate.
It only needs to be inserted because the
rst folding plate is not provided with a lock
lever.
