Duplo DF-755 User Manual

3-27
Chapter 3 ADVANCED OPERATION

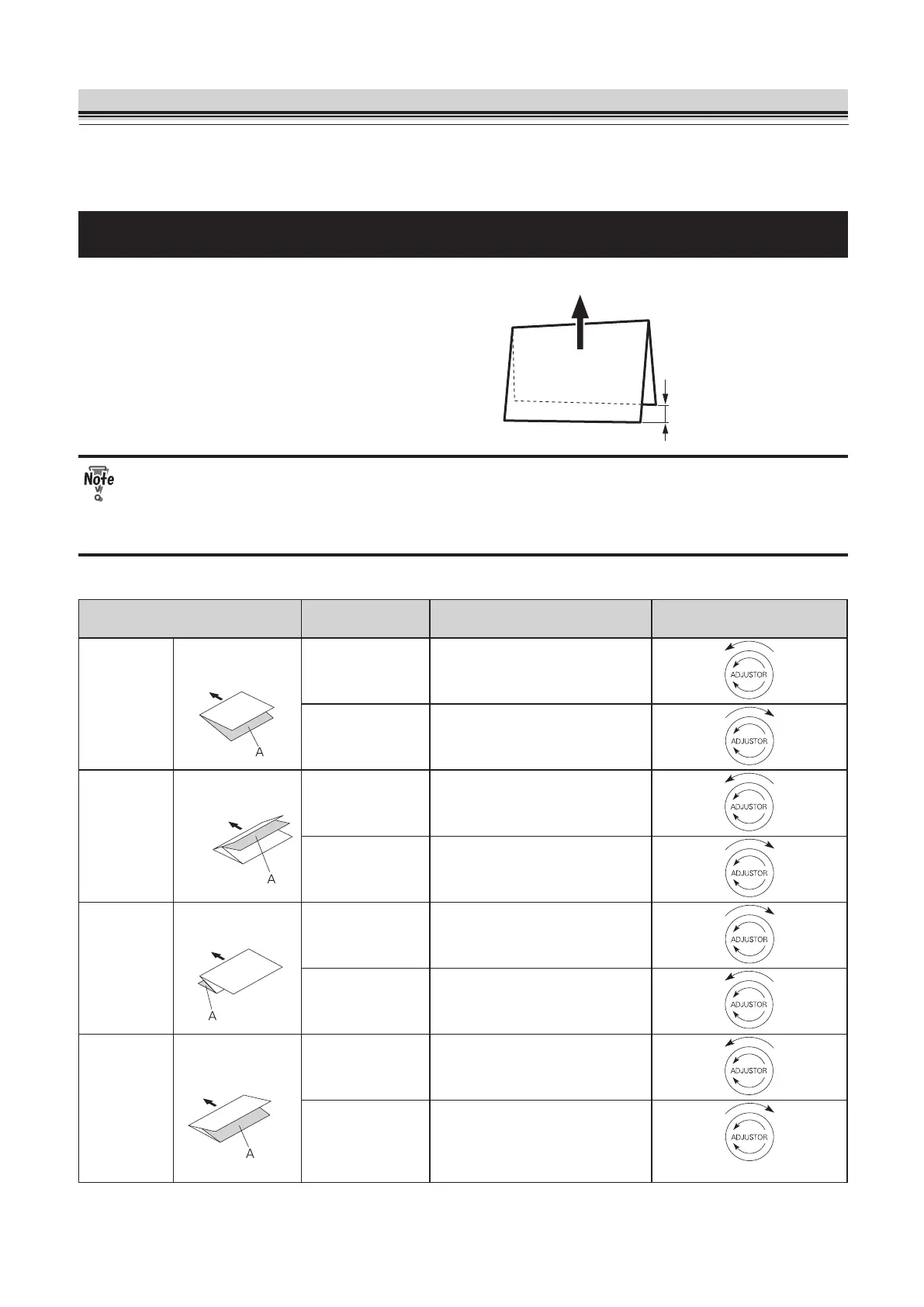

5. Correcting Folding Misalignment
Folding misalignment consists of two types; “folding misalignment along the vertical length of the pa-
per” and “folding misalignment along the sides of the paper.”
5-1. Correcting Folding Misalignment along Vertical Length of Paper
Paper feeding direction
Misalignment to
be corrected
When folded paper is misaligned along the vertical
length as shown in the gure, turn the ne adjustment
knob to correct the misalignment.
Use the mark on the folding plate just as a reference. You may need ne adjustments ac-
cording to various conditions such as environmental conditions (temperature, humidity),
paper quality, paper thickness, paper ber direction, cutting accuracy and printing condi-
tions.
Adjusting Fine Adjustment Knob of the First Folding Plate
Folding Style Fold Surface A Adjustment
First folding plate
Fine adjustment knob
Single fold
Feeding direction
When A is longer
Turn the ne adjustment knob
counterclockwise.
When A is
shorter
Turn the ne adjustment knob
clockwise.
Double fold
Feeding direction
When A is longer
Turn the ne adjustment knob
counterclockwise.
When A is
shorter
Turn the ne adjustment knob
clockwise.
Irregular
accordion
fold
Feeding direction
When A is longer
Turn the ne adjustment knob
clockwise.
When A is
shorter
Turn the ne adjustment knob
counterclockwise.
Letter fold
Feeding direction
When A is longer
Turn the ne adjustment knob
counterclockwise.
When A is
shorter
Turn the ne adjustment knob
clockwise.
