5-4

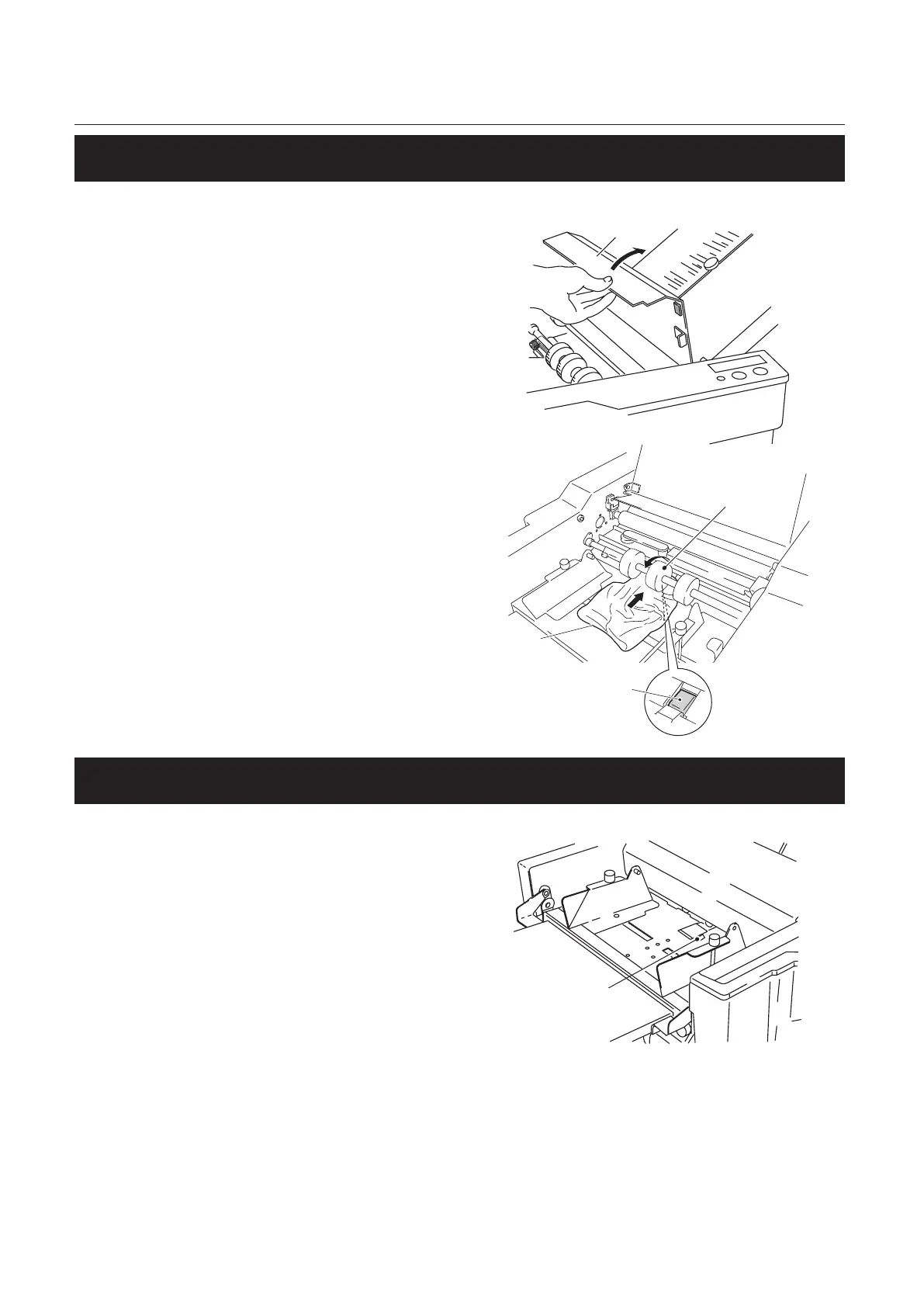

Chapter 5 CLEANING THE UNIT
1-3.
Cleaning the P
aper S
epara
tor
T
op cover
1
Open the top cover
.
Paper separator
Cloth
Paper feed ring
(middle)
2
Insert a cloth moistened with alcohol
between the paper feed ring (middle)
and the paper separator
.
3
T
urn the paper feed rings in the di-
rection of the arrow
.
1-4.
Cleaning the P
aper S
ensor
Paper sensor
Clean the paper sensor using an air
duster or a cotton bud.
79
81
Table of Contents
Default Chapter
7
Safety Precautions
7
Power Supply
7
Maintenance / Other
9
WARNING / CAUTION Labels
10
Table of Contents
11
Chapter 1 BEFORE OPERATION
13
Features
14
Setting up the Machine
15
Components
15
Removing the Press Release Lever
16
Locking the Bearing Support Levers
17
Attaching the Parts
18
Names and Functions
20
Describing Control Panel
22
Handling Paper
23
Paper Used
23
Precautions on Stacking Paper
23
Emergency Stop
25
Chapter 2 BASIC OPERATION
27
Standard Folding of Standard Paper
28
Standard Paper
28
Standard Folding
29
Operation Procedures
29
Chapter 3 ADVANCED OPERATION
35
Single Folding of Standard Paper
36
Single Folding Thick Paper
36
Double Folding Thick Paper
38
Double Folding Small Thin Paper
41
Custom Folding of Standard Paper
45
Standard Folding of Non-Standard Size Paper
49
Cross Folding
53
Cross Folding Standard Size Paper
53
Cross Folding Non-Standard Size Paper
58
Correcting Foldingmisalignment
61
Correcting Folding Misalignment Along Vertical Length of Paper
61
Correcting Folding Misalignment Along Sides of Paper
64
Chapter 4 TROUBLESHOOTING GUIDE
65
Correcting Deformed Folding
66
Removing Jammed Paper
67
When Paper Has Jammed Near the Paper Feed Ring
67
When Paper Has Slipped at the Paper Feed Section
67
When Paper Has Coiled Around the Rubber Roll
68
When Paper Has Jammed at the First Folding Plate
70
When Paper Has Jammed at the Second Folding Plate
71
When Paper Has Jammed Near the Stacker
72
Error Messages
73
Troubleshooting
74
Chapter 5 CLEANING the UNIT
77
Cleaning each Section
78
Cleaning the Rubber Roll
78
Cleaning the Paper Feed Rings
79
Cleaning the Paper Separator
80
Cleaning the Paper Sensor
80
Cleaning the Ejection Gate Sensor
81
Cleaning the Paper Ejection Belts
81
Chapter 6 APPENDIX
83
Specification
84
