3-30
Chapter 3 ADVANCED OPERATION

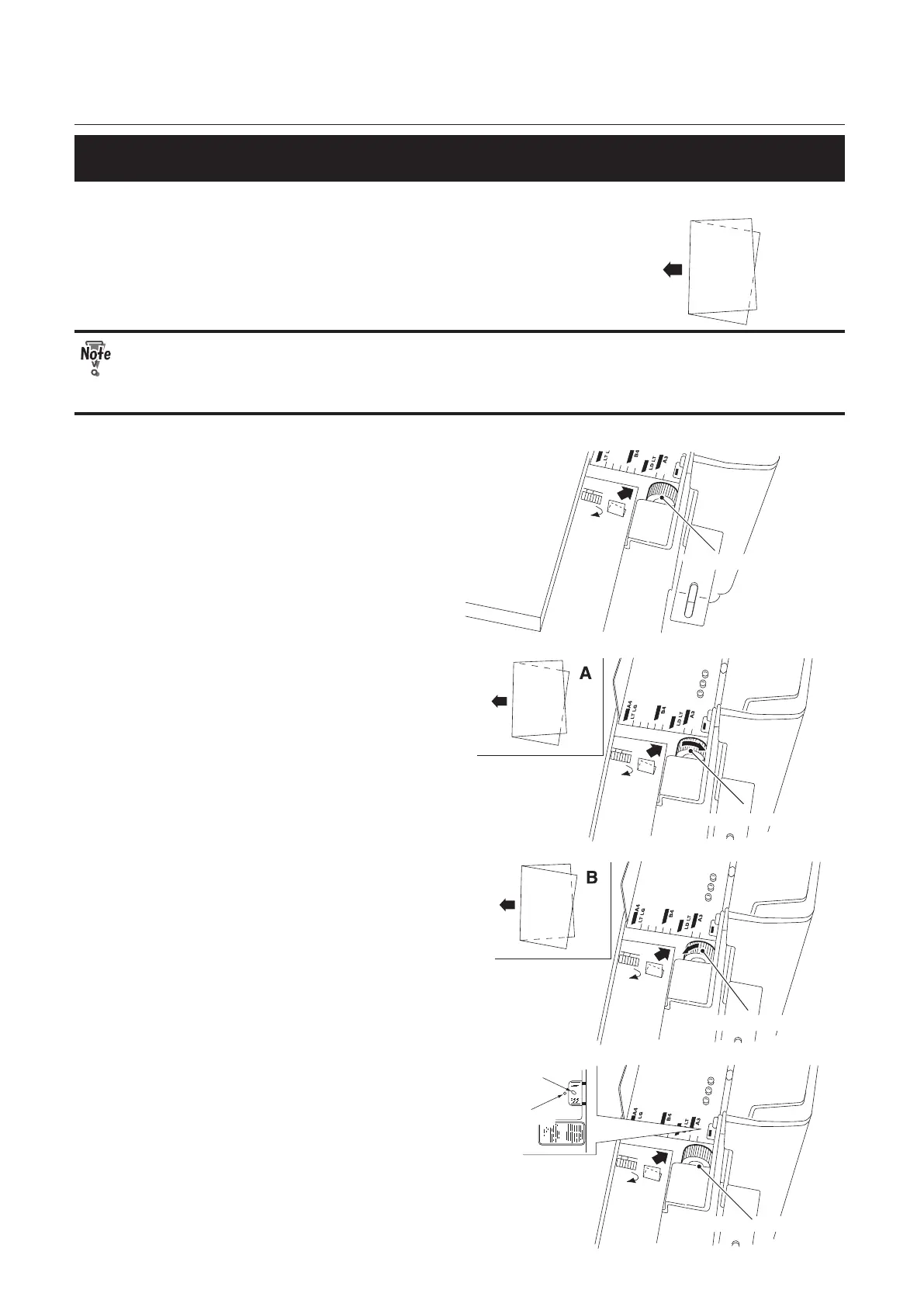

5-2. Correcting Folding Misalignment along Sides of Paper
Paper feeding
direction
When folded paper is misaligned along the sides
of paper as shown in the gure, turn the slant correction
knob to correct the misalignment.
You may need ne adjustments according to various conditions such as environmental
conditions (temperature, humidity), paper quality, paper thickness, paper ber direction,
cutting accuracy and printing conditions.
Slant correction knob
1
Turn the slant correction knob to ad-
just the folding slippage.
Slant correction knob
If folding slippage is as shown in Figure A,
turn the knob in the direction of the arrow.
If folding slippage is as shown in Figure B,
turn the knob in the direction of the arrow.
Pin
Round hole
Slant correction knob
2
After nishing operations, be sure
to turn the slant correction knob to
align the round holes of the paper
feed table with the pin.
The position at which the round hole meets
the pin is the standard position.
To Next Page
