28 OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
O
P
E
N
TRIP CLOSE
TRIP CLOSE
Recloser Interface
Junction Box
KME6-1811
Form 6 Recloser Control
in Substation House
Recloser Interface
Junction Box Cable
(factory-hardwired
to junction box)
Customer-Supplied Control Cable

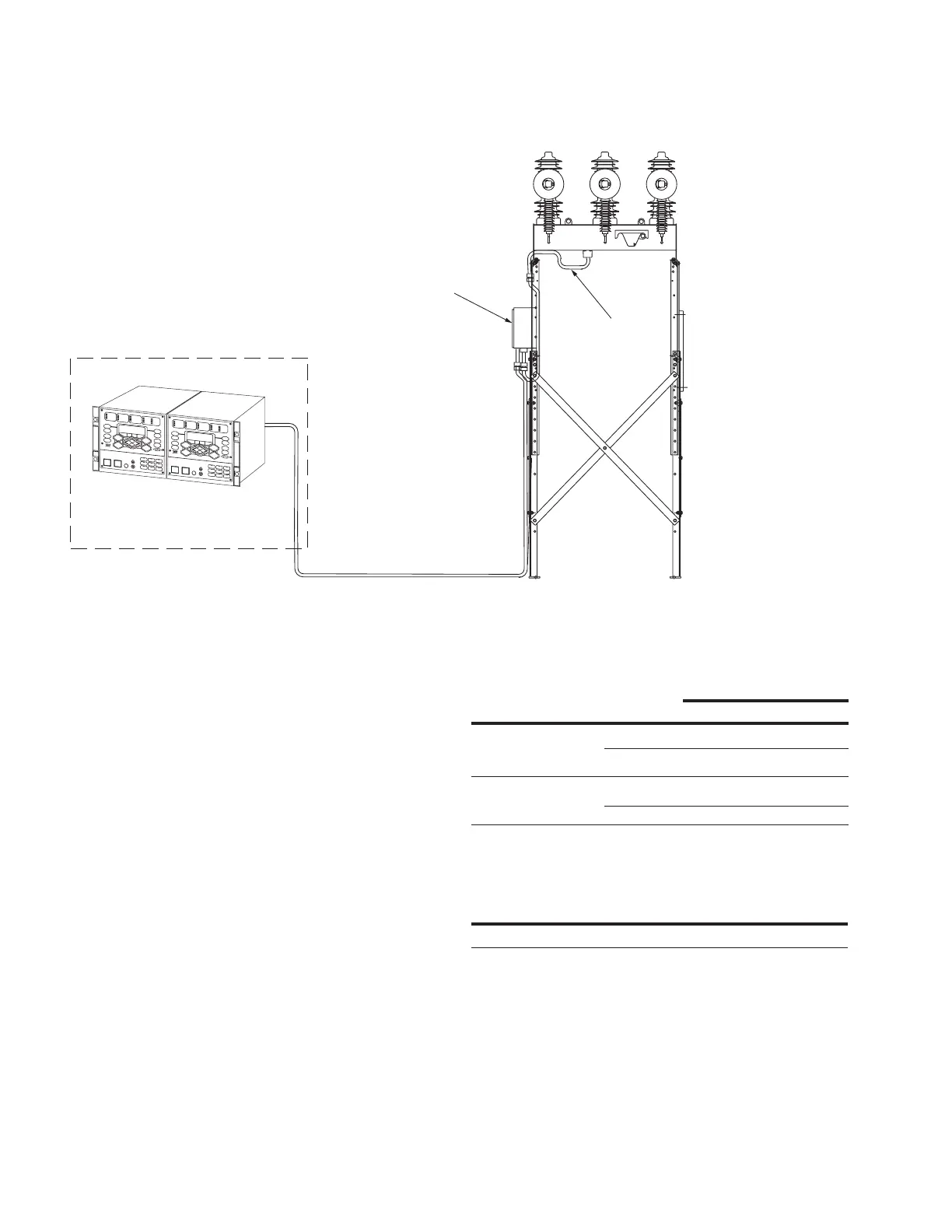

Figure22. Form 6 recloser control connected to a recloser through a KME6-1811 recloser interface junction box
Recloser interface junction box cable
A recloser interface junction box cable for connection
between the recloser and KME6-1811 junction box is
available in lengths of 5 to 15 feet. This cable is factory-
hardwired into the junction box. Refer to Figure25 for
Customer Connection information.
Recloser interface junction box wiring
The recloser control has various connection options to
connect the recloser. A recloser interface junction box is
available for customer-supplied cable. The gauge of the cable
is determined by the length needed for proper connection.
Table10 shows the required customer-supplied cable gauge
and length used on Eaton Cooper Power series three-phase
electronic reclosers. Table11 shows the common terminal
type suitable for connection to the Recloser Interface
Junction Box.
Table10. Customer-supplied cable sizes for wiring the
form 6 rack mount control to the interface junction box
Recloser Type Gauge
Length
Meters Feet
WE, WVE27, WVE38X,
VWE,VWVE27,VWVE38X,
Auxiliary Powered NOVA
12 91 300
10 152 500
VSA12, VSA12B,
VSA16, VSA20,
VSA20A, VSO12, VSO16
12 14 45
10 27 90
Table11. Common terminal type suitable for connection
to the recloser interface junction box
Wire
Size
AWG
Terminal
Type Size Model
12-10 Ring #8 AMP# 8-35605-2
