3OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
Control front panel
The Form 6 control front panel is illustrated in Figure2.
The front panel is separated into two clearly identified, color-
coded sections:

The top portion of the front panel is used for programming
the control and providing LED status indication.

The lower portion of the front operating panel is used for
operating the control and recloser.
The control includes a Power Save feature that will turn off
the backlit LCD display and all LEDs (except Hot Line Tag) if
no front panel keypad is pressed within ten minutes. Pressing
the LAMP TEST key will re-activate the display andLEDs.
ote:N The Power Save feature is a ProView interface
software default setting. This feature can be disabled
via the ProView interface software.
The control includes a Reset Menu feature that will cause
the LCD display to revert to the root menu after ten minutes
of inactivity.
ote:N The ten minute timer and MMI Reset Menu is a
ProView interface software default setting. The menu
selection and timer can be changed via the ProView
interface software.
CONTROL POWER
CONTROL OK
CONTROL LOCKOUT
RECLOSER OPEN
RECLOSER CLOSED
A PHASE FAULT
B PHASE FAULT
C PHASE FAULT
GROUND FAULT
SENSITIVE GND
ALARM
ABOVE MIN TRIP
INDICATOR 1
INDICATOR 2
INDICATOR 3
A PHASE VOLTAGE
B PHASE VOLTAGE
C PHASE VOLTAGE
FREQUENCY TRIP
VOLTAGE TRIP
METERING
RESET
TARGETS
EVENTS
LAMP TEST
MENU
ENTER
+
—
SETTINGS
OPER
COUNTER
ALARMS
CHANGE
F1 F2 F3 F4
TRIP CLOSE
HOT LINE TAG
ON
GND TRIP
BLOCKED
NON
RECLOSING
SUPERVISORY
OFF
ALTERNATE
PROFILE #1
ALTERNATE
PROFILE #2
ALTERNATE
PROFILE #3
RS-232 DATA PORT
OPTION #1
OPTION #2
OPTION #3
(LOCKOUT)
LCD Display
LCD Display
Dedicated
Function Keys
One-Touch
Analysis Keys
Hot Line Tag Toggle Switch and
Three-Segment LED Indication
RS-232
Configuration
Data Port
CLOSE Pushbutton
TRIP (LOCKOUT)
Pushbutton
(Hardwire Connected)
LED Indicators
LCD Display
Dedicated
Function Keys
One-Touch
Function Keys
Cursor Movement Arrows
LCD Menu Function Keys
One-Touch
Analysis Keys
INDICATOR 4
INDICATOR 5
INDICATOR 6
INDICATOR 7
INDICATOR 8
CLOSE CIRCUIT
DISABLE
Close Circuit
Disable Fuse
and Fuseholder
F6 Recloser Control
COOPER POWER
SERIES

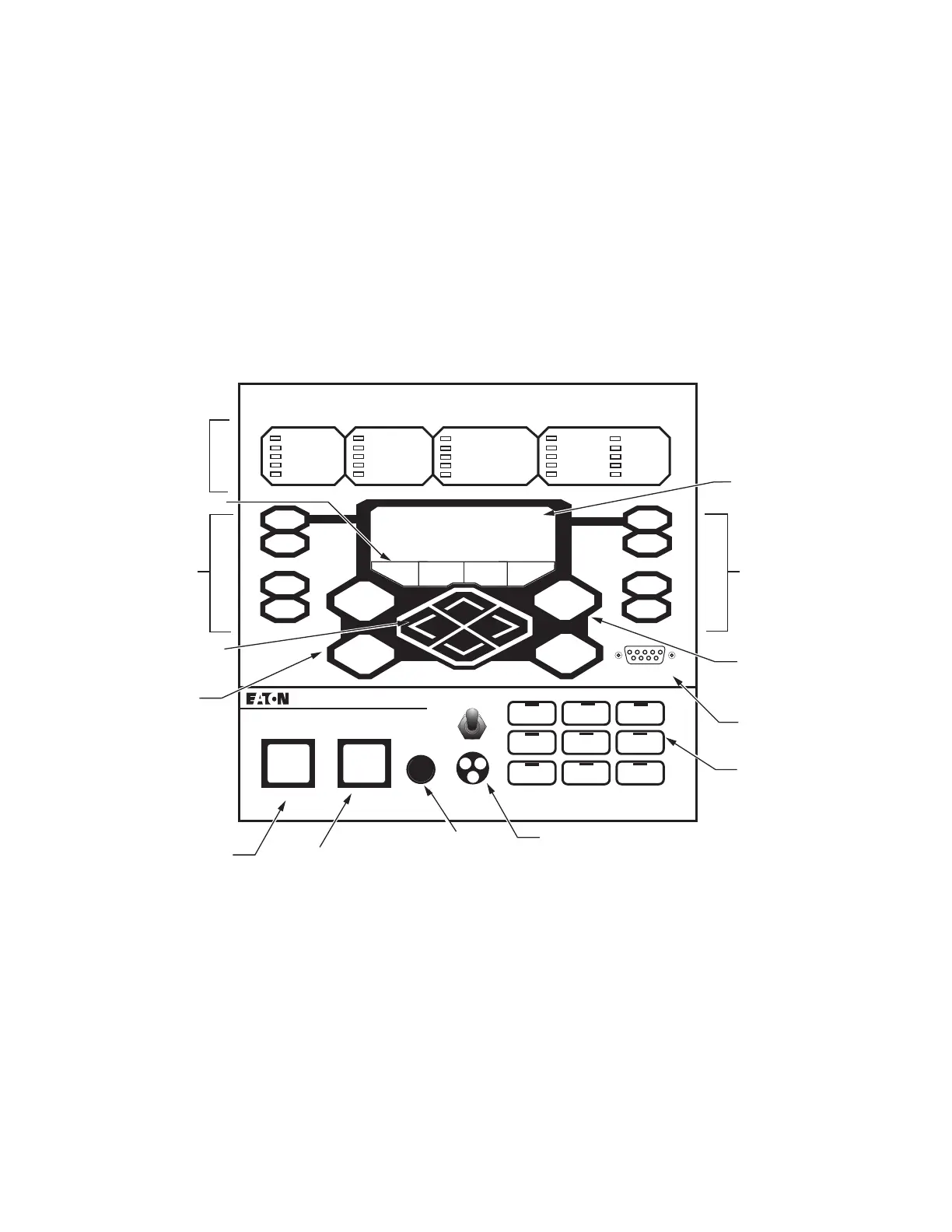

Figure2. Form 6 recloser control front panel
