Eaton 600 A 15 kV class push-OP Installation And Operation Instructions

36 OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
5. Align the filler plate over the handle holes.
6. Attach the handle (Item 3) and filler plate (Item 2) to
the control using five #10-32 Pan Head Screws (Item 5)
(Figure31).
7. Tighten all hardware completely. Do not torque.
TRIP CLOSE
Left Side View Front View
Top View
1
1
3
3
3
4
4
4
3
5
1
2
Control
Filler Plate
Handle
5

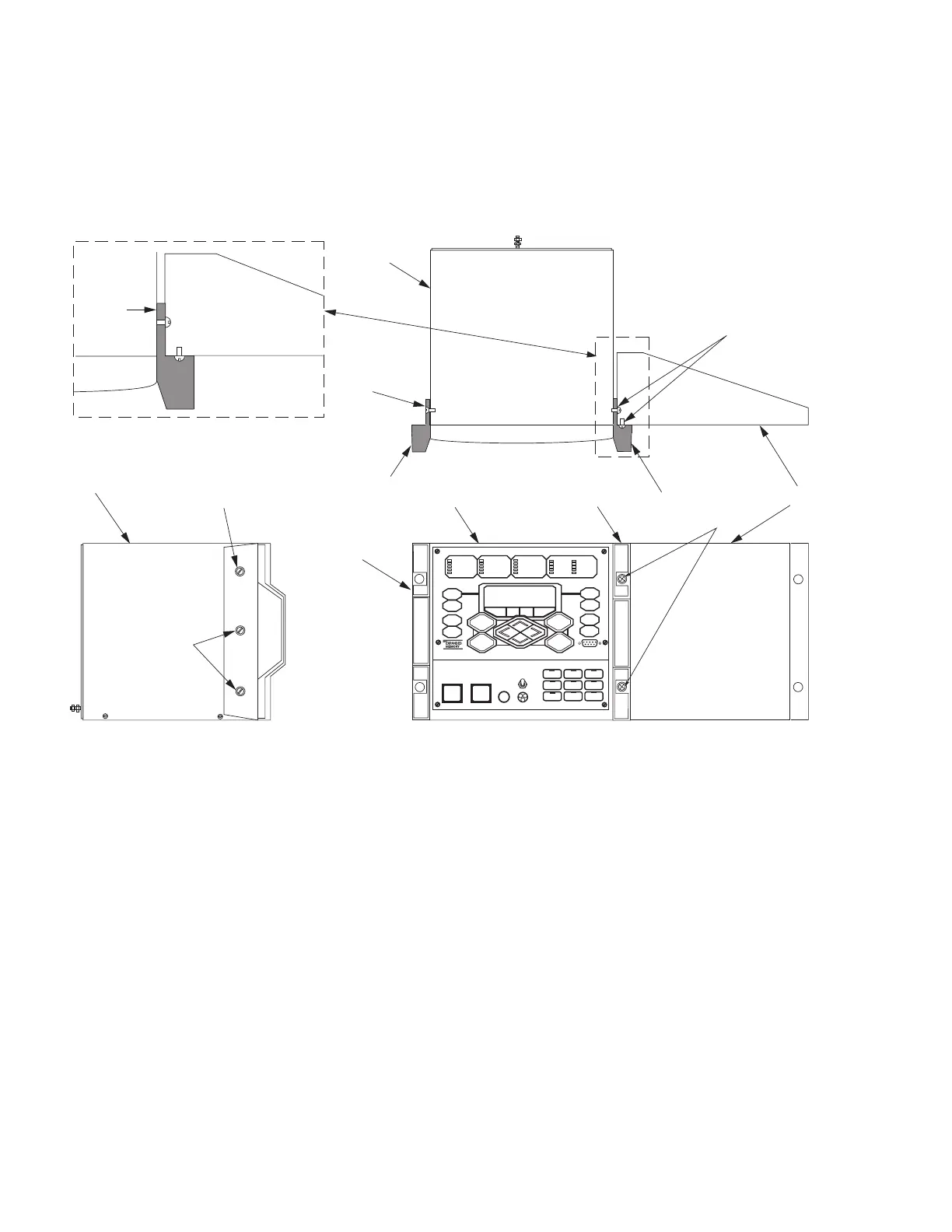

Figure31. Form 6 double rack – single mount recloser control
Communication board accessories
The Form 6 control is equipped with a Communication
Board Accessory (expansion bay) offering versatile
support for modern communication media. Six distinct
communication options (Figure32) are available, providing
two-way, real time digital communications with a remote
terminal unit (RTU), wireless, telephone modem, Ethernet
network, or other communication devices. The following
options are available:

No auxiliary communication card installed (standard)

RS485 (isolated) Serial communication card

Fiber-optic-based Serial Communication Card (ST)

10/100 Base-T dual Ethernet communication card
(2*RJ-45)

100 Base-FX dual Ethernet communication card
(2*MT-RJ)

10/100 Base-T, 100 Base-FX Ethernet communication card
(RJ-45 + MT-RJ)
The expansion bay based Communication Board
Accessory concept offers high versatility with respect to
communication medium and protocol support. Additional
accessories are being continuously developed. Contact your
Eaton representative for the latest information regarding
particular media and communication protocol support.
