2.2.16 Diagnostic / Program mode - Dynamic Contact Status
The internal pushbuttons can be used to view the dynamic state of all signal inputs by
pressing and holding the internal Test pushbutton for 10 seconds.
LED-1, located above the test pushbutton, slow ashes to indicate the Annunciator is in
monitor mode.
Whilst in this mode the individual channel LED provides the dynamic status of the
associated eld contacts.
• If the LED is ON the eld contact is CLOSED.
• If the LED is OFF the eld contact is OPEN.
This is a quick method of verifying the dynamic state of the eld contact and is typically
used during commissioning or fault nding.
The contact monitoring function times out after 1 minute and the unit automatically
returns to the normal run mode and LED-1 reverts to steady ON.

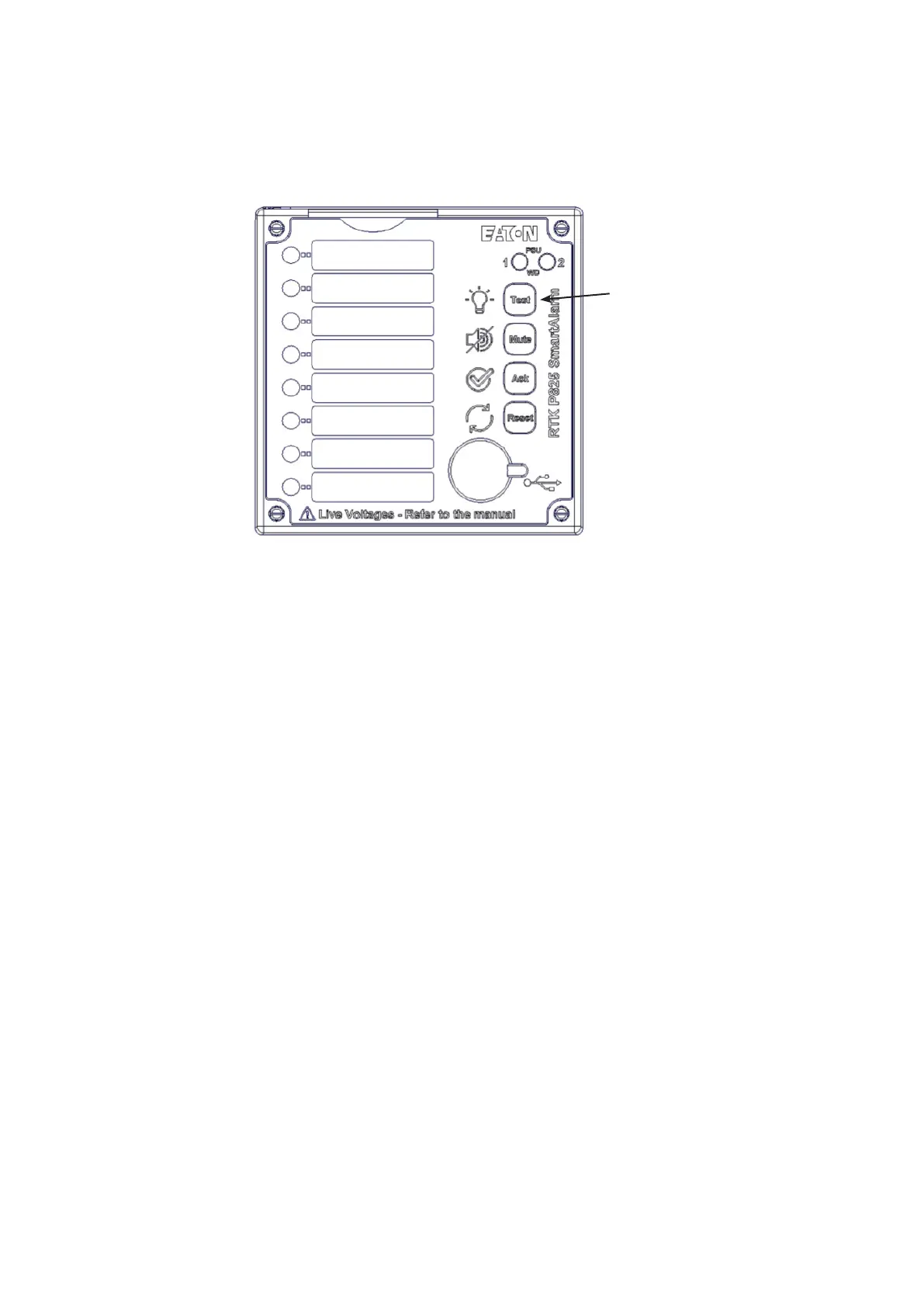

Press and Hold
for 10 Sec
