Eaton 9372-FB-P Series User Manual

47
INM MTL SUM5 Rev 7
DRAFT - 09 June 2021 DRAFT - 09 June 2021
18 LOCAL PUSHBUTTONS
Each SmartAlarm is equipped with four integral tactile pushbuttons used to control the operational
sequence of the annunciator. The local pushbuttons tab allows the user to change the function of a
pushbutton if required.

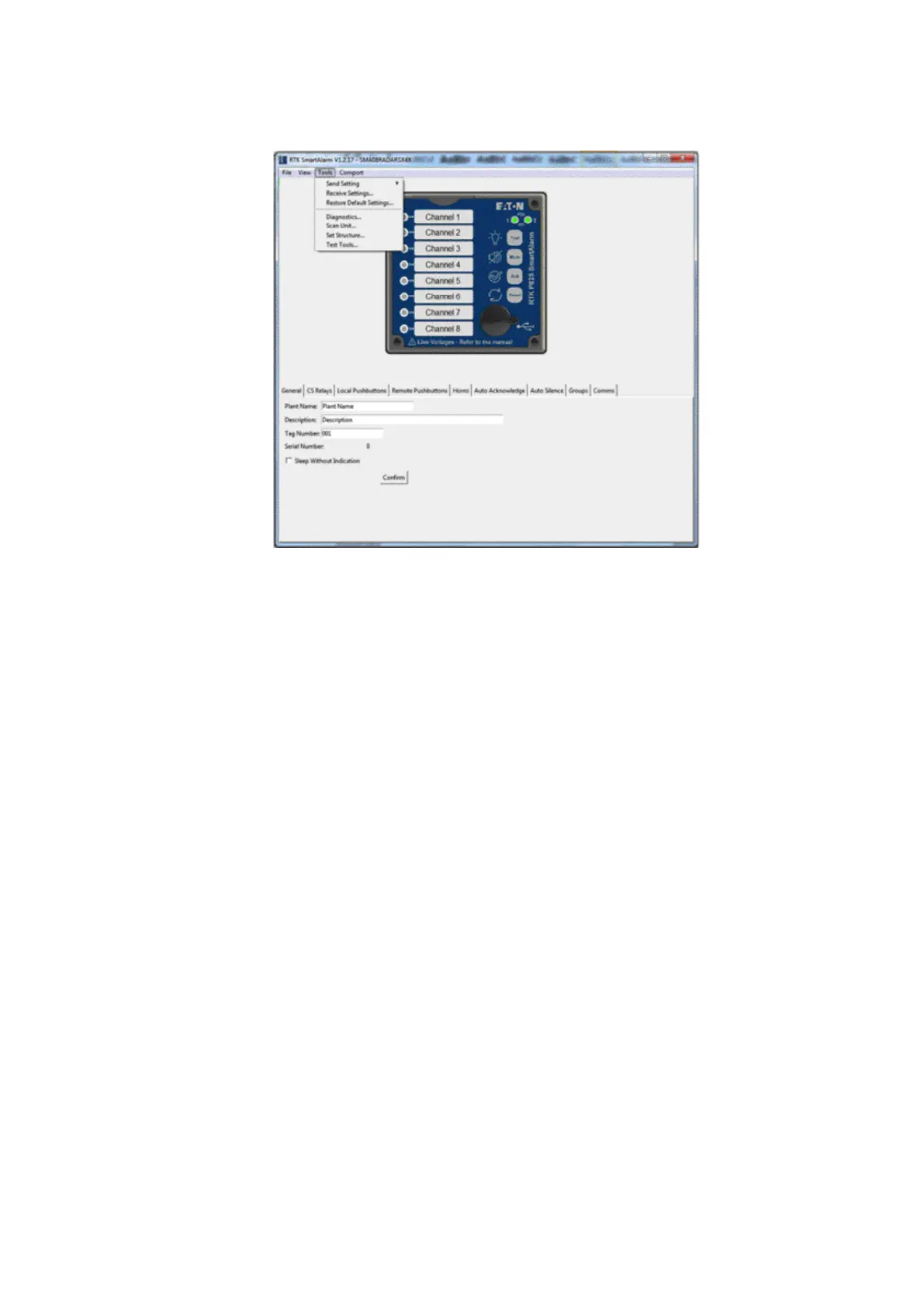

A drop-down menu provided per pushbutton allows the user to select alternative functions. For
example System Test is used as standard but the user may prefer Lamp Test as an option.
Once the alternative function has been selected the user will need to press “Conrm” and the
changes will need to be downloaded to the annunciator via the tools menu.
Any internal pushbutton can be assigned to a pushbutton group and any channel can be set to
match the associated group.
For example:- Channel-1 to 4 can be set to Pushbutton Group-1 and the internal pushbuttons can
be set to control Pushbutton Group-1. Only alarms within the group would be controlled by the
internal pushbuttons.
The remaining alarms can be assigned to Pushbutton Group-2 and these can be controlled by
external pushbuttons if required.
