19
INM MTL SUM5 Re
v 7
DRAFT - 09 June 2021
DRAFT - 09 June 2021
5
SIGNAL INPUT
T
YPES
Inter
nally P
ow

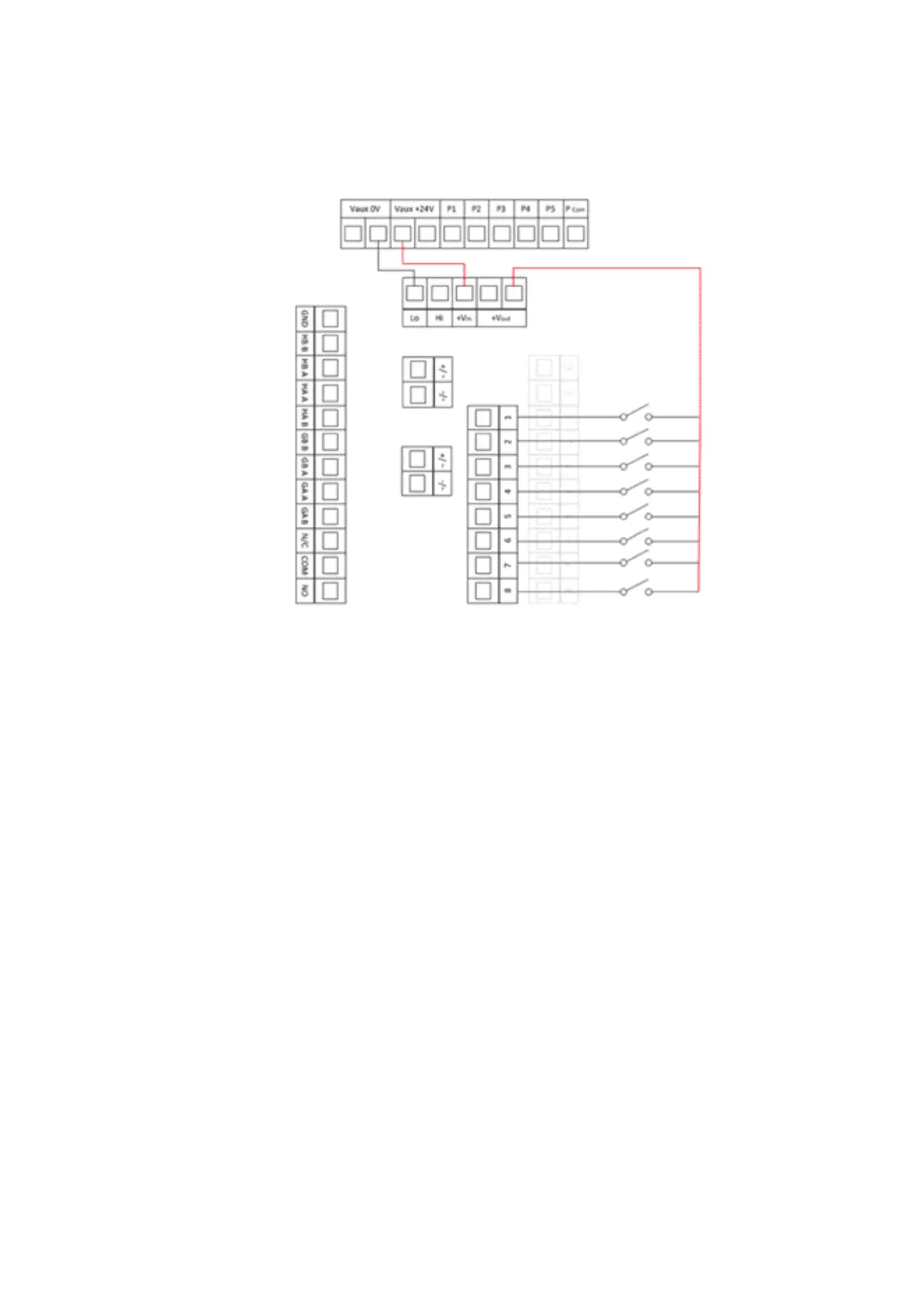

ered 24VDC Signal Inputs
•
On standard SmartAlarm annunciators a fully isolated +24VDC supply is provided
for use as a signal supply v
olt
age.
•
This output is a
vailable on all +VFC terminals whic
h are internally linked and
protected by fuse.
•
An internal 1
60mA glass quic
k blow fuse, 5mm x 20mm, located on the Common
Ser
vices Card is used to protect the output from eld wiring errors.
26
28
Table of Contents
Declaration of Conformity
2
Table of Contents
3
Annunciator Model Code Definition
9
Introduction
10
General
10
Card Locations
11
Psu/Common Services Card
12
Alarm Cards (8 Channel)
12
Pluggable Led's
12
Input Isolation
13
Bi-Polar Inputs
13
Standard Input Version
13
Optional Powered Input Versions
13
Integral Pushbuttons
13
Customer Terminals
13
Terminals for Use with External Pushbutton Inputs
14
Internal Audible Alarm
15
HNA & HNB Horn Relays
15
GPA & GPB Common Alarm Group Relays
15
WD Watchdog Relay
16
Watchdog Monitoring Led's
17
Diagnostic / Program Mode - Dynamic Contact Status
18
Diagnostic / Program Mode - Manually Changing the Input Type
19
Diagnostic / Program Mode - Communication Monitoring
20
Programmable Features
21
Film Legends
22
Window Numbering System
23
USB Programming Port
24
Primary Power
25
Aux Power
26
Signal Input Types
27
Signal Supply Fuse Location (FCV)
28
Or 48 VDC/ Customer Powered Inputs
29
Alternative Connection Method
29
125VDC/AC or 250VDC/AC Customer Powered Inputs
30
125VDC/AC or 250VDC/AC Alternative Connection Method
31
Horn Relays
32
HNA & HNB Horn Relays
32
Common Alarm Group Relays
33
GPA & GPB Group Relays
33
Remote Pushbutton Inputs
34
Group Inhibit Function
35
Sleep Mode Function
36
Individual Channel Repeat Relays
37
Typical Smartalarm Rear View
38
Installation
39
Unpacking
39
Mounting
39
Software Installation
41
Security
41
Configuration Executable
41
Configuration File
41
Log File
41
Other Security Considerations
42
Log File
42
Scan File
43
Auto Detect Hardware
45
Import Csv File
46
Open Configuration
46
Export Csv File
46
Save Configuration
46
Create a New System
46
System Settings
47
Auto Detect
47
View
47
Advanced
48
Front View of Annunciator
48
Tools
49
Send Settings
49
Receive Settings
49
Restore Default Settings
49
Diagnostics
50
Set Structure
50
Scan Unit
50
Test Tools
50
General Tab
50
Plant Name
51
Description
51
Tag no
51
Serial no
51
Address Offset
51
Sleep Without Indication
51
CS Relays (Common Service Relays)
52
Horn a - HNA
52
Horn B - HNB
52
Group a - GPA
53
Group B - GPB
53
Optional Settings
53
Assigning Relays to Groups
53
Reflash Function
53
Disable in System Test
53
Disable in Sleep Mode
53
Reflash Pulse Length
54
Alternative Functions for any Relay
54
Local Pushbuttons
55
Remote Pushbuttons
56
Inhibit Function
57
Assigning Channel to Inhibit Groups
57
Assigning a Remote Pushbutton Input to Inhibit
58
Sleep Mode
59
Assigning a Remote Pushbutton Input to Sleep Mode
60
Common Relay Operating in Sleep Mode
60
Inhibiting Common Relays During Sleep Mode
61
Sleep Mode Heartbeat
61
Disabling Sleep Mode Heartbeat
62
Horn
62
Auto Silence
64
Groups
65
Group Types
65
First-Up Group
65
Input Group
65
Audible Group
66
Ring Back Audible Group
66
Assigning the Group Type
67
Assigning a Group to the Internal Audible
67
Assigning a Group to a Common Relay
68
Communications
69
Individual Channel Settings
70
Configuring Individual Channels
70
Configuring Selective Channels
70
Configuring Multiple Channels
70
Channel
71
Alarm Legend
71
Manual Inhibit
71
Group Inhibit
71
Auto Shelving
72
Input
72
Contact Type
72
Delay Timers
72
Abnormal Delay (Ms)
73
Normal Delay (Ms)
73
Remote
73
Relay
74
Coil Status
74
Relay Function
74
Abnormal Delay
75
Normal Delay
75
Sequence
75
ISA Sequences
76
Pb Groups
76
Global Pushbutton Group
76
Multiple Pushbutton Groups
76
Groups
77
Alarm Sequences
78
Pushbuttons
78
Functional Test
78
Mute
78
Acknowledge
78
Reset
78
Audible Alarms
78
Additional Features
79
Automatic Reset
79
Non Latch Sequence - (no Lock In)
79
Ringback Sequence
79
First up Sequences
79
ISA a - Automatic Reset - Lock in
80
ISA A-1-2 - Automatic Reset - Silence Pushbutton Interlock
81
ISA A-4 - Automatic Reset - Non Lock in
82
ISA A-4-5 - Automatic Reset - no Flashing
83
ISA A-4-5-6 - Status
84
Group Tab
85
Group Operations Tab
85
ISA A-5 - Automatic Reset - no Flash
86
ISA M - Manual Reset - Lock in
87
ISA M-1-2 - Manual Reset - Silence Pushbutton Interlock
88
ISA R - Ringback
89
ISA F1A-1 - Automatic Reset First up
90
ISA F2M-1 - Manual Reset First up
91
Sequence Table
91
ISA F2A-1 - Automatic Reset First up
92
ISA F3A - Automatic Reset First up
92
Sequence Table
93
ISA F3A-3 - First out Reset Interlock
94
ISA F3M - Manual Reset First out
94
ISA F3M-1-2 - Manual Reset First out with Silence Interlock
94
Communications
95
Port 1 Connection Details
95
Port 1 Connection Details - Smart Alarm
95
Modbus Rtu
96
Read Request - Master
96
Read Response - Slave
96
Single Write Request/Response
96
Multiple Write Request
97
Multiple Write Response
97
Address
97
Function
97
Error Check
97
Modbus Slave - Standard Communications
98
Read Coil Status - Function 01 - Read Request - Master
98
Read Coil Status - Function 01 - Read Response - Slave
98
Read Status - Function 03 - Read Request - Master
99
Read Status - Function 03 - Read Response - Slave
99
Write Multiple Coils - Function 15 - Read Request - Master
101
Write Multiple Coils - Function 15 - Read Response - Slave
101
Specifications
102
Environmental Specifications
104
Spare Parts List
105
Alarm Card Spares
105
Common Card Spares
105
Power Supply Spares
106
LED Spares
106
Servicing
107
Module Removal
107
End-User License Agreement
108
