9type vsa12, vsa12b, vsa16, vsa20, and vsa20a operation and installation instructions MN280063EN May 2017
Form 6 rack mount substation battery power interface
accessory
The substation battery power interface accessory is
designed for the Form 6 Rack Mount Control only. For other
control applications, contact your Eaton representative.
The factory-installed accessory, located in the mechanism
cabinet, is powered by a 24, 48, or 125 Vdc substation
battery, as specified at time of order. It allows the recloser
to be located up to 150 m (500 ft) from the control (see
Table 9). The Form 6 Rack Mount Control cable is wired to
the accessory, which transforms the control signal to trip
and close the recloser. Refer to Figures 8 and 9.
Table 9. Cable Lengths for Substation Battery Power Interface Accessory
Wire Gauge
Substation Battery Voltage
24 Vdc 48 Vdc 125 Vdc
Meters Feet Meters Feet Meters Feet
18 AWG 12 40 24 80 48 120
16 AWG 18 60 36 120 54 180
14 AWG 30 100 60 200 90 300
12 AWG* 50 175 100 350 150 500
* 12 gauge cable to be used with junction box accessory KME6-1859 or KME6-1811.
Knockouts (3)
for 25 mm (1")
conduit fitting
in bottom of
operating cabinet
Control Cable
Receptacle
Substation House
Form 6
Rack
Mount
Control
Substation
Battery
120* Vac/
240 Vac
* 120 Vac available with KA60VSM2 120 Vac Motor Operator Accessory

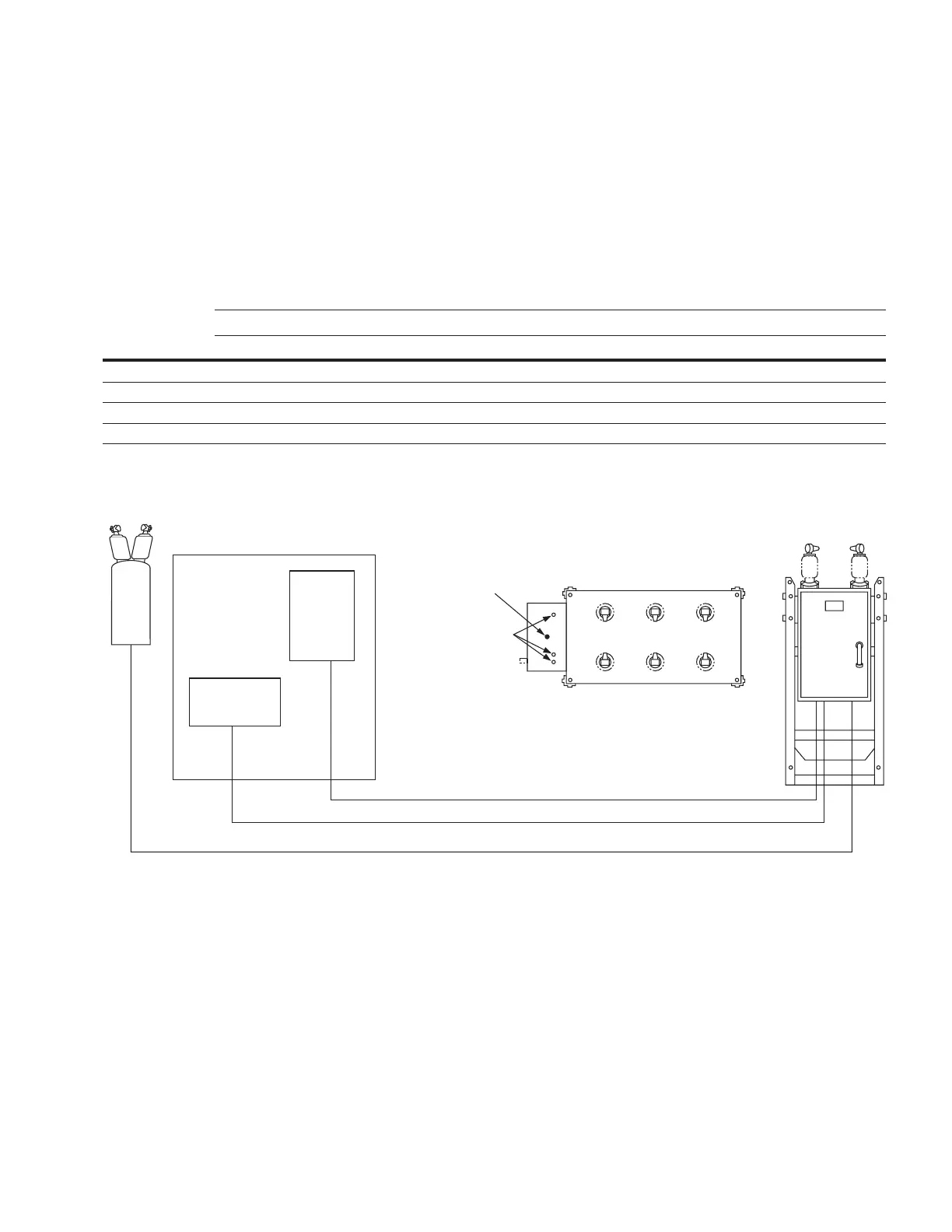

Figure 8. Substation Battery Power Interface Accessory wiring.
