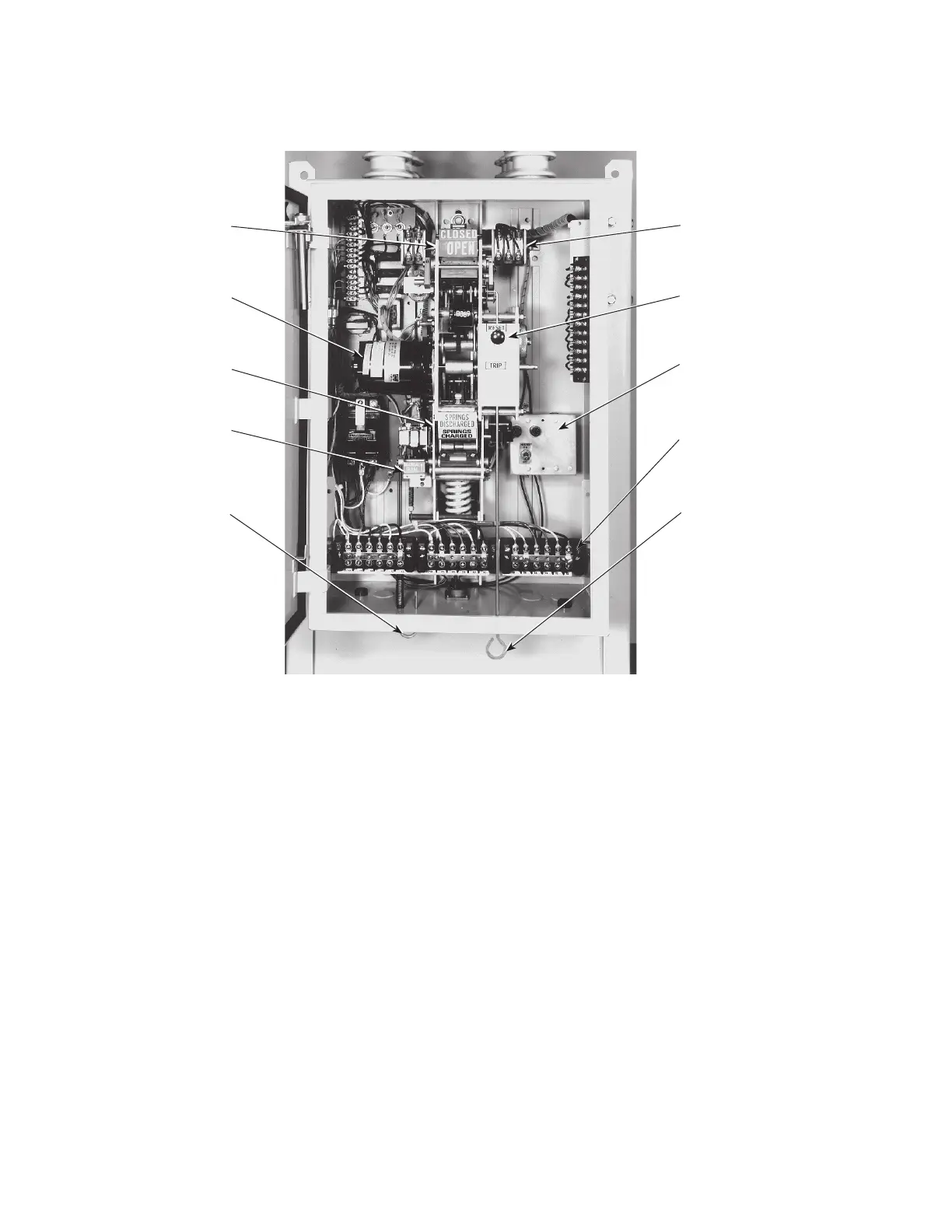

Figure 14. VSA recloser operating mechanism.
Manual tripping
A closed recloser can be tripped manually, from inside the
operator cabinet by moving the RESET-TRIP knob to TRIP
or from outside the cabinet by pulling down the yellow
MANUAL TRIP PULLRING under the cabinet. When the
recloser is manually tripped, the closing circuit is opened to
prevent reclosing. Refer to Figure 14.
Manual closing
Closing springs must be charged prior to manual closing
operation (see the Testing Operation section of this manual).
There are two ways to manually close the recloser. Refer to
Figure 14.
1. From inside the operator cabinet, move the RESETTRIP
knob to RESET and push up on the MANUAL CLOSE
LEVER.
2. From outside the operator cabinet, push up the yellow
MANUAL TRIP PULLRING, then pull down on the
MANUAL CLOSE PULLRING.
Auxiliary Switch Accessory
RESET-TRIP Knob
Operator Cabinet Heater
Multi-Ratio Current
Transformer Terminal Board
MANUAL TRIP Pullring
Contact Position Indicator
Drive Motor
Spring Charge Indicator
MANUAL CLOSE Lever
MANUAL CLOSE Pullring
