Eaton GridAdvisor Series II Operation And Installation Instructions

3type vsa12, vsa12b, vsa16, vsa20, and vsa20a operation and installation instructions MN280063EN May 2017
Dimensions and weights
Item
Dimensions per model
VSA 12/12B/16 /20 VSA20A
A 1219 (48) 1270 (50)
B 305 (12) 356 (14)
C 622 (24.5) 826 (32.5)
D 76 (3.25) 77 (3.5)
E 330 (13) 330 (13)
F 1549 (61) 1600 (63)
G 572 (22.5) 775 (30.5)
H 1416 (55.75) 1594 (62.75)
I 1130 (44.5) 1308 (51.5)
J 260 (10.25) 298 (11.75)
K 1080 (42.5) 1257 (49.5)
L 413 (16.25) 514 (20.25)
M 159 (6.25) 260 (10.25)
N 108 (4.25) 210 (8.25)
All dimensions are mm (inches).
Dimensions shown are approximate.

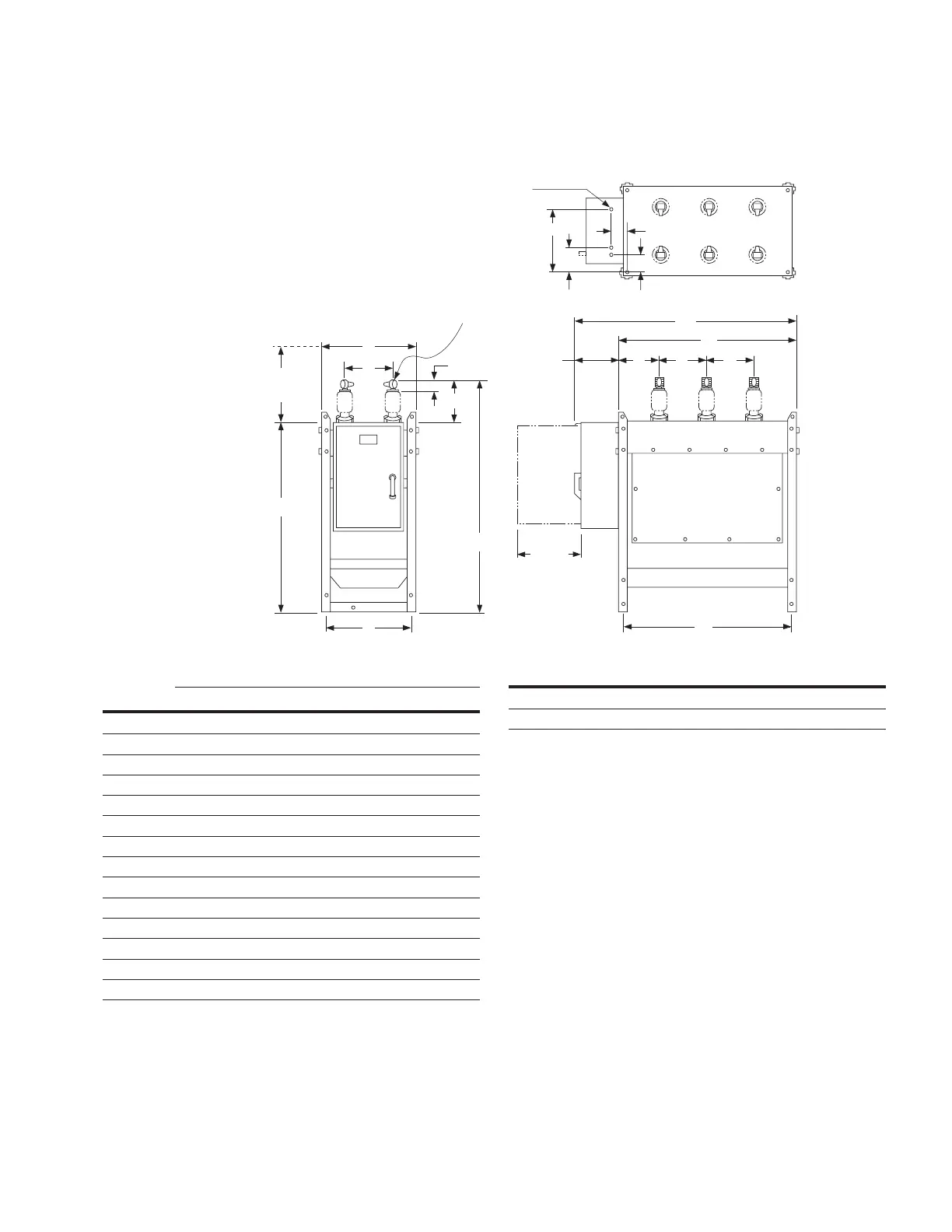

Figure 1. Outline dimensions and weights.
Model kg (lbs)
VSA 12/12B/16/20 238 (525)
VSA20A 336 (740)
clearance
required
for bushing
removal
A
F
E
D
B
C
375
(14.75)
(door open)
K
H
I
BBJ
G
Knockouts (3) for
25 mm (1") conduit fitting
in bottom of operating cabinet
L
102 (4)
N
M
VSA12/12B/16/20
Universal Clamp-type Terminal,
accepts 4/0 to 1000 MCM cable
VSA20A
1-1/4 - 12 UNF-2A Threaded Stud Terminal
286
(11.25)
660
(26)
