Installation
WARNING
This equipment is not intended to protect human
life. Follow all locally approved procedures and safety
practices when installing or operating this equipment.
Failure to comply can result in death, severe personal
injury, and equipment damage.
G102.1
WARNING
Hazardous voltage. Always use a hotstick when working
with this equipment. Failure to do so could result in
contact with high voltage, which will cause death or
severe personal injury.
G108.1
Installation procedure
All reclosers are carefully tested and adjusted at the factory.
Well-equipped test facilities, detailed testing procedures,
and thoroughly trained personnel assure accurately
calibrated equipment. Each recloser leaves the factory ready
for installation.
1. Check the data plate ratings. Make sure the ratings
of each recloser data plate are correct for the planned
installation.
2. Perform high-potential withstand tests. Prior to
installing the VSA recloser, with the recloser in the
OPEN position, perform high-potential withstand
tests across each open interrupter assembly. Refer to
the High- Potential Withstand Testing section of this
manual.
CAUTION
Falling equipment. Use the lifting lugs provided and
follow all locally approved safety practices when lifting
and mounting the equipment. Lift the unit smoothly
and do not allow the unit to shift. Improper lifting
can result in severe personal injury, death, and/or
equipment damage.
G106.3
3. Mount the recloser. Use the lifting lugs located on the
frame and follow approved procedures. See Figure 2.
DISTANCE
BETWEEN
LUGS
SLING
HEIGHT

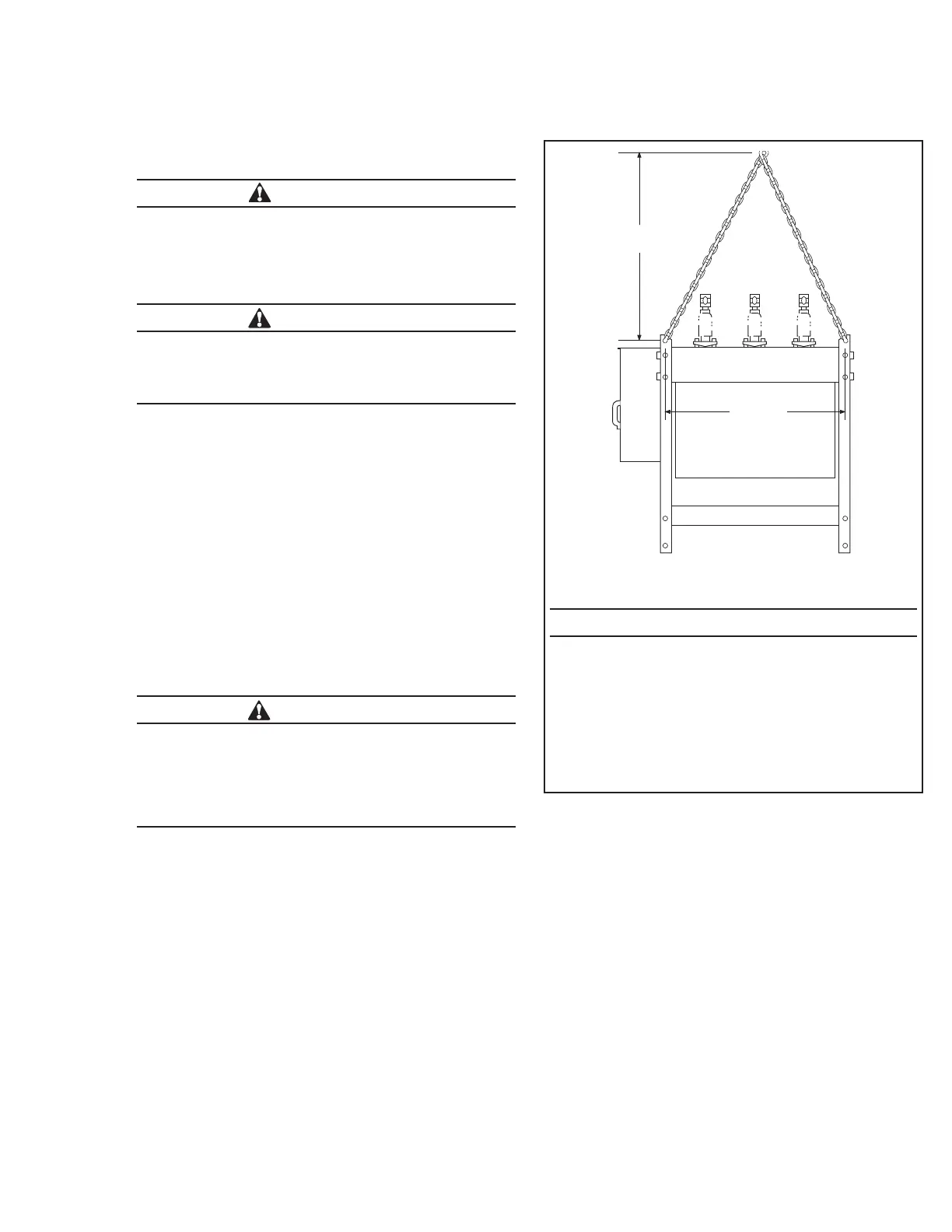

Figure 2. Lifting the recloser.
IMPORTANT
This recloser has four lifting lugs; all must be used when
lifting. Maximum strength is attained with a vertical lift.
Use of a spreader bar, with a fixed attachment point for
the hook at the load center, is recommended when lifting.
If a sling is used for lifting the recloser, it must have a
fixed attachment point at the load center. Rig the recloser
so that the sling height is equal to or greater than the
distance between lugs.
