04/2011 - Art. Nr. 4200 1037 0000A24
Function
MB-DLE gas train
Operation
When the magnetic coils are switched
on, valves Y12 and Y13 open. The valve
seats are protected against impurities by
a fine screen fitted upstream. The
integrated pressure regulator regulates
the desired outlet pressure.
The adjustment values required for:
- the gas pressure switch
- the gas pressure regulator
- the starting gas pressure
may be adjusted using the screw. The
inlet and outlet pressure can be
measured at the pressure taps.

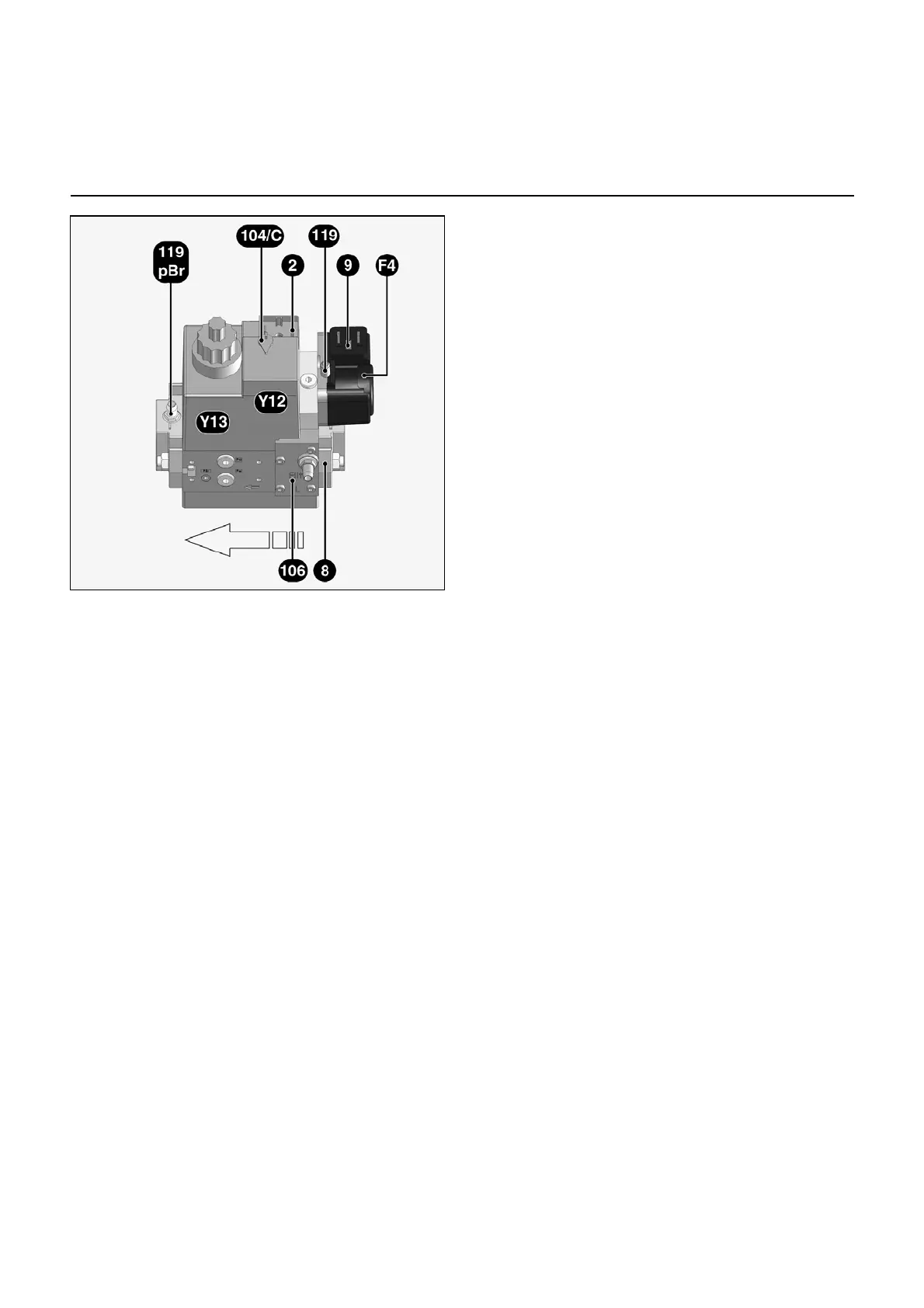

F4 Pressure switch (adjusting
screw under the cover)
Y12 Safety valve
Y13 Main valve
2 Valve electrical connections
8 Inlet flange
9 Pressure switch electrical
connection
104/C Gas pressure regulator
adjusting screw
106 Gas filter
119 Inlet gas pressure
measurement nipple
119pBr Outlet gas pressure
measurement nipple
The MB-DLE ... compact gas train
with
integrated gas pressure regulator is
suitable for use with single-stage forced
draught gas burners.
The compact gas train bears the CE
0085 AP3156 approval marking.
Technical data
Inlet pressure 13-360mbar
Ambient temperature -15 to +60°C
Voltage 230V/50Hz
Power consumption 46W
Protection level IP54
Gas connection Rp 3/4"
