11.6 Temperature sensor
• When replacing the heating element, please refer to the code shown in
the list of spare parts relating to the appliance.
• It is strictly forbidden to tamper with the heating element in any way!!!
(e.g. changing the NTC probe, etc...)

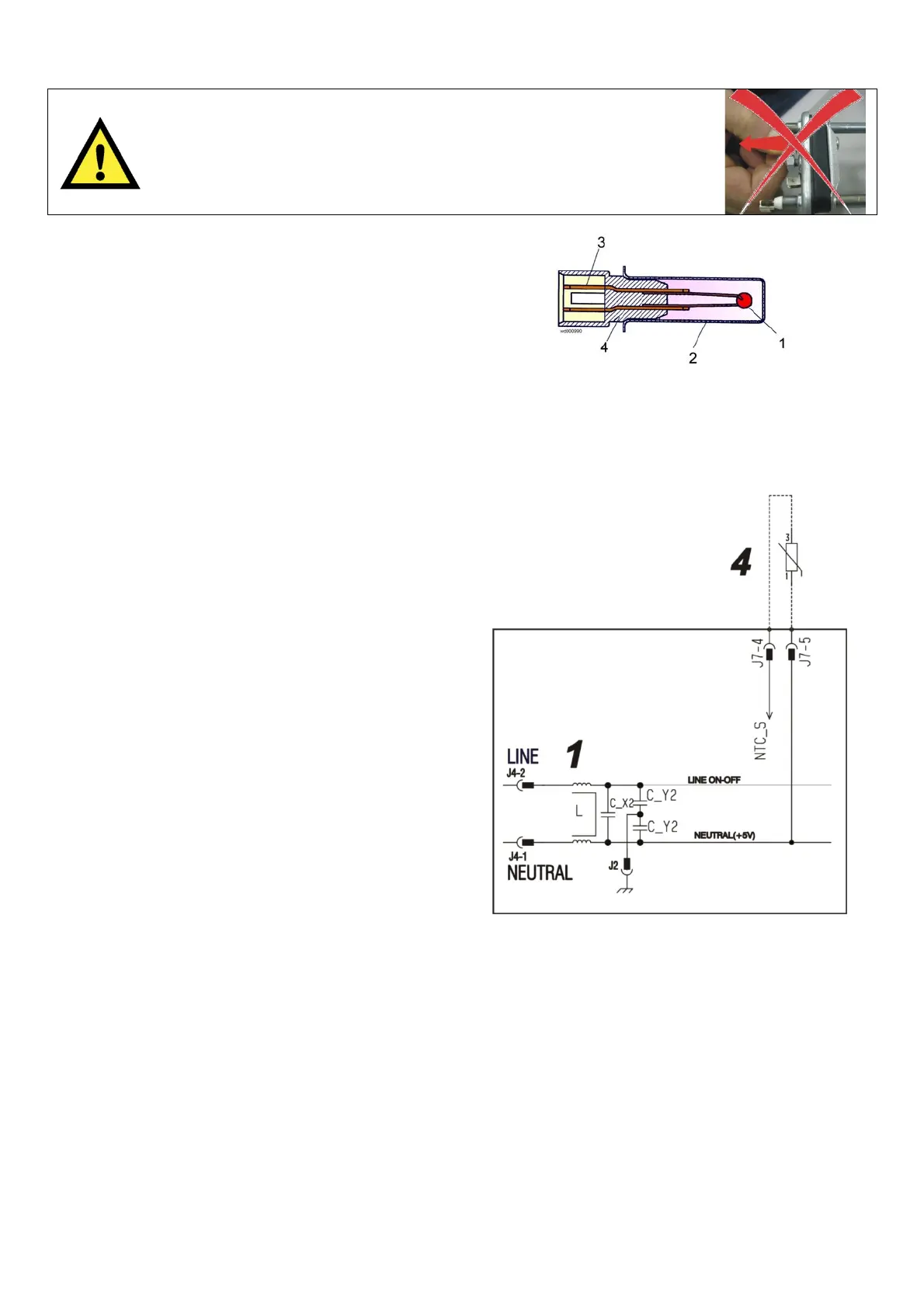

1. NTC heating element
2. Metal capsule
3. Terminals
4. Plastic casing
An NTC type probe is used to control the washing temperature: it is built in such a way that its internal resistance
decreases as the temperature rises. This drop in resistance is detected by the electronic control which, when the
desired temperature is reached, disconnects the heating element.
The temperature of the water is controlled by the circuit board by means of an NTC probe incorporated in the heating
element.
1. Main circuit board
4. NTC probe
In the event of a fault (short-circuit or stoppage) an alarm will be displayed - see table of alarms.
