13.14 Base board

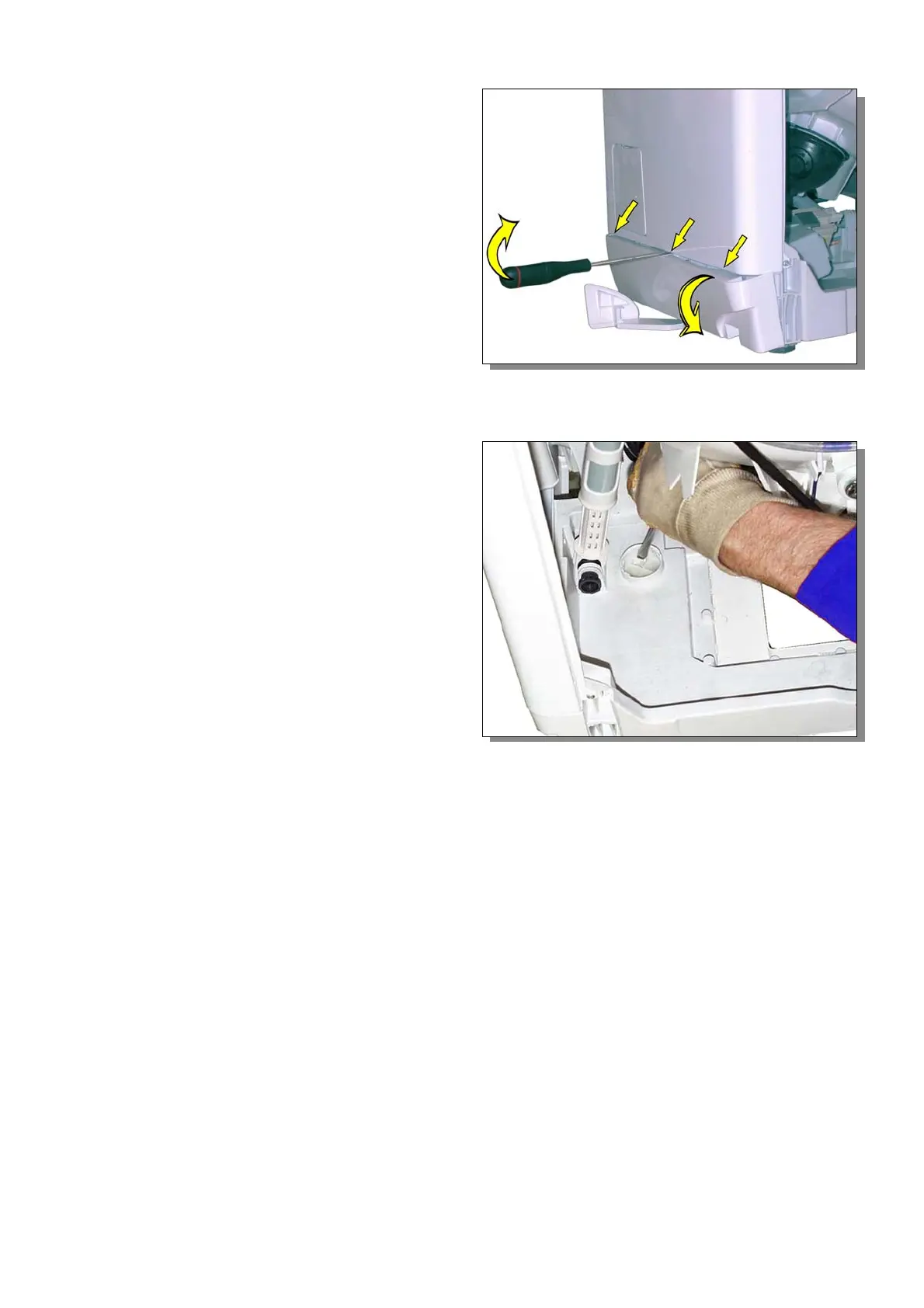

• Remove the left and right panels.
• Remove the transport roll.
• Insert a screwdriver into the points indicated by the
arrows starting from a side one.
• Lever with the screwdriver and simultaneously rotate
the base board downwards.
• Repeat this operation on all three points.
In order to refit the base board
• Insert the base and rotate the base board in order to
fully insert the three fastening clips.
13.15 Transport roll
• Remove the right side.
• Slightly tilt the washing machine to the left.
• Release the transport roll using the screwdriver and
remove it by pushing downwards.
