13.11 Main board

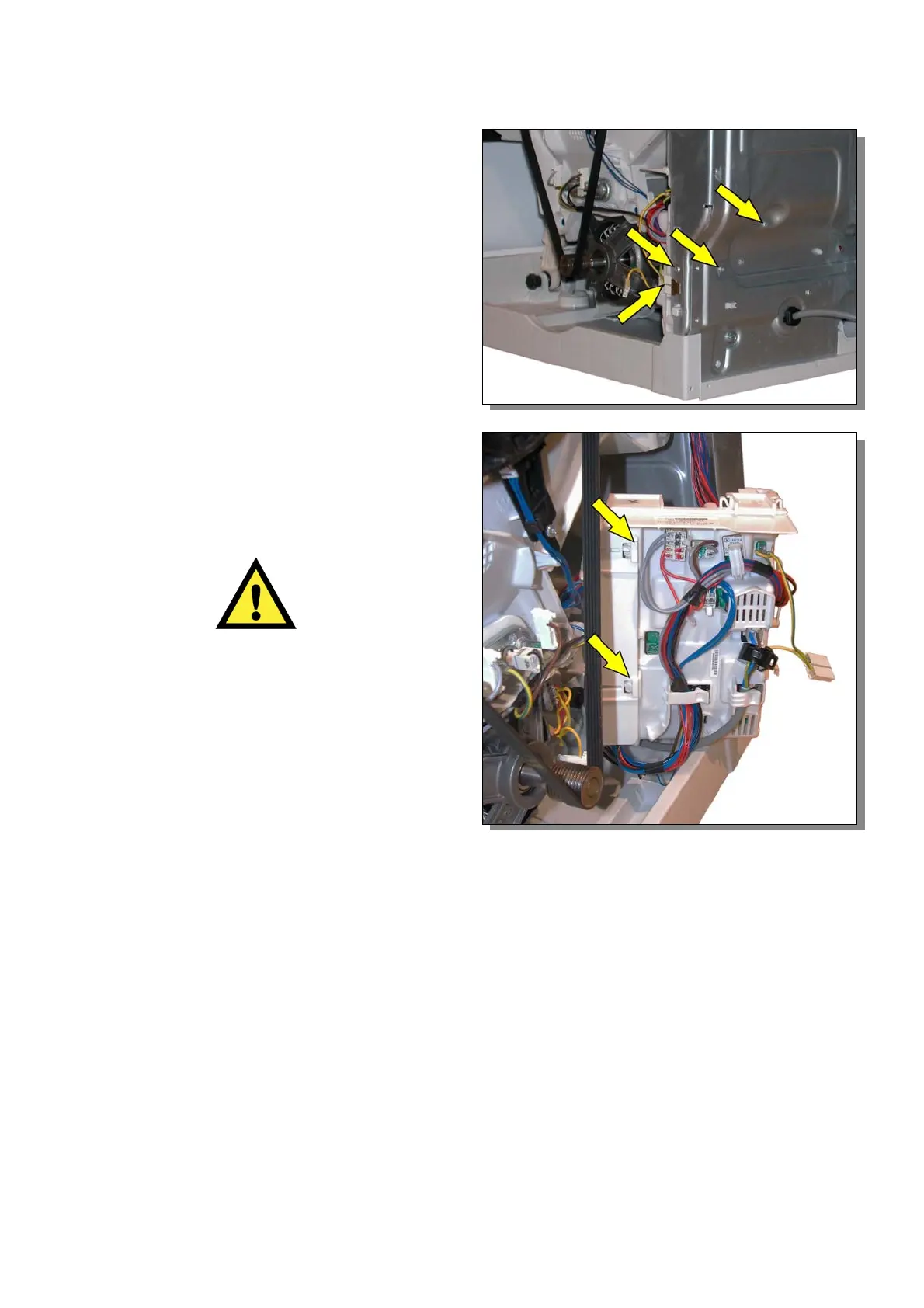

• Remove the right side panel.
• Unscrew the two screws on the back part of the
equipment and the side screws that lock the board
support to the back panel.
• Disconnect the mass connections located on the
frames to make it easier to remove the board.
• Gently lift the whole board unit in order to release it
and remove it.
• Unfasten the clips using a screwdriver and open the
connector protection cover.
• Disconnect all the connectors and remove the board.
When replacing the board, please refer to the code
shown in the list of spare parts relating to the
appliance.
When reinserting the connector protection cover firstly
insert the back part first.
