13.12 Front panel

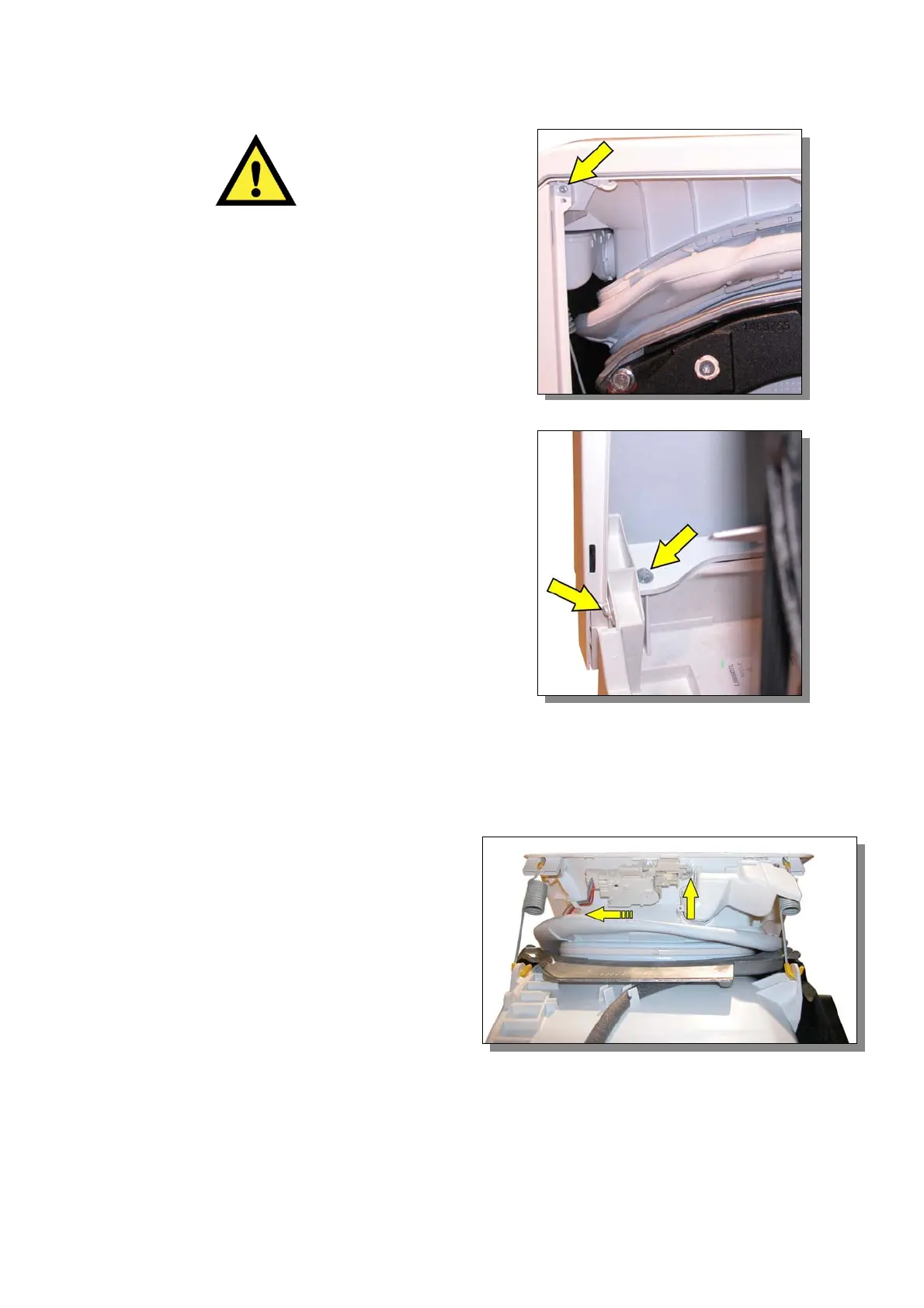

Before removing the frontal piece place a support under
the motor in order to make the operation easier.
• Remove the two side screws that hold the frontal
piece on to the inlet.
• Remove the two side screws that hold the frontal
piece to the base frame.
• Remove the two internal screws that hold the frontal
piece to the base frame.
• Gently lift the inlet and remove the frontal piece.
13.13 Door Lock
• Open the laundry loading cover.
• Remove the side panels.
• Remove the frontal piece.
• Release the wiring from the cable tray.
• Remove the door lock fastening screws.
• Move leftwards towards the door lock unit until it has
been fully released.
• Disconnect the connector.
In order to re-assemble the door lock carry out the
operations in reverse.
