Electrical connection
The appliance is designed to be connected
to 220 V monophase electricity supply.
The connection must be carried out in
compliance with the laws and regulations in
force.
Before the appliance is connected:
1. check that the main fuse and the
domestic installation can support the
load (see the rating label);
2. check that the power supply is properly
earthed in compliance with the current
rules;
3. check the socket or the double pole
switch used for the electrical connection
can be easily reached with the appliance
built in the forniture unit.
The appliance is supplied with a connection
cable and the relevant plug.
The plug has to be fitted in a proper socket.
If connecting the appliance directly to the
electric system, it is necessary that you
install a double pole switch between the
appliance and the electricity supply, with a
minimum gap of 3 mm. between the switch
contacts and of a type suitable for the
required load in compliance with the current
rules.
The connection cable has to be placed in
order that, in each part, it cannot reach a
temperature higher than 90°C.
The brown coloured phase cable (fitted in the
terminal block contact marked with "L")
must always be connected to the network
phase.
Neutral
Earth (yellow/green)
Replacing the power cable
When replacing the cable, only use
H05V2V2-F (T90) type cables suitable for
the load and working temperature. Also, the

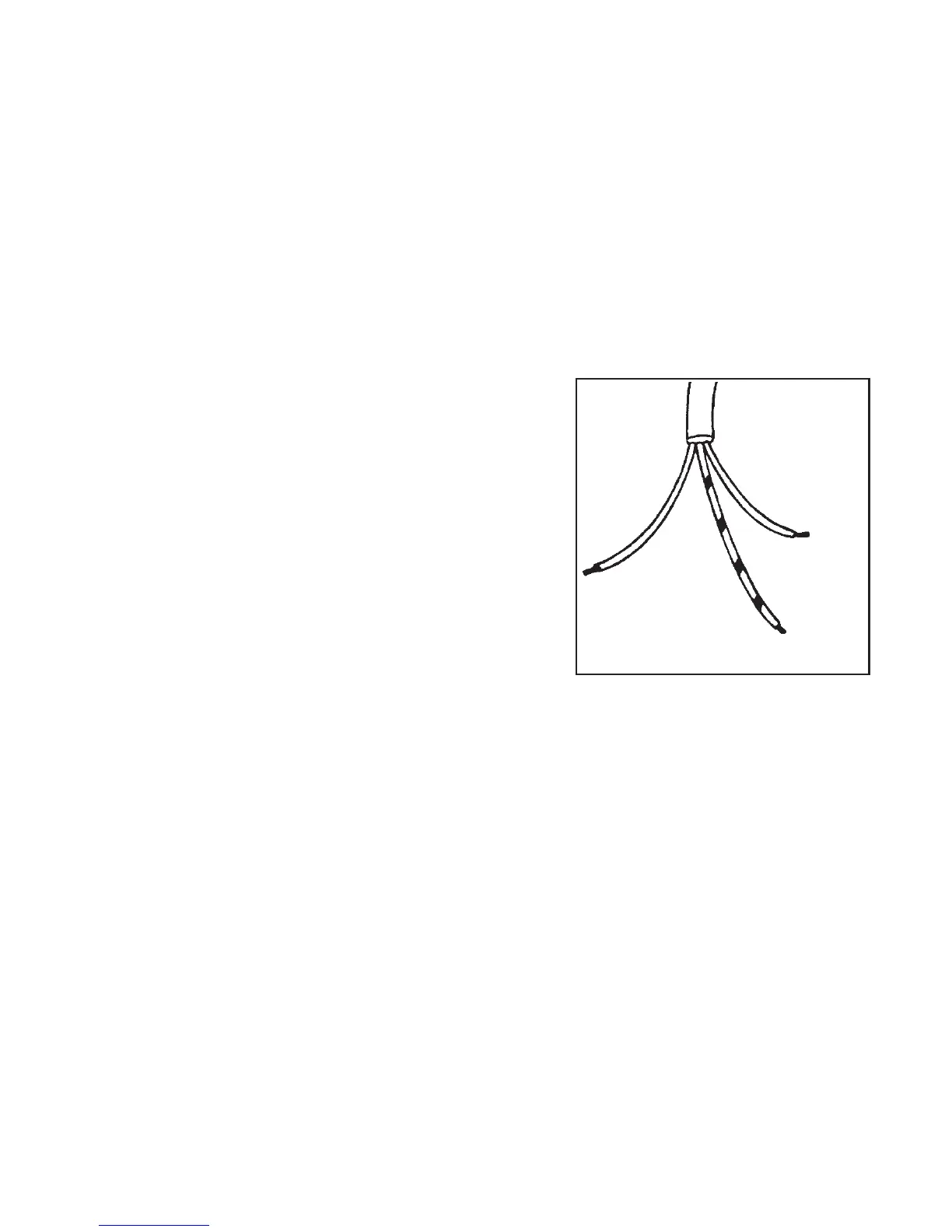

yellow/green earth wire must be about 2 cm
longer than the phase and neutral wires (see
figure).
After connection, test the heating elements
by switching them on for about 3 minutes.
