Building over a kitchen unit
with door
Proper arrangements must be taken in
designing the furniture unit, in order to avoid
any contact with the bottom of the hob which
can be heated when it is operated. The
recommended solution is shown in Fig. 5.
The panel fitted under the hob ("a") should
be easily removable to allow easy access
if technical assistance is needed. See also
Fig. 2.
The space behind the kitchen unit ("b") can
be used for connections.
Dimensions are in mm
Building over a unit with an
oven
The recesses for the hob and the oven must
comply the indication given in Figs. 6 and
must be provided with openings to allow a
continuous supply of air.
Two possible solutions to avoid excessive
overheating are described in Fig. 7 and 8.
The electrical connection for the hob and
the oven must be carried out separately, for
safety reasons and also to allow the oven
to be easily removed from the unit, if
necessary.
Installation possibilities

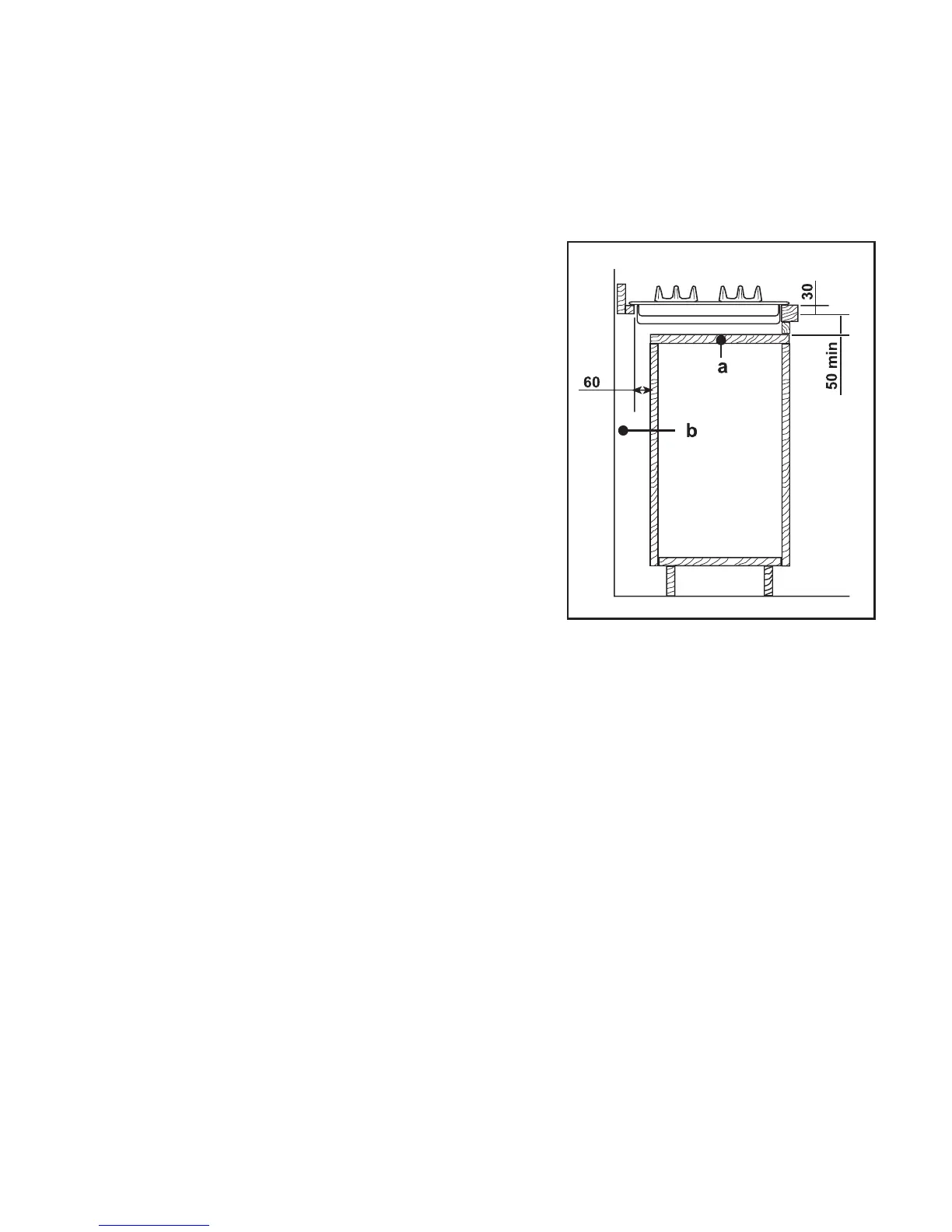

a) removable panel
b) space for connections
Fig. 5
