71
Fitting the hob to the
worktop
Before fitting the hob into the cut out, an
adhesive seal must be fitted to the underside
outside edge of the hob. It is essential that
no gaps are left in this seal in order to
prevent spillage near the hob seeping into
the cabinet below.
Proceed as follows:
1. Remove the pan supports, the burner
caps and crowns and turn the hob upside
down, taking care that the spark plugs
and the thermocouples are not damaged
in this operation.

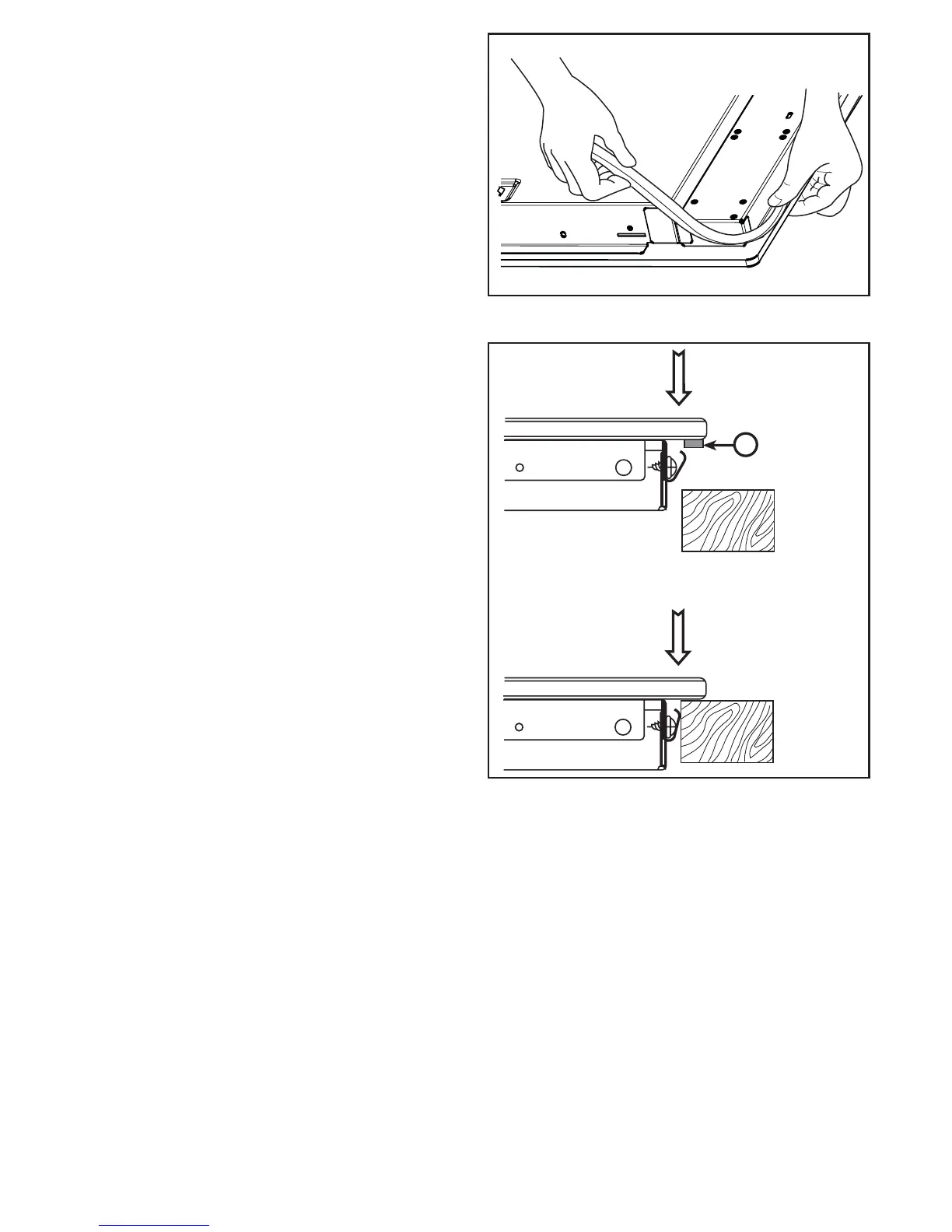

2. Place the sealing gasket all around the
glass top edge as shown in Fig. 3.
3. Fit the hob in the cut out and push it
down until the glass top and the worktop
make contact, as shown in Fig. 4. The
side springs ensure centering.
"
A) Seal Fig. 4
A
Fig. 3
