Building In
The hob is designed to be inserted in
modular kitchen units with depth of 550 -
600 mm and having proper characteristics.
The building-in is also possible in modular
units with a 600 mm width: in this case,
the cut-out in the work top must be carried
out as shown in Fig. 2.
The worktop must be at least 30 mm thick.
If the worktop is thicker than 50 mm, it is
possible to install the hob on modular units
of any width.
Any unit (furniture unit, household
appliance, etc..) placed near the unit which
the hob is built in, shall not exceed the
worktop height.
A minimum clearance of 100 mm
between the cut-out in the
worktop and any side wall
exceeding the worktop height
must be observed.

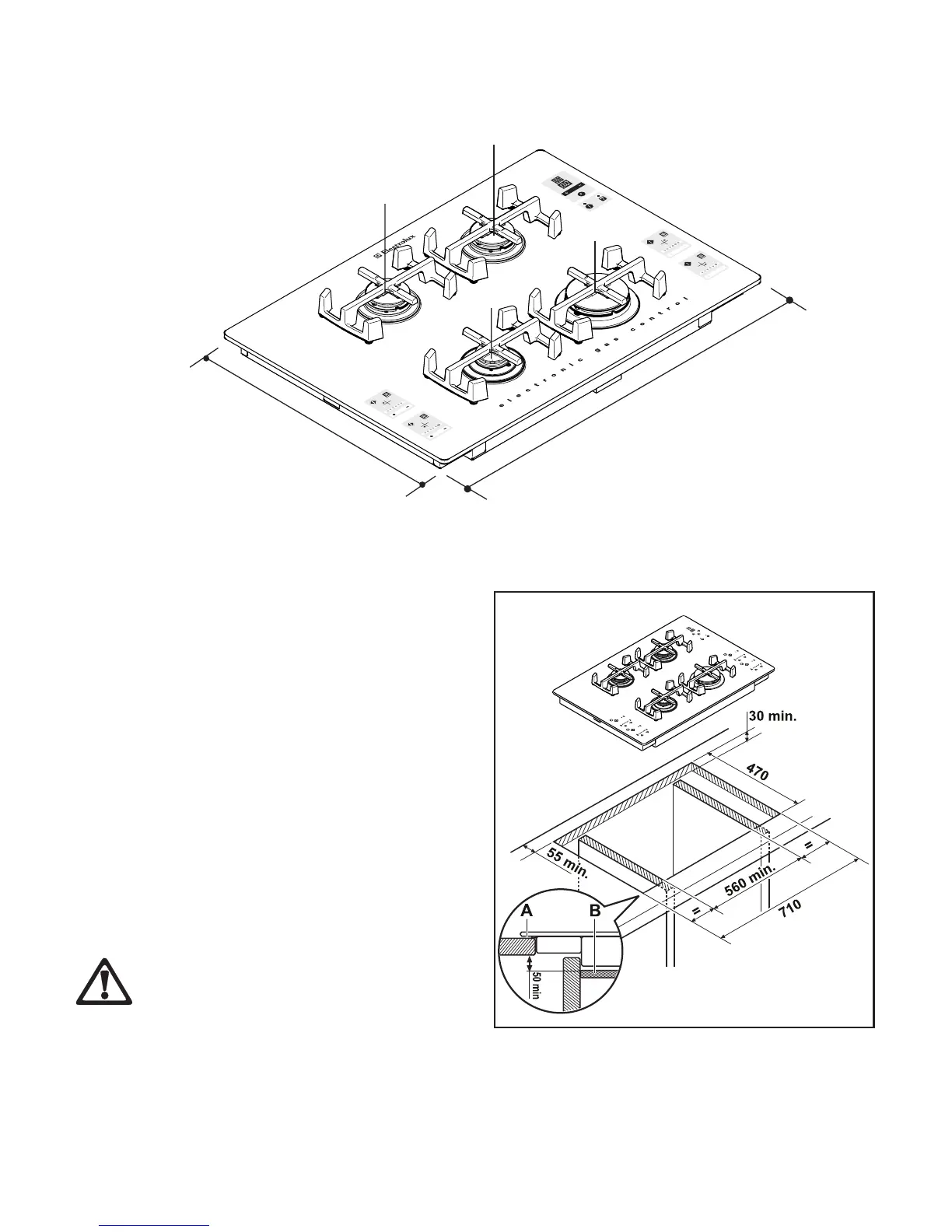

The hob dimensions and the cut-out
dimensions are given in fig. 1 and 2.
Fig. 2
Dimensions are given
in millimetres
A) Worktop
B) Removable Panel
730
510
A
SR
SR
R
Fig. 1
A = Auxiliary burner
SR = Semirapid burner
R = Rapid burner
