INSTALLATION INSTRUCTIONS | SMART LINE BOILING PAN
30 DOC N° ST0 9183-02 EN | 10-2018
13. INSTALLATION OF PANS BACK TO BACK
To avoid a collision between pans when tilting,
check the distance between frames according
to the table below
13.1 Models: SM6B, SM6V, SM6P
Size Dimension
X + Y L
50 + 50 2180
50 + 80 2280
50 + 100 2350
50 + 150 2410
50 + 200 2480
50 + 300 2530
80 + 80 2405
80 + 100 2595
80 + 150 2595
80 + 200 2585
80 + 300 2635
100 + 100 2525
100 + 150 2585
100 + 200 2655
100 + 300 2705
150 + 150 2645
150 + 200 2715
150 + 300 2765
200 + 200 2785
200 + 300 2835
300 + 300 2885
13.2 Models: Boiling pan with the
option ice water cooling:
SV6I, SP6I
Size Dimension
X + Y L
50 + 50 2295
50 + 80 2425
50 + 100 2495
50 + 150 2555
50 + 200 2625
50 + 300 2675
80 + 80 2470
80 + 100 2600
80 + 150 2660
80 + 200 2740
80 + 300 2780
100 + 100 2670
100 + 150 2730
100 + 200 2800
100 + 300 2850
150 + 150 2795
150 + 200 2860
150 + 300 2910
200 + 200 2930
200 + 300 2980
300 + 300 3030

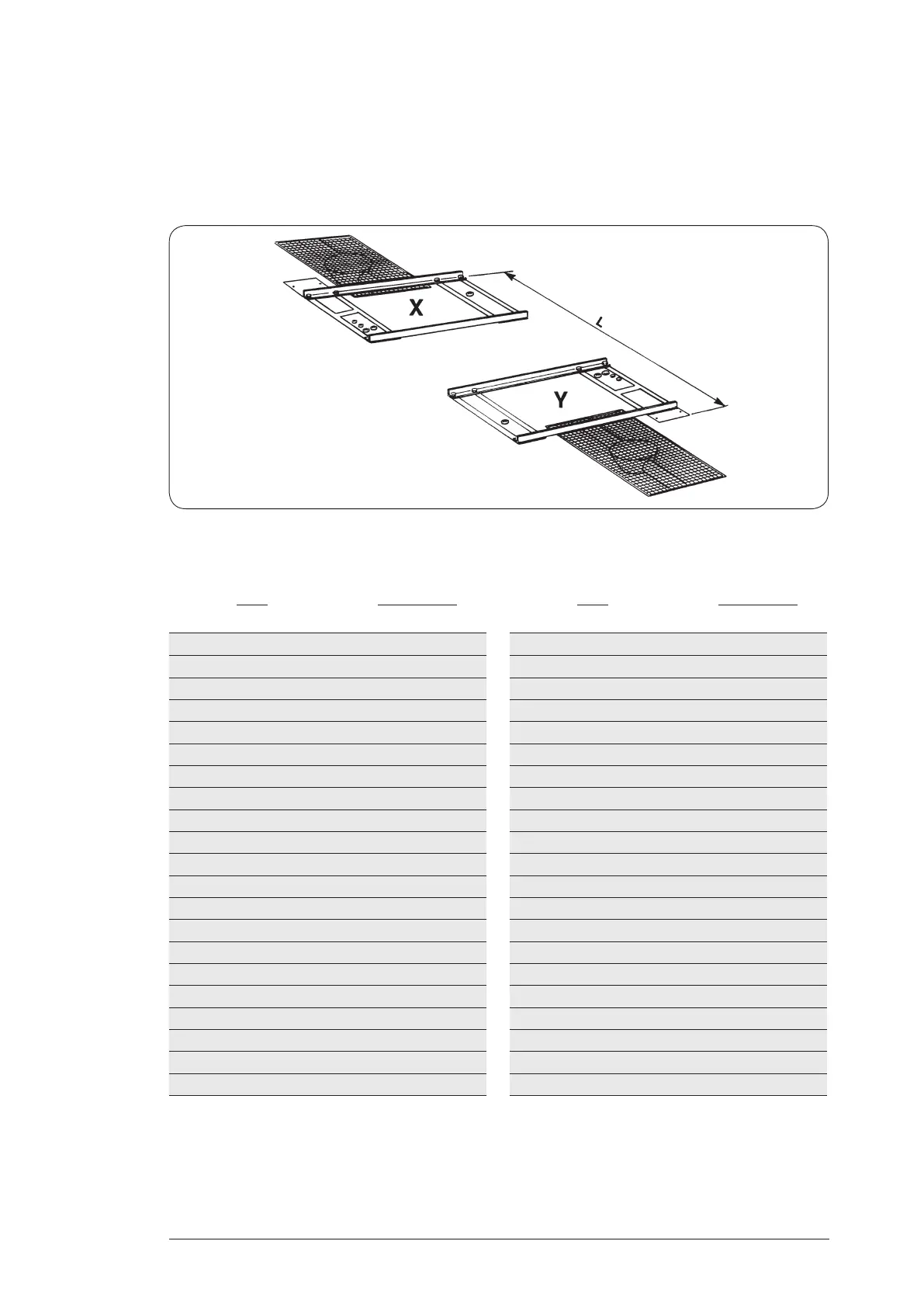

Fig. 18
