69
Exciter
Matrix
Echos6
Use instructions

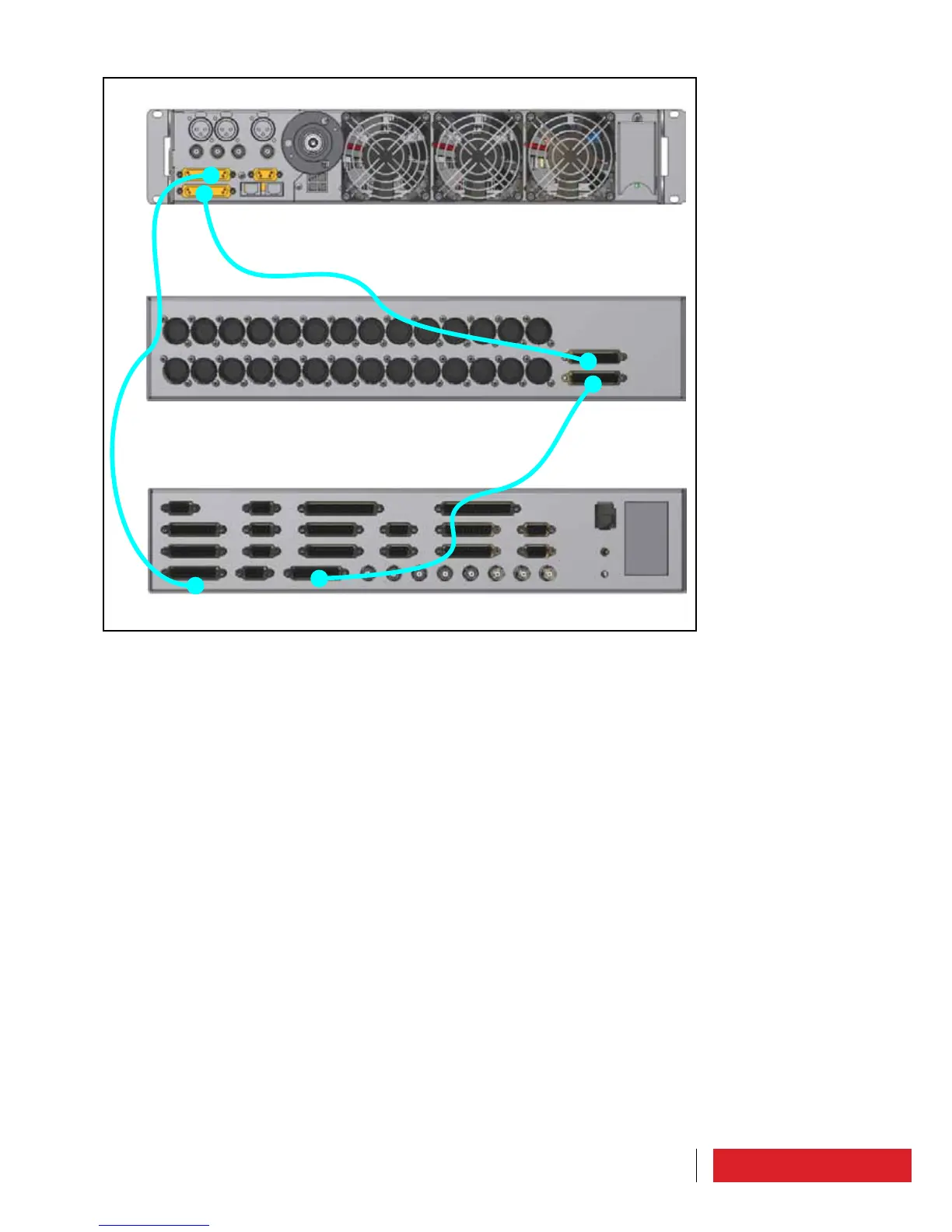

Connection mode if TX
reserve and audio matrix
7.4.4 Amplifier connection
This connection is where you need to increase the power transmission using a RF power
amplifier.
To use the ETG as an exciter of a higher power amplifier to connect the ETG RF output
connector to amplifier RF input connector through a RF coaxial cable, which is capable
of withstanding the maximum power of ETG. In addition to the RF connection, should be
included a cable to insert in TC/TS connector, DB25, on the rear panel.
This cable ships on demand and it’s important check exciter functionality of the in the
case of amplifier protection (eg exciter shutdown in case of ROS / VSWR amplifier pro-
tection).
To details on the pin out see “External connectors description” paragraph in “Product
description” section.
Warning : to RF connection the machine must be turned off.
For more information, please see “Amplifier” manuals.
