Emerson Digistart IS1x0043B series User Manual

Safety
Information
Rating
Data
Mechanical
Installation
Electrical
Installation
Keypad
and
Status
Quick Start
Commissioning
Operation
Programming
Diagnostics
Application
Examples
Technical
Data
Maintenance
Options
Digistart IS User Guide 35
Issue: 4 www.controltechniques.com
6. Quick Start Commissioning
This procedure is written from default parameter settings as the starter would be delivered from the factory.
WARNING
Always apply control voltage before (or with) mains voltage.
6.1 Control wiring

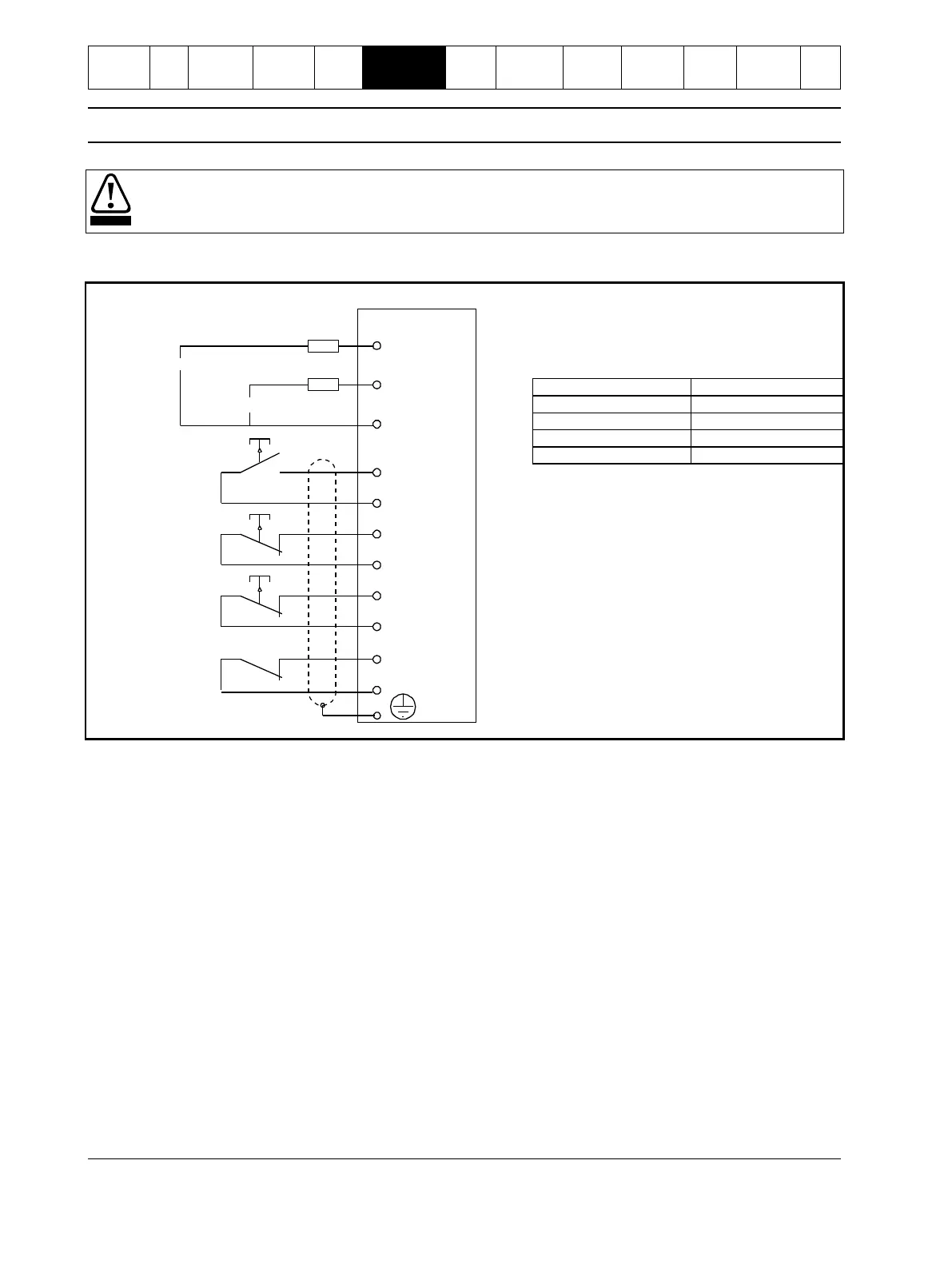

Figure 6-1 Control terminals for basic connection
08335.A
DI2
+24V
DI3
+24V
DI4
+24V
+24V
CSR
CSL
CSH
DI1
110-210 VAC
+10%
-15%
220-440 VAC
+10%
-15%
F1
E
CSH-CSR or CSL-CSR
Control supply
DI1, +24V
Start
DI2, +24V
Stop
DI3, +24V
Reset
F1
Fuse (optional)
For keypad control, the soft starter requires:
 control supply connections (terminals CSH, CSL, CSR depending on the control voltage)
 programmable input A (DI4, +24V) must be closed or Pr 3A Input A Function must be changed from Emergency Stop
