10.8 Slip-ring motor
The Digistart IS can be used to control a slip-ring motor, using rotor resistance.

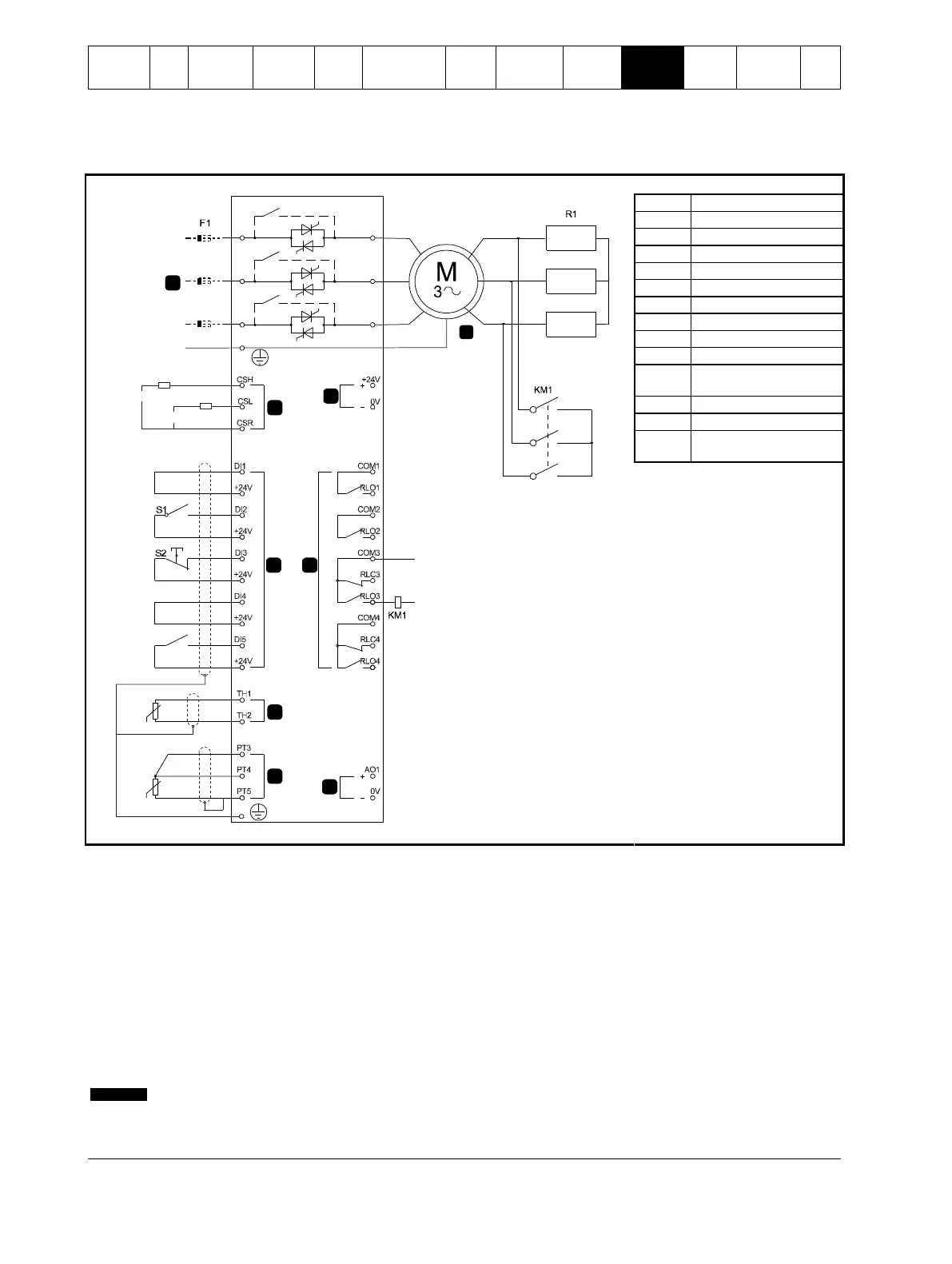

Figure 10-8 Slip-ring motor
08539.B
7
6
5
4
3
2
1
9
8
E
110-210 VAC
+10%
-15%
220-440 VAC
+10%
-15%
6/T3
2/T1
4/T2
5/L3
3/L2
1/L1
E
1
Control voltage
2
Remote control inputs
3
Motor thermistor input
4
RTD/PT100 input
5
24 Vdc output
6
Relay outputs
7
Analog output
8
Three-phase supply
9
Slip-ring induction motor
KM1
Changeover contactor
F1
Semiconductor fuses
(optional)
S1
Start/stop contact
S2
Reset contact
R1
Rotor resistance
(external)
Parameter settings:
 Pr 4D Relay B Action
 Select 'Changeover Contactor'
 Pr 4E Relay B On Delay
 Set this to the maximum time (5m:00s).
 Pr 13A Motor Data-1 Ramp
 Select 'Dual Ramp' (for slip-ring induction motor control)
 Pr 13D Changeover Time
 Default setting is 150 milliseconds. Set this to a value just greater than the changeover contactor (KM1) pole closing
time.
 Pr 13C Slip Ring Retard
 Default setting is 50%. Set this parameter to a value which is high enough to cause the motor to instantly accelerate
once the rotor resistance (R1) has been bridged out and low enough to avoid a motor current pulse.
NOTE
For this installation to function correctly, only use the primary motor settings. Only use the constant current start method
(Pr 2A Start Mode).
