Emerson PNC001-A Series Application Guide

Application Guide Chapter 4
GFK-2928C Oct 2019
Toolchest Components 11
Place into Program Blocks
When function blocks are dragged from the Toolchest into the Program Blocks collection,
PAC Machine.
Edition may prompt for an entry into which a variable name must be provided.

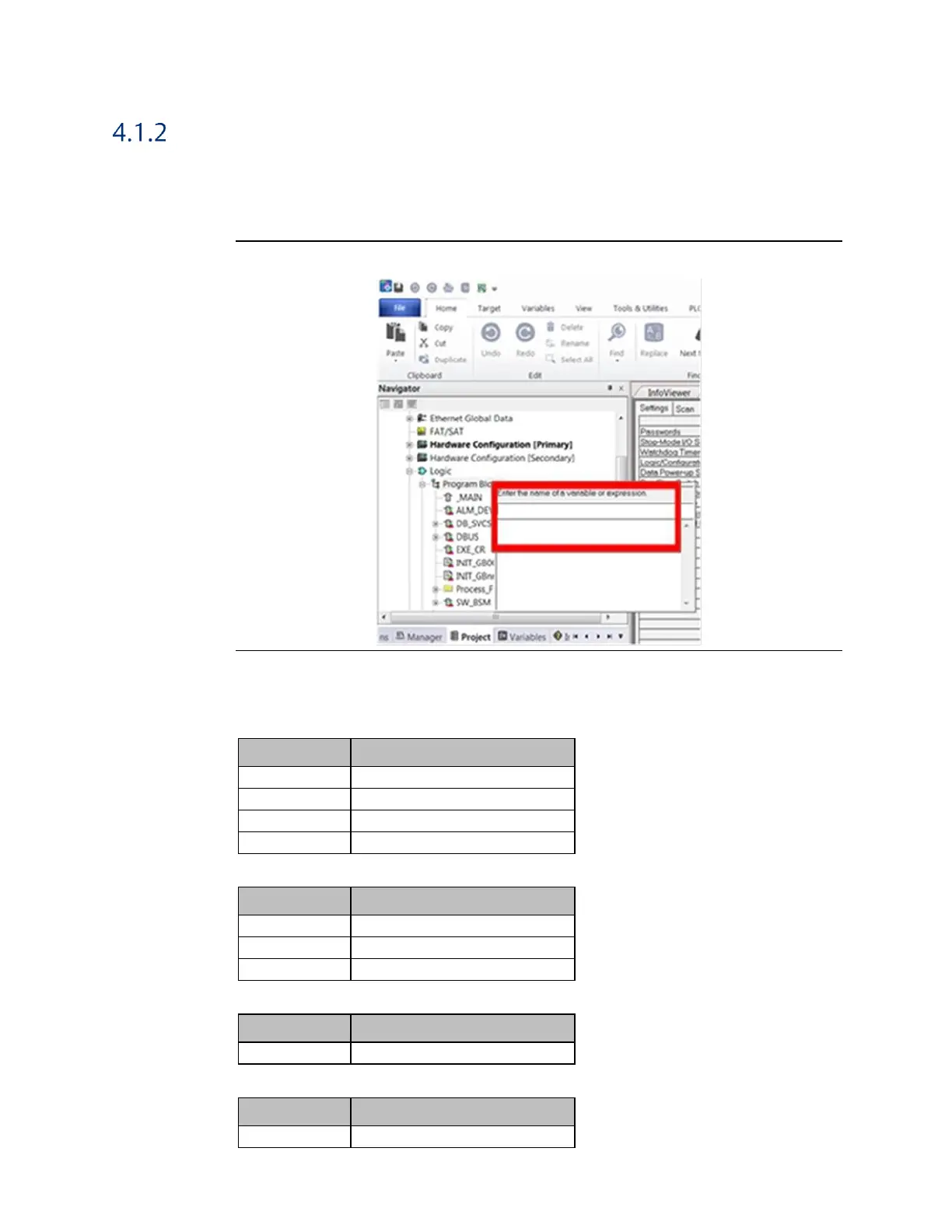

Figure 9: PAC Machine Edition Form: Enter Variable Name
The blocks and corresponding entries are as follows:
Group03 – LDs
Block
Variable Name Entry
INIT_GBnn
<no name required>
INIT_GB00
IGB00
ALM_DEV
DEV
EXE_CR
CR01
Group04 – LDs
Block
Variable Name Entry
DB_SVCS
DBS
SW_BSM
SW01
AUTO_SW
Aut_Sw
Group05 – LDs
Block
Variable Name Entry
DBUS
DB00
Group06 – LDs
Block
Variable Name Entry
BUSSES
GBusses
