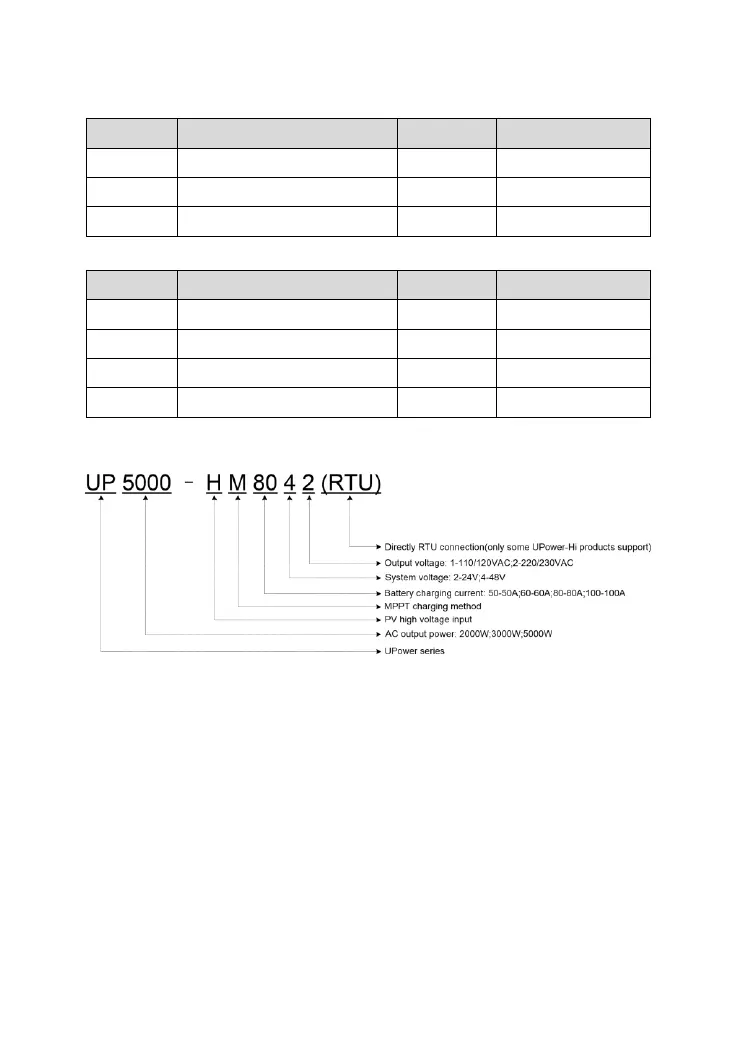

10
DB9 pin definition for base UP-Hi series:
Pin
Definition
Pin
Definition
1-4
NC
7
RS-485-A
5
GND
8
RS-485-B
6
NC
9
5VDC
DB9 pin definition for RTU-type UP-Hi series:
Pin
Definition
Pin
Definition
1-2
NC
6
NC
3
12VDC
7
RS-485-A
4
GND2(12VDC power ground)
8
RS-485-B
5
GND1(5VDC power ground)
9
5VDC
1.3 Naming rules
