17

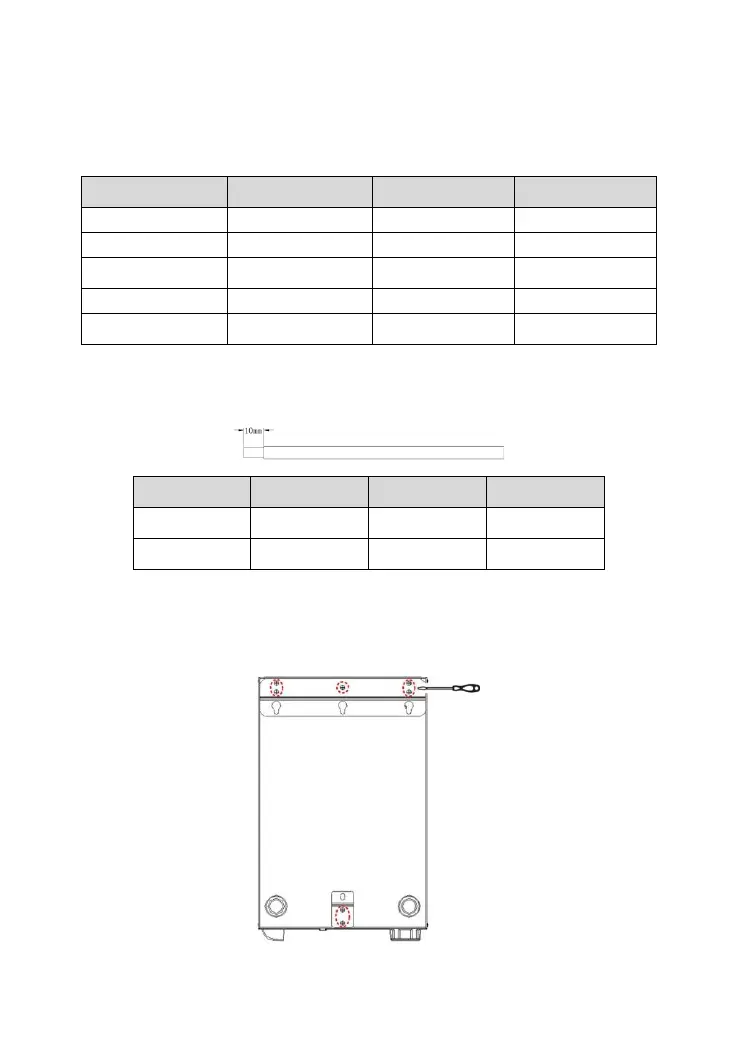

4) Utility input
 Recommended wire size of the utility input and the circuit breaker is as
below.
Model
Utility wire size
Circuit breaker
Torque
UP2000-HM6022
3.4mm
2
/12AWG
2P—16A
1.2N.M
UP3000-HM5041
6mm
2
/9AWG
2P—40A
1.2N.M
UP3000-HM5042
4mm
2
/11AWG
2P—25A
1.2N.M
UP3000-HM10022
4mm
2
/11AWG
2P—25A
1.2N.M
UP5000-HM8042
6mm
2
/9AWG
2P—40A
1.2N.M
 Making the connection cable of the utility input:
Strip two connection wires of the utility input for about 10 mm.
Symbols
Abbreviation
Name
Color
L
LINE
Live wire
Brown/black
N
Neutral
Neutral line
Blue
2.3 Determine the installation position
Step1: Remove mounting plate 1 and mounting plate 2 behind the inverter/charger
with a screwdriver.
