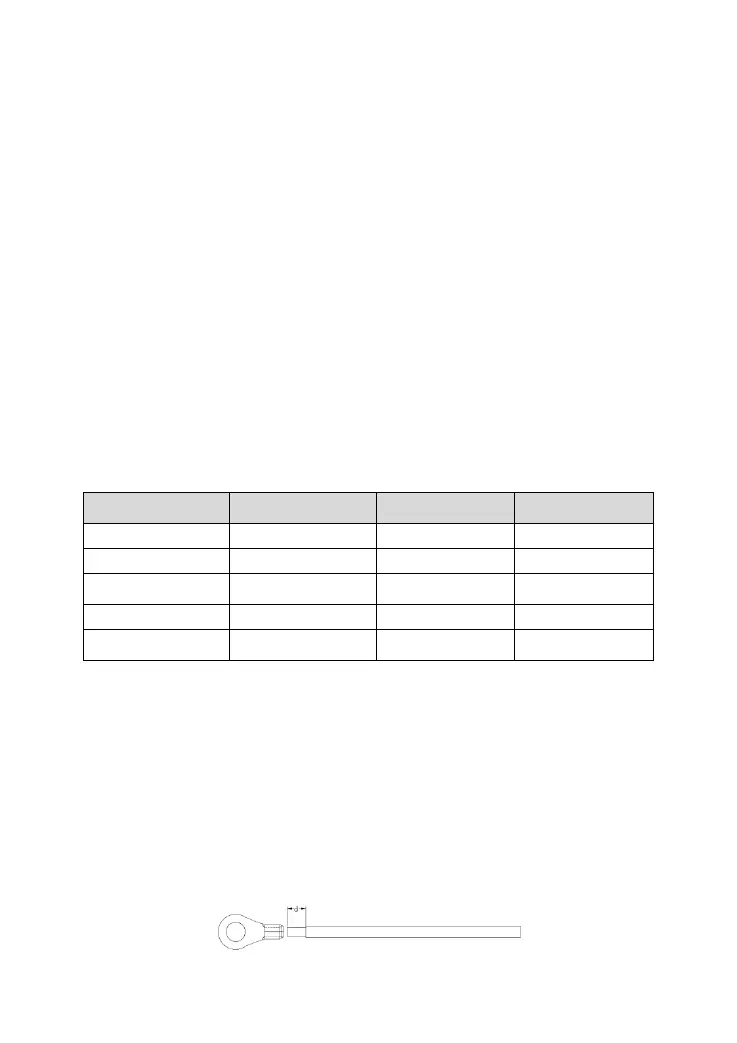

Epever UP5000-HM8042 - Pre-Installation Checks

14
 Both utility input and AC output are of high voltage, do not touch the wiring
connection to avoid electric shock.
 To prevent injury, do not touch the fan while it is working.
2.2 Before installation
2.2.1 Check the pack list
 Inverter/charger 1 pcs
 User manual 1ps
 Included accessories 1pcs(Details refer to the "Accessories list" file shipped with
the inverter/charger.)
2.2.2 Prepare modules
1) Battery
 Recommended wire size of the battery and the circuit breaker is as below.
Model
Battery wire size
Circuit breaker
Ring terminal
UP2000-HM6022
20mm
2
/4AWG
2P—125A
RNB38-8S
UP3000-HM5041
16mm
2
/5AWG
2P—100A
RNB22-8
UP3000-HM5042
16mm
2
/5AWG
2P—100A
RNB22-8
UP3000-HM10022
35mm
2
/1AWG
2P—200A
RNB38-8S
UP5000-HM8042
35mm
2
/1AWG
2P—200A
RNB38-8S
 Making the battery connection wire
Step1: Ring terminal 2pcs (included accessories).
Step2: Battery positive and negative connection wires 2 pcs(red +, black -), the wire
length is determined according to the actual requirement of the customer.
Step3: Strip one end of the battery connection wire for about d mm (size d is
determined according to the ring terminal).
Step4: Pass the exposed wire through the ring terminal, and secure the wire firmly
with a wire clamp.
