Epson EB-2247U User Manual

Projector Parts and Functions
15
gg Related Links
• "Installing a Security Cable" p.84

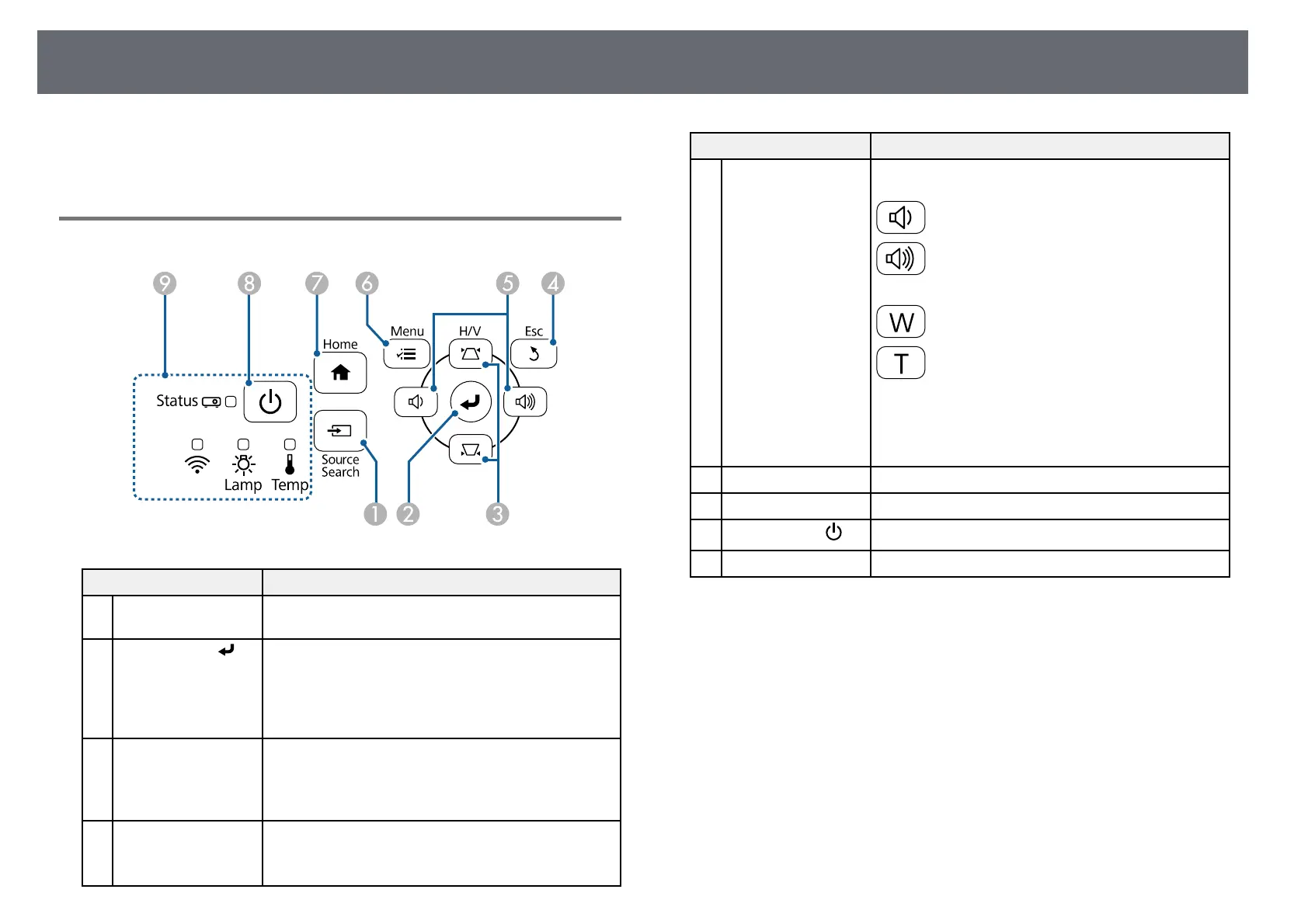

Projector Parts - Control Panel
Name Function
A
[Source Search]
button
Switches to the next input source.
B
[Enter] button [ ] Enters the current selection and moves to the next level
while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
C
Keystone adjustment
buttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
D
[Esc] button Stops the current function.
Moves back to the previous menu level while
displaying the projector's menu.
Name Function
E
Volume buttons and
arrow buttons
Wide/Tele buttons
EB‑‑2247U/EB‑‑2142W/EB‑‑2042/EB‑‑990U/EB‑‑980W/E
B‑‑970/EB‑‑109W/EB‑‑108/EB‑‑107/EB‑‑W39/EB‑‑X39:
: Decreases the volume.
: Increases the volume.
EB‑‑S39:
: Enlarges the size of the projected image.
: Reduces the size of the projected image.
Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
F
[Menu] button Displays and closes the projector's menu.
G
[Home] button Displays and closes the Home screen.
H
Power button [ ]
Turns the projector on or off.
I
Indicators Indicates the projector's status.
gg Related Links
• "Input Signal Settings - Signal Menu" p.127
• "Home Screen" p.35
• "Projector Indicator Status" p.167
• "Correcting the Image Shape with the Keystone Buttons" p.45
• "Resizing the Image with the Buttons" p.50

Epson EB-2247U Specifications

General

Matrix size	0.67 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.5 - 8.9 m
Vertical scan range	200 - 240 Hz
Projection technology	3LCD
Contrast ratio (dynamic)	-
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2410 ANSI lumens
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	- W
Service life of light source	5500 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.39 - 2.23:1
Zoom capability	Yes
Focal length range	23 - 38.4 mm
Aperture range (F-F)	1.5 - 2
3D	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Dynamic, Photo, Presentation, sRGB
Composite video in	1
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	29 dB
RMS rated power	16 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	331 W
Power consumption (economy mode)	227 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Epson Projector Management Software, EasyMP Multi PC Projection
Pallet width	800 mm
Pallet height	6870 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	282 mm
Width	309 mm
Height	90 mm
Weight	3200 g
Package depth	390 mm
Package width	170 mm
Package height	385 mm
Package weight	4.39 g
