Projector Connections
26
e
Connect the other end to the projector's Audio port.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
s Signal > Advanced > Input Signal
gg Related Links
"Input Signal Settings - Signal Menu" p.127
"Projector Setup Settings - Extended Menu" p.131

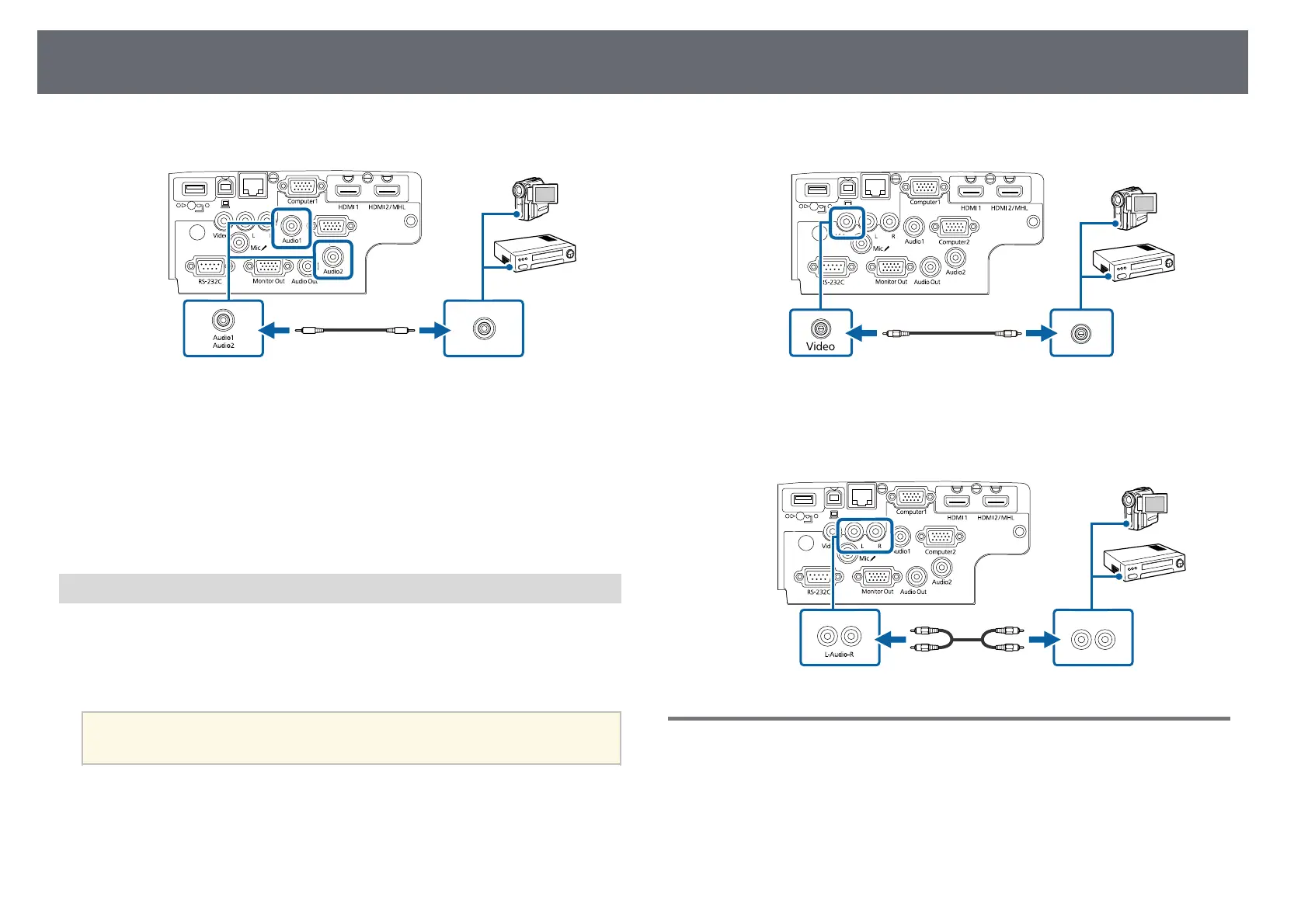

Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.
b
Connect the other end to the projector's Video port.
c
Connect the audio cable to your video source's audio-out ports.
d
Connect the other end to the projector's L-Audio-R ports.
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to
the projector.
gg Related Links
"USB Device Projection" p.27
"Connecting to a USB Device" p.27
