Epson EB-2247U User Manual

Saving a User Pattern
76
There are four types of patterns pre-registered in the projector, such as ruled
lines and grid patterns. You can project these patterns to aid in presentations
using the Pattern Display settings in the Settings menu.
You can also save the image that is currently being projected as a User
Pattern.
a
Once you save a User Pattern, the pattern cannot be returned to the
factory default.
a

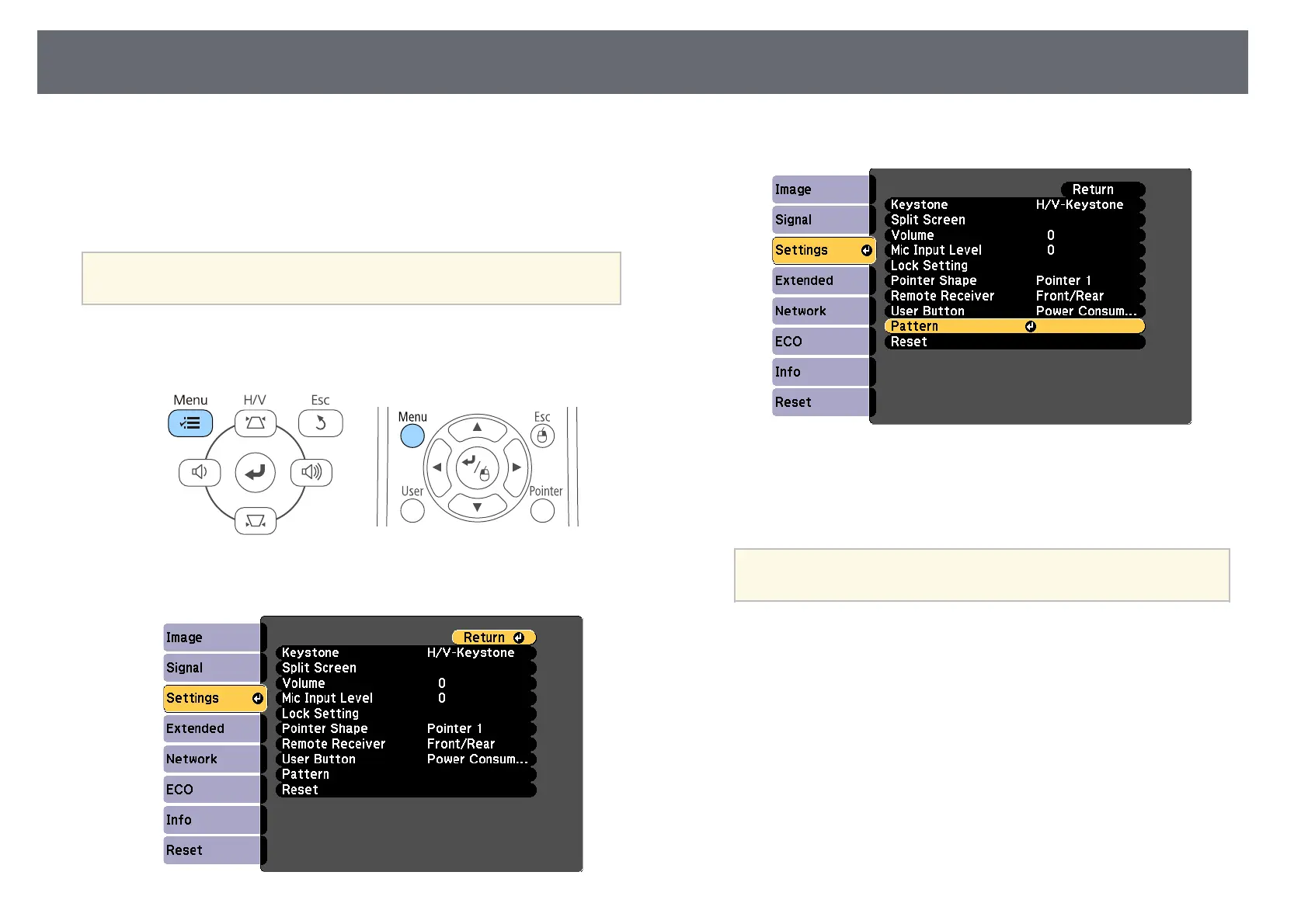

Project the image you want to save as the User Pattern, and then press
the [Menu] button on the control panel or remote control.
b
Select the Settings menu and press [Enter].
c
Select Pattern and press [Enter].
d
Select User Pattern and press [Enter].
You see a prompt asking if you want to use the displayed image as a
User Pattern.
a
Adjustments such as Keystone, E-Zoom, or Aspect are
temporarily cancelled when you select User Pattern.
e
Select Yes and press [Enter].
You see a prompt asking if you want to save the image as the User
Pattern.
f
Select Yes and press [Enter].
You see a completion message.

Epson EB-2247U Specifications

General

Matrix size	0.67 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.5 - 8.9 m
Vertical scan range	200 - 240 Hz
Projection technology	3LCD
Contrast ratio (dynamic)	-
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2410 ANSI lumens
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	- W
Service life of light source	5500 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.39 - 2.23:1
Zoom capability	Yes
Focal length range	23 - 38.4 mm
Aperture range (F-F)	1.5 - 2
3D	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Dynamic, Photo, Presentation, sRGB
Composite video in	1
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	29 dB
RMS rated power	16 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	331 W
Power consumption (economy mode)	227 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Epson Projector Management Software, EasyMP Multi PC Projection
Pallet width	800 mm
Pallet height	6870 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	282 mm
Width	309 mm
Height	90 mm
Weight	3200 g
Package depth	390 mm
Package width	170 mm
Package height	385 mm
Package weight	4.39 g
