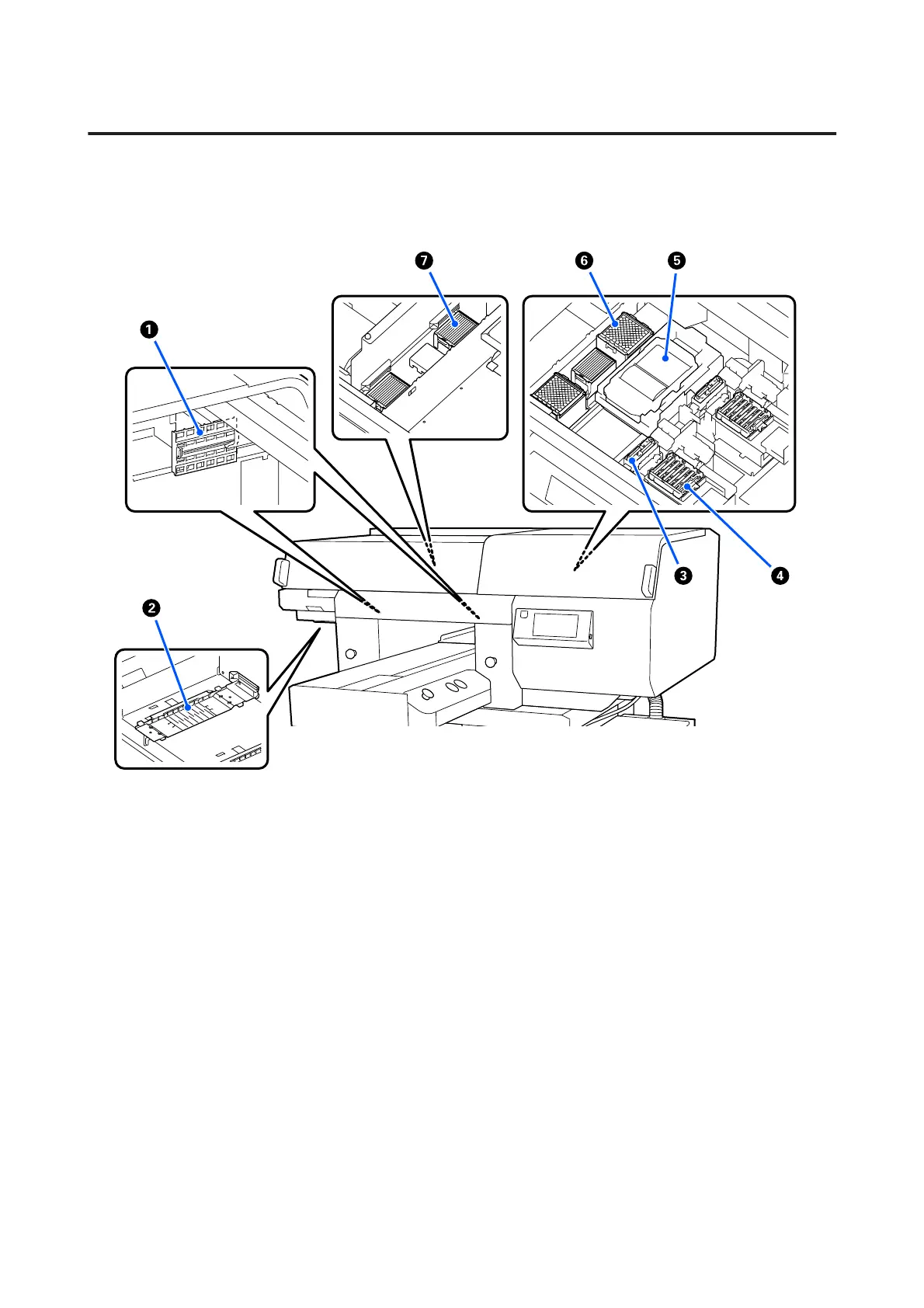

Interior
Dirt on any of the following parts may reduce print quality. Regularly clean and replace these parts as described in the
reference pages shown for the following items.
A Sensor Cover (2 places, left and right)
They protect the sensors, which are on the left and right sides of the opening and detect the position of the platen, so
they do not get dirty. Clean them if a message is displayed.
U “Cleaning the Sensor Cover” on page 81
B Print Head
The print head prints by moving left and right while emitting ink. There are two print heads, one for white and one
for colors. When nozzles remain clogged, even after doing Head Cleaning, clean them.
U “Clean around the print head and the edges of the metal” on page 83
C Suction Cap
Sucks out the ink during head cleaning to unclog the nozzles. There are two suction caps, one for white and one for
colors. Clean them if a message is displayed.
U “Cleaning the Suction Cap” on page 85
SC-F3000 Series User's Guide
Introduction
12
