EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124
page 9 of 46
2.3 Description of EV3K01

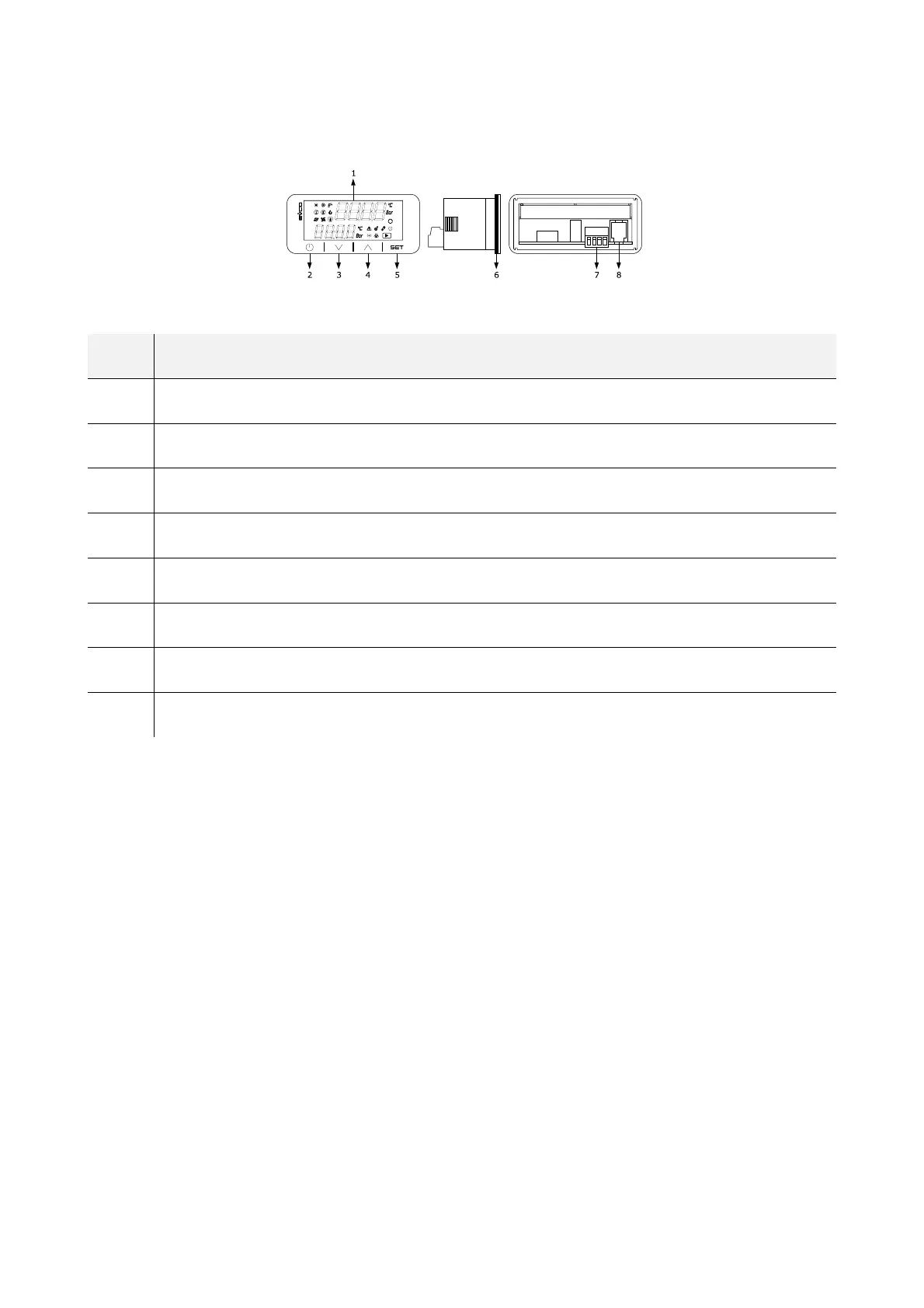

The picture below shows the layout of the EV3K01.
The table below describes each part of the EV3K01.
PART DESCRIPTION
1 Double row LED display, with decimal point and function icons
2 On/Off key, subsequently also called the On/Stand-by key
3 Decrease key, subsequently also called the Down key
4 Increase key, subsequently also called the Up key
5 Setting key, subsequently also called the Set key
6 Seal
7 Male + female plug-in screw terminal block for cabling for the power supply and the powered INTRABUS port
8 Not used
For more information see subsequent sections.
